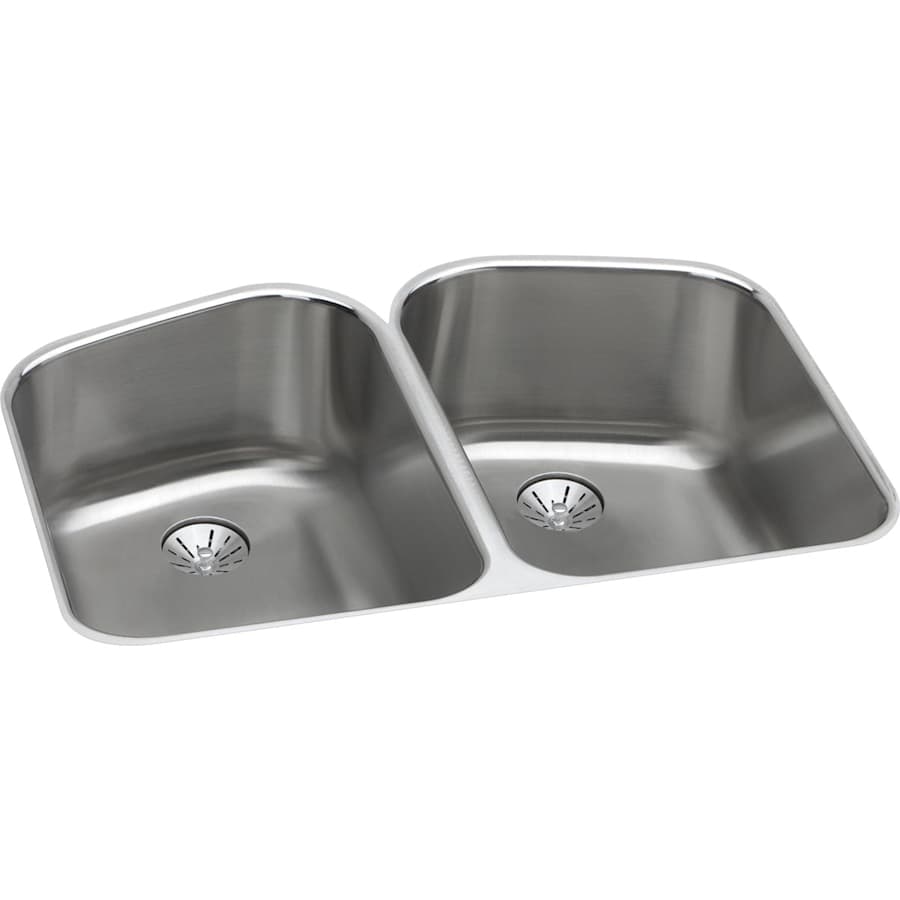

Elkay ELUH32229PD Features:
Constructed of 18-gauge T-304 grade stainless steel
Double basin sink with a 50/50 split increases versatility
Designed for undermount installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Rear drain location increases storage space underneath
Stainless steel perfect drain assemblies included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.
Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of this sink. It eliminates the gap around the drain by doing away with the sink collar. This makes for a cleaner sink and expands your usable work space on the sink floor. Crumbs and gunk have nowhere to go but down the drain!
Lustertone™ Finish: Lustertone sinks provide a vibrant, lustrous, and dependable finish. A fine linear grain is created by machine, and then hand buffed in a multistep process, creating a long lasting and repairable finish.

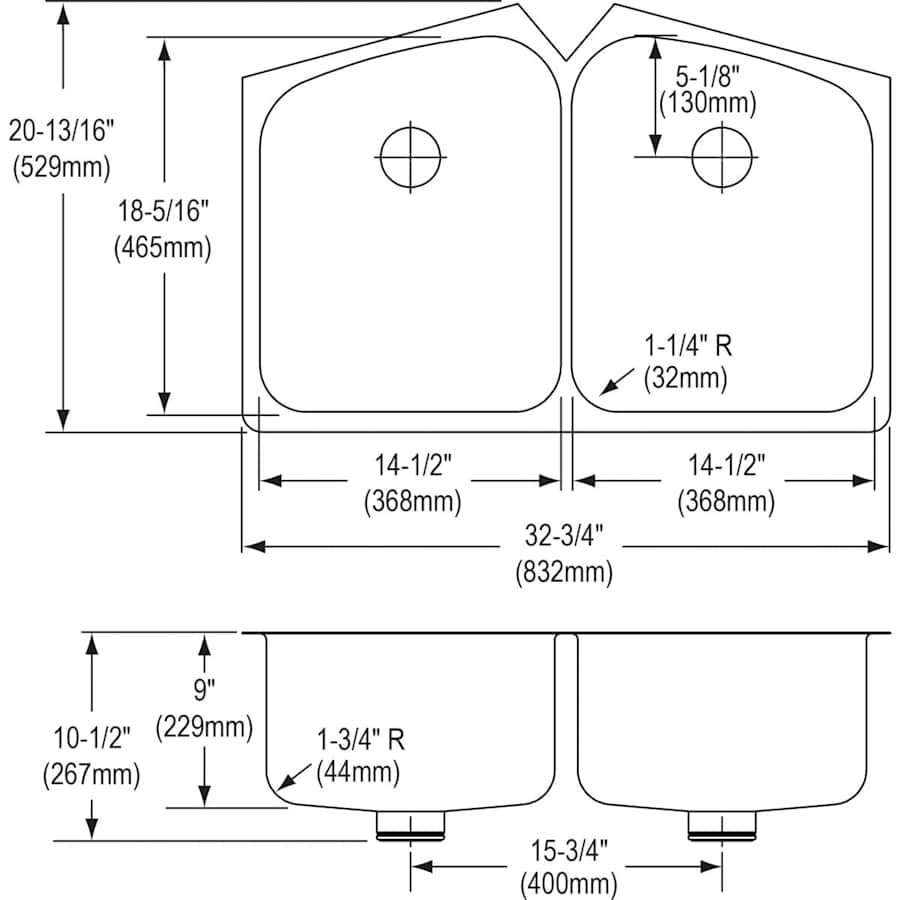

Elkay ELUH32229PD Specifications:
Height: 9″ (measured from bottom of sink to top of rim)
Length: 32-3/4″ (measured from left outer rim to right outer rim)
Width: 21-13/16″ (measured from back outer rim to front outer rim)
Basin Depth (left): 9″ (measured from center of basin to rim)
Basin Length (Left): 14-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Left): 18-7/16″ (measured from back outer rim to front outer rim)
Basin Depth (Right): 9″ (measured from center of basin to rim)
Basin Length (Right): 14-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Right): 18-7/16″ (measured from back outer rim to front outer rim)
Installation Type: Undermount
Minimum Cabinet Size: 36″
Basin Split: 50/50
Drain Connection: 3-3/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 9 in. |
| Length | 32.75 in. |
| Product Weight | 21 lbs. |
| Width | 21.8125 in. |
| Nominal Length | 33 in. |
| Nominal Width | 22 in. |
| Backplate Depth | 9 in. |
| Drain Connection | 3.375 in. |
| Faucet Centers | 0 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 36 in. |
| Sink Length | 32.75 in. |
| Basin Depth (Left) | 9 in. |
| Basin Length (Left) | 14.5 in. |
| Basin Width (Left) | 18.3125 in. |
| Basin Depth (Right) | 9 in. |
| Basin Length (Right) | 14.5 in. |
| Basin Width (Right) | 18.3125 in. |
| Material | Stainless Steel |
| Overflow | No |
| Thermostat | Traditional, Transitional |
| Insulation Type | Undermount |
| Sink Shape | Rectangular |
| Drain Placement | Center, Rear |
| Number Of Bathers | 2 |
| Basin Split | 50/50 |
| Farmhouse | No |
| Sound Dampening | Yes |
| Apron Front | No |
| Stainless Steel Grade | 304 |
| ADA | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Collection | Gourmet |
| Certifications | UPC, ASME, CSA |
| Approved for Commercial Use | No |
| Series | Lustertone, Perfect Drain, Sound Guard |
| Faucet Included | No |
| Installation Hardware Included | No |
| Drain Assembly Included | Yes |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
