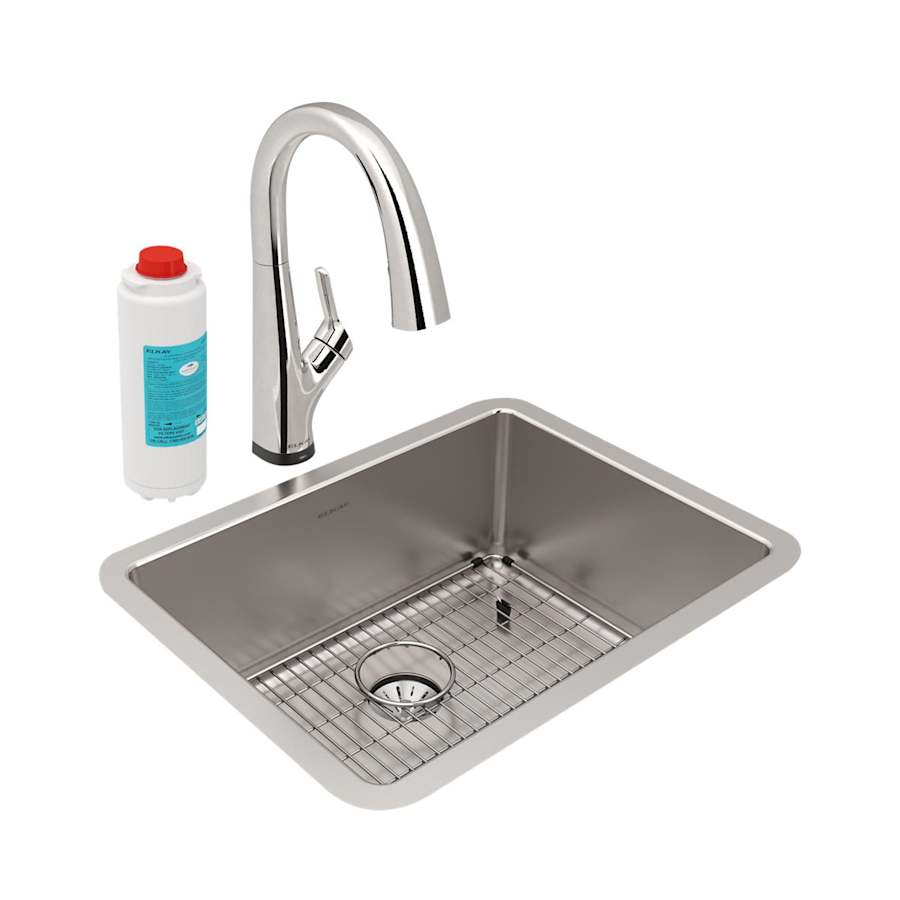

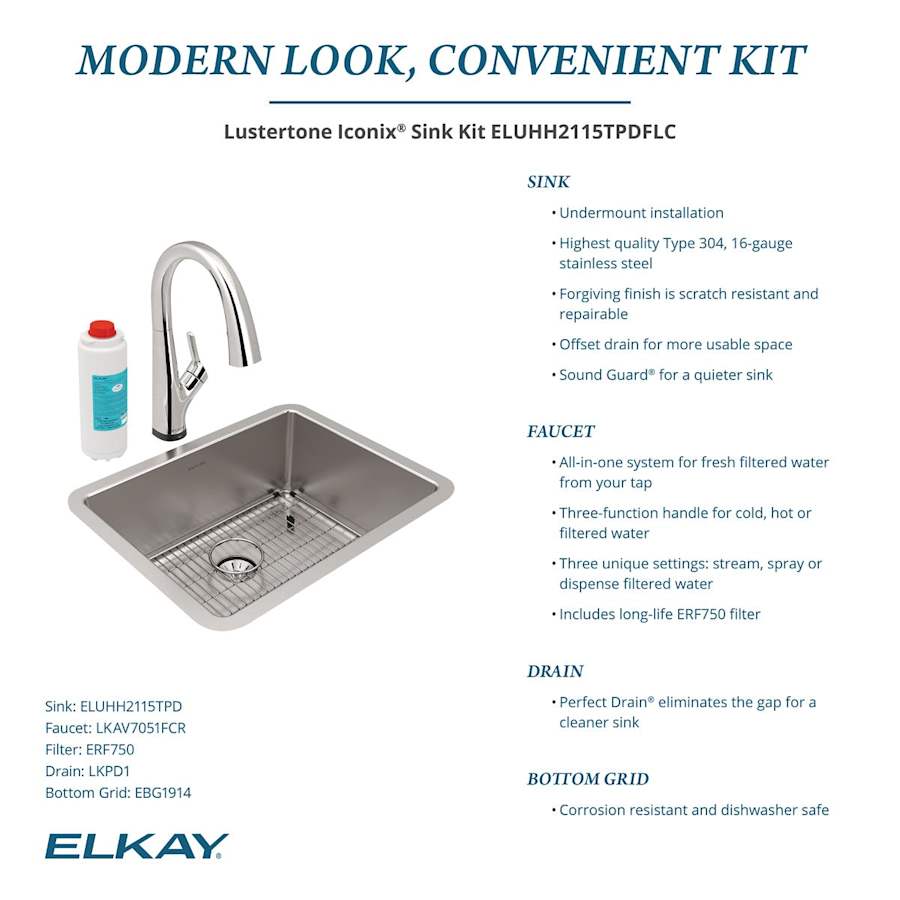

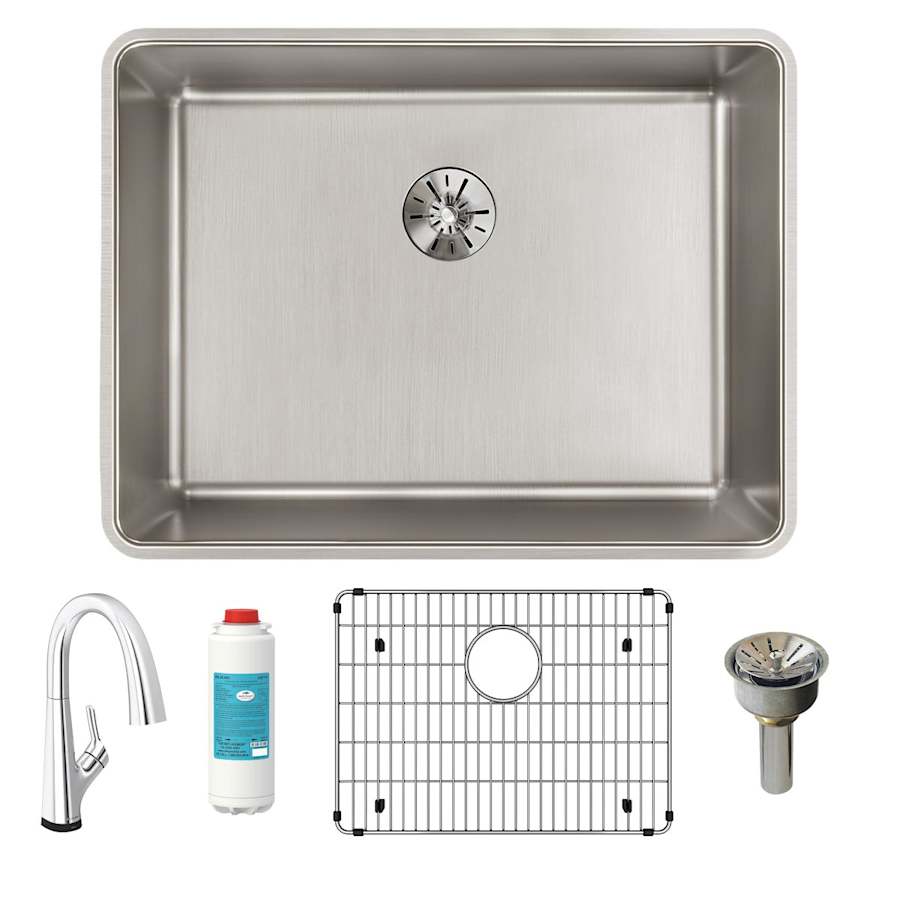

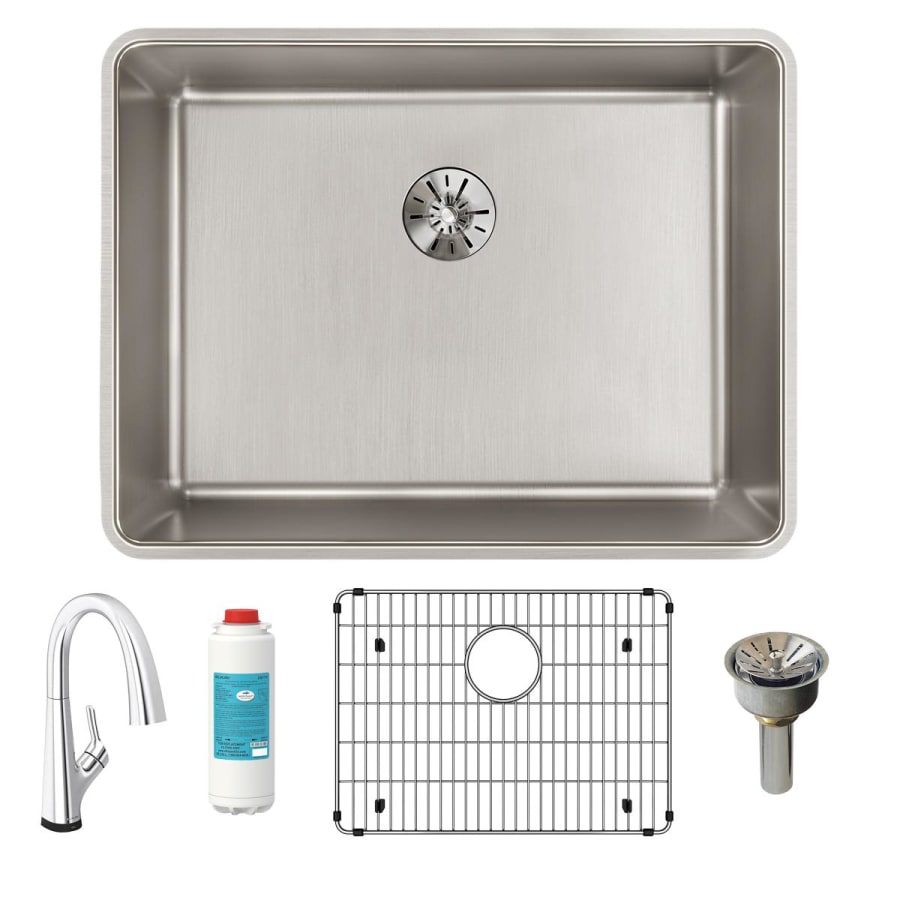

Elkay ELUHH2115TPDFLC Included Components:
23.5 undermount 1 basin stainless steel kitchen sink
Single Hole filtered kitchen faucet
Fitted basin rack
Coordinated basket strainers

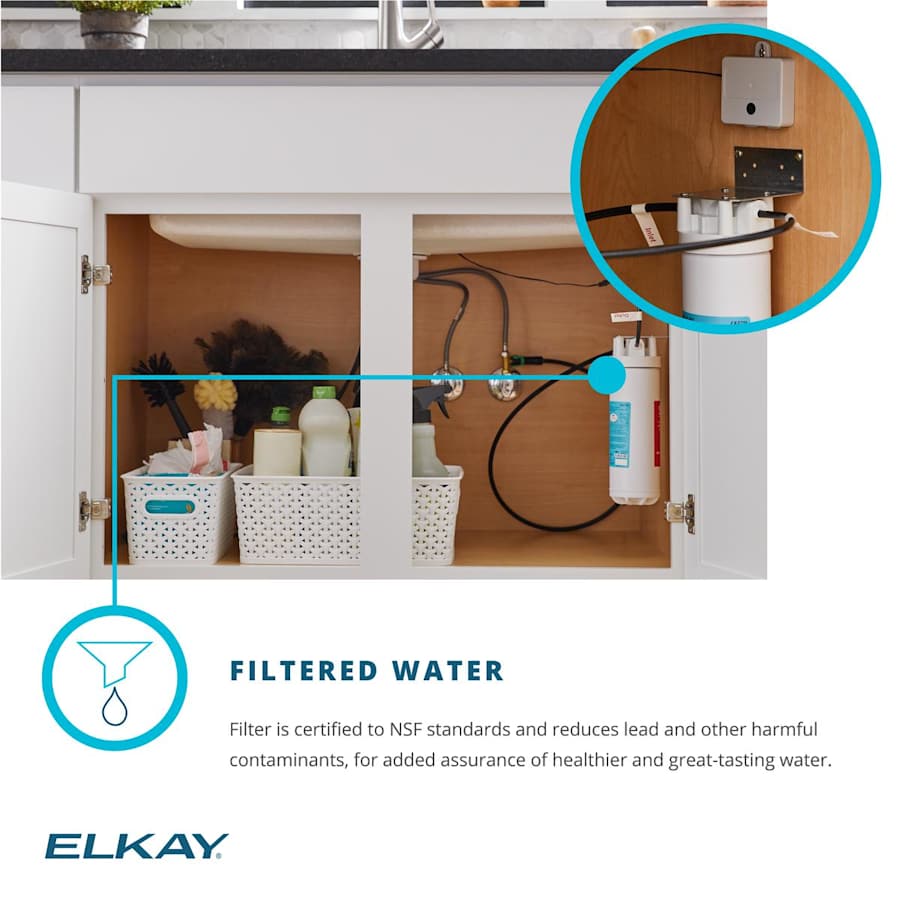

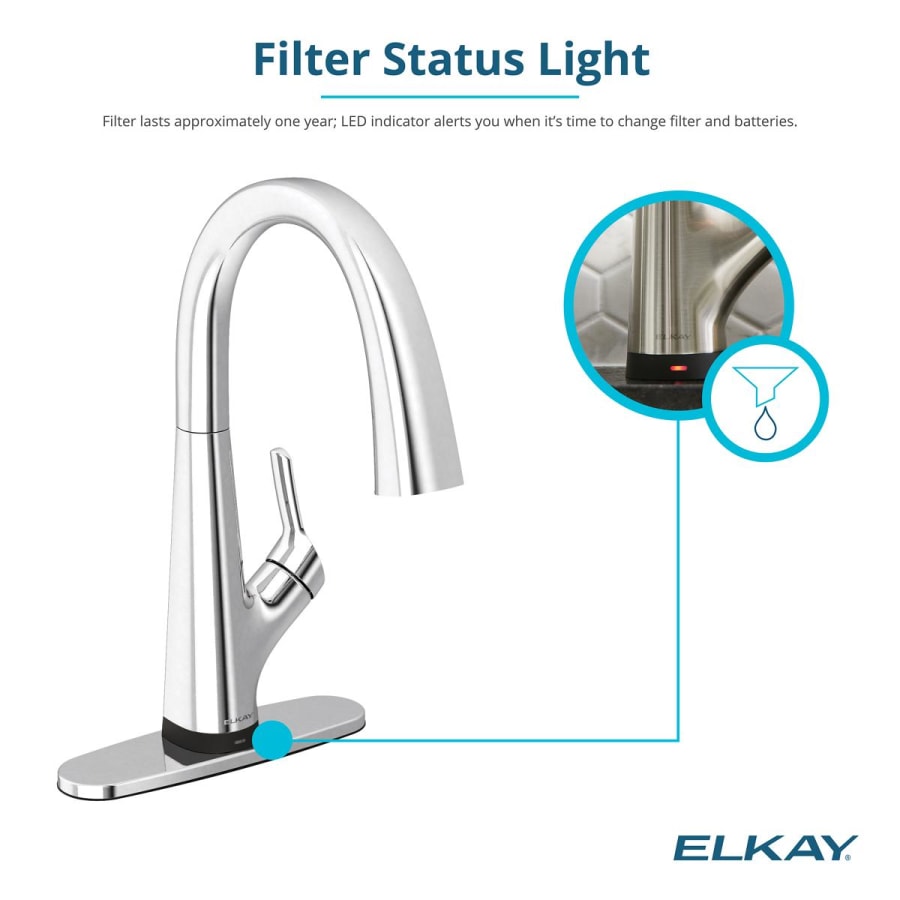

750 gallon residential water filter
Covered under Elkay’s limited lifetime warranty
Elkay Sink Features:

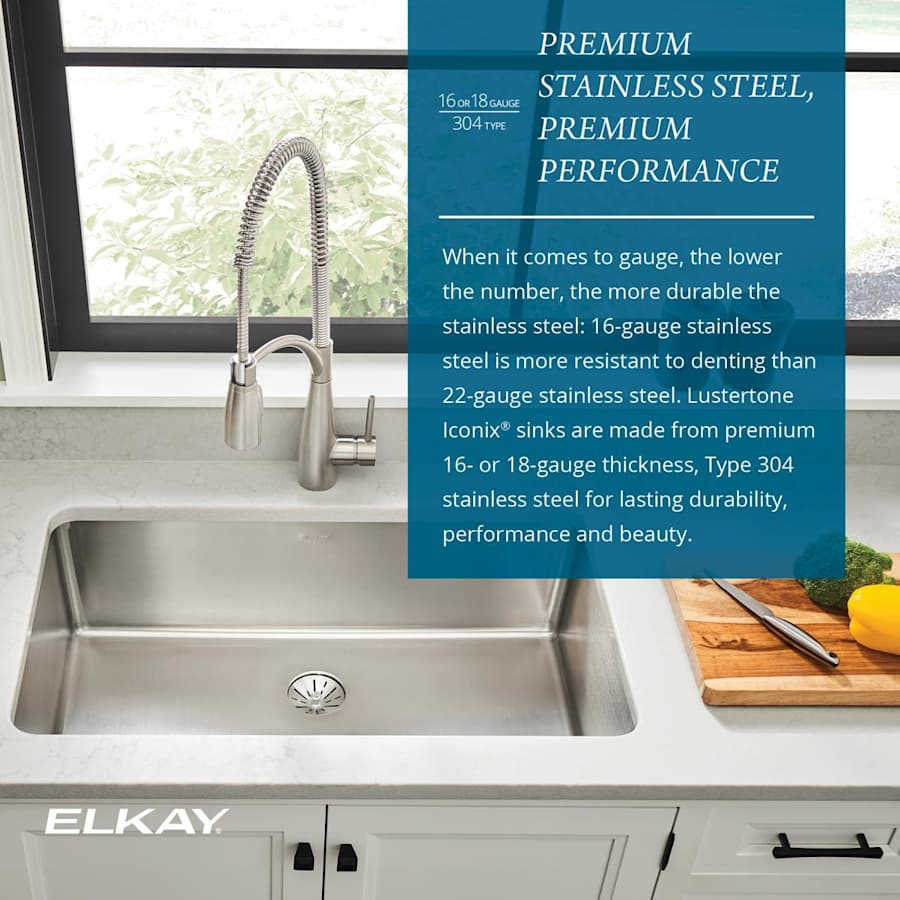

Constructed of stainless steel

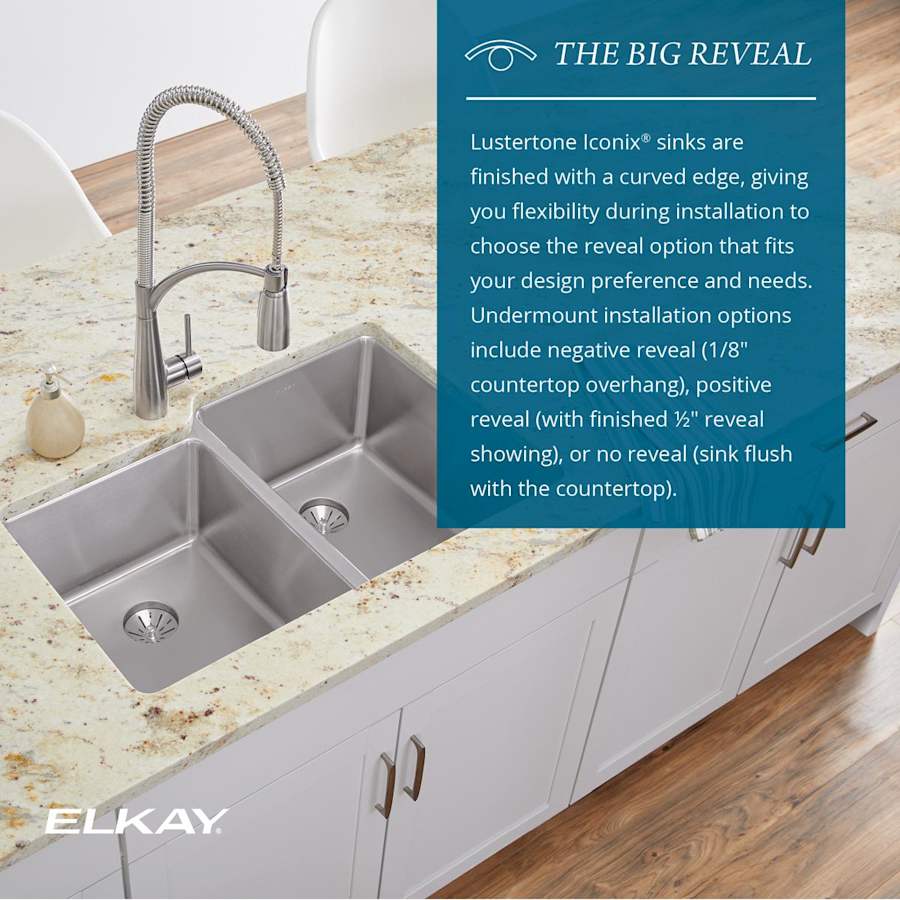

Undermount installation – sink will install under the counter top
Single basin design for maximum workspace

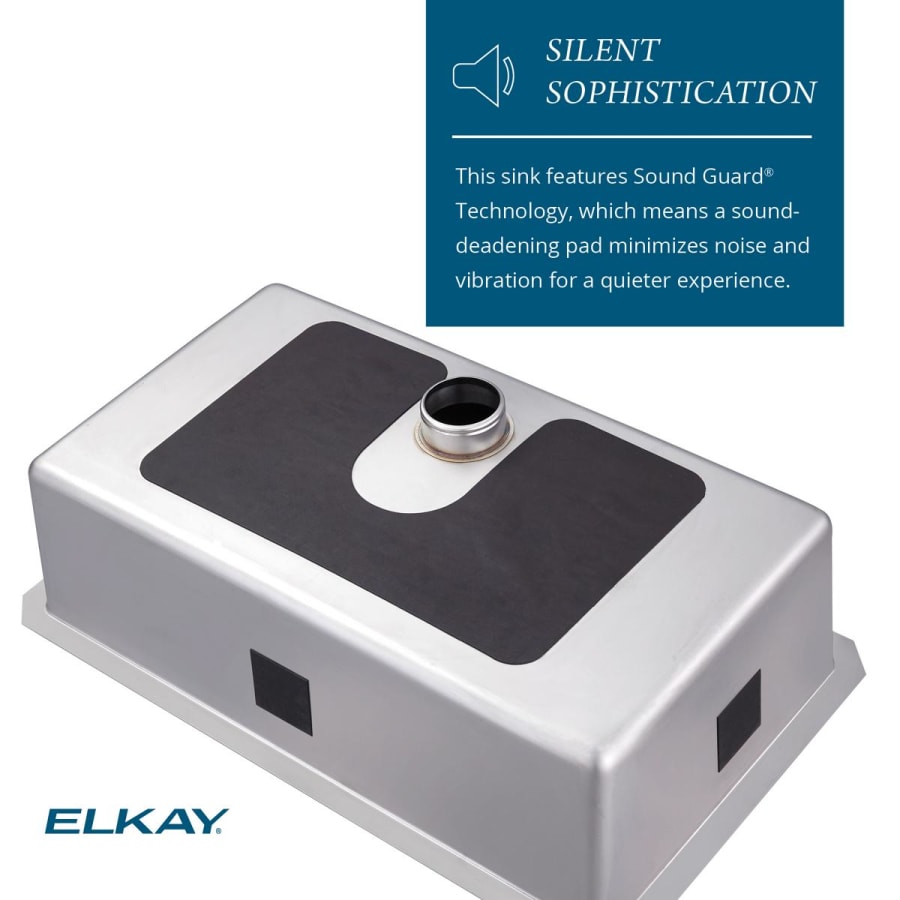

Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
Rear drain placement
Mounting hardware included

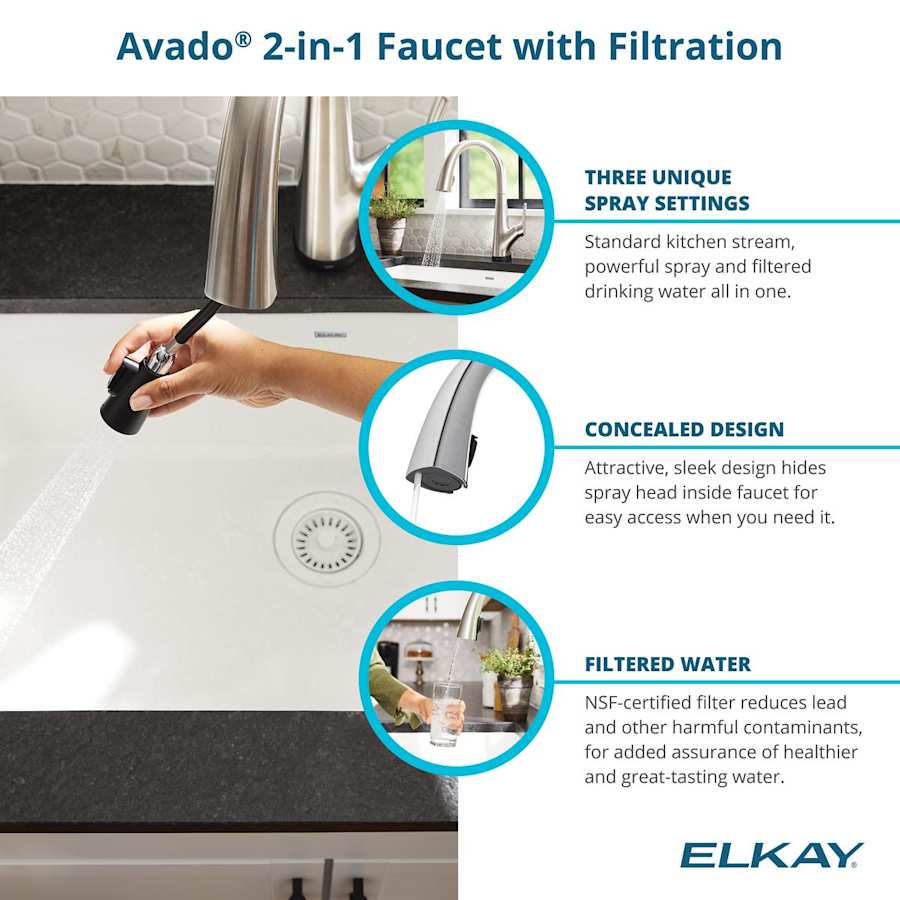

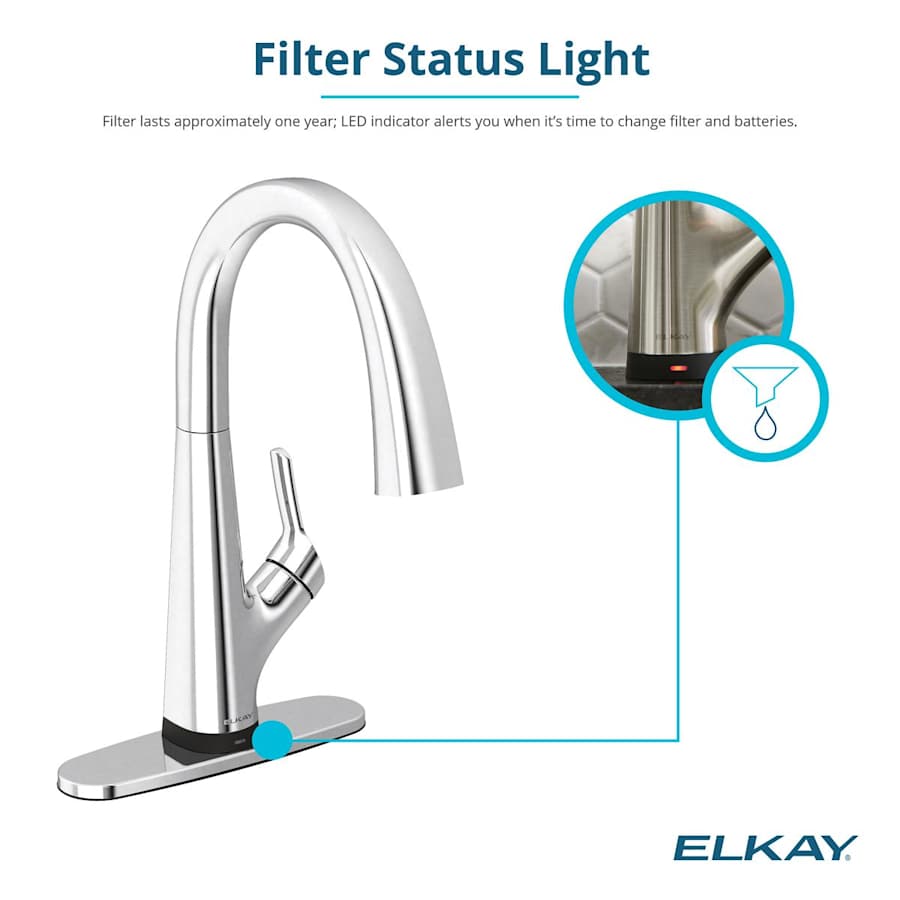

Elkay Faucet Features:
Faucet body constructed of Brass
Coordinates beautifully with other items from the Lustertone Iconix series
Single hole installation
Swivel spout allows for greater access to all areas of the sink
Single lever handle control the flow and temperature of water
Includes ceramic disc valve cartridge
Faucet includes escutcheon plate to cover additional faucet holes

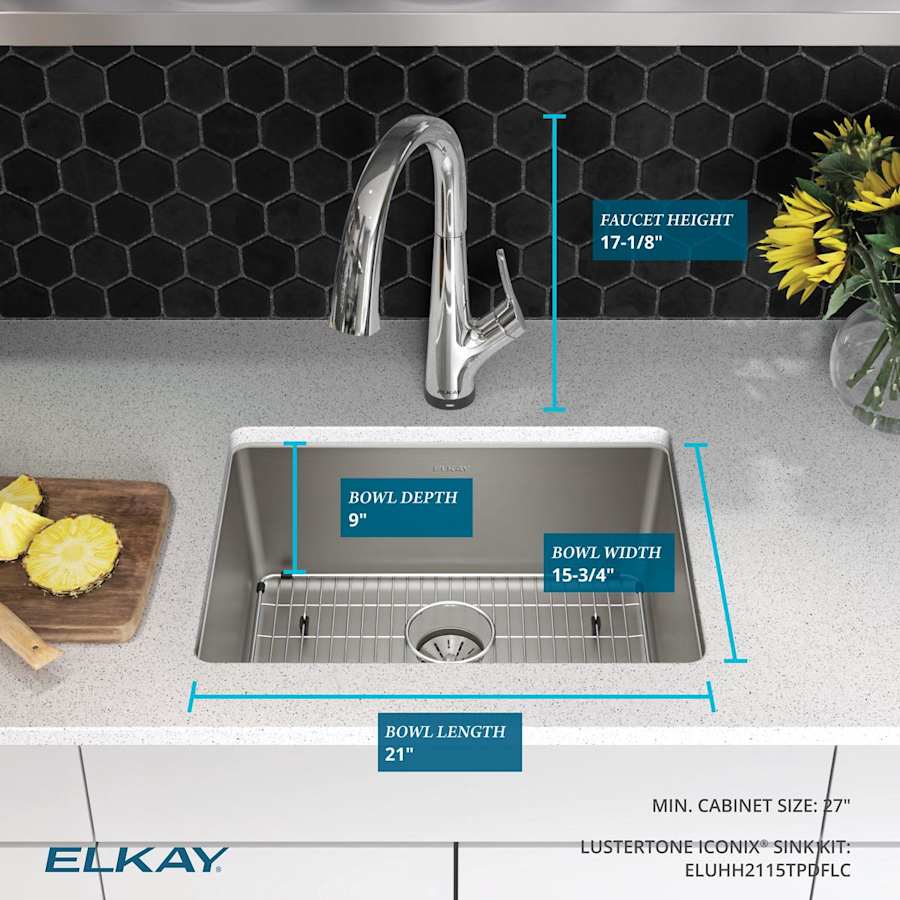

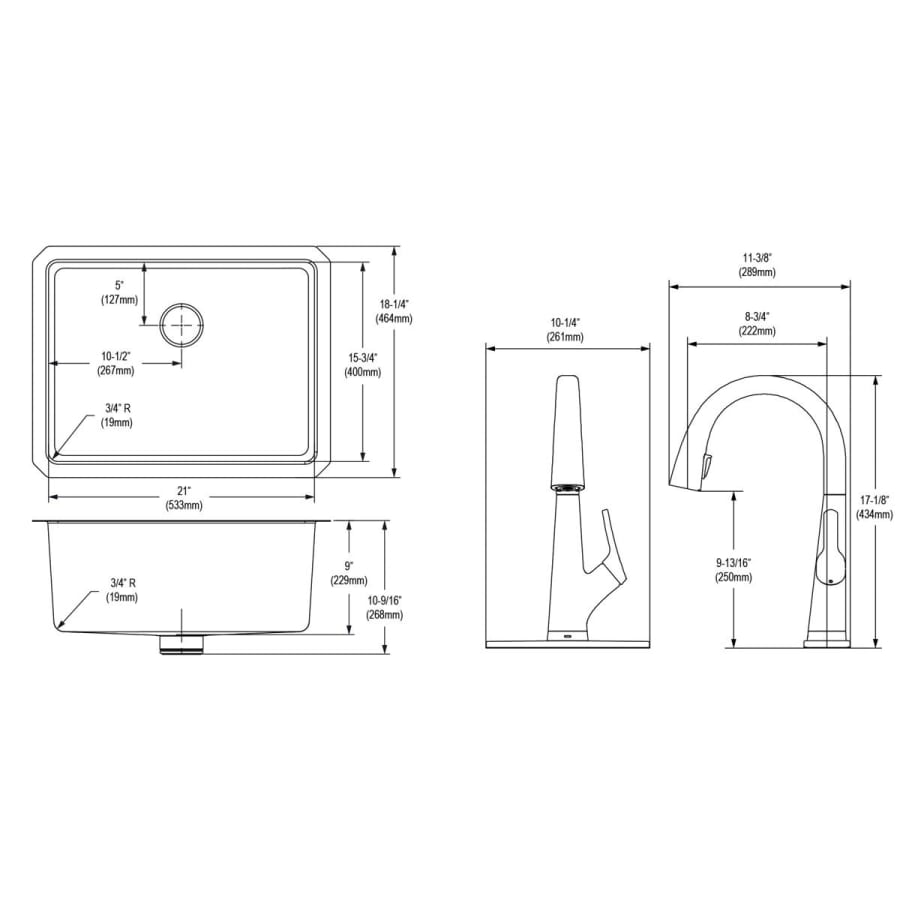

Elkay Sink Specifications:
Sink Length: 23-1/2″ (left to right)
Sink Width: 18-1/4″ (front to back)
Sink Height: 9″ (top to bottom)
Basin Dimensions: 21″ L x 15-3/4″ W x 9″ D
Drain Connection: 3-3/8″
Elkay Faucet Specifications:
Faucet Height: 17-1/8″ (deck to top of faucet)
Spout Height: 17-1/8″ (deck to spout outlet horizontally)
Spout Reach: 8-3/4″ (center of faucet body to center of spout outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Centers: 0″ (distance between centers of outside faucet holes)
Faucet Hole Size: 1-1/2″
Max Deck Thickness: 2-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Lustertone Iconix Collection
Specifications
| Drain Connection | 3.375 in. |
| Length | 23.5 in. |
| Nominal Length | 23.5 in. |
| Width | 18.25 in. |
| Height | 9 in. |
| Nominal Width | 24 in. |
| Flow Rate (GPM) | 1.5 |
| Hose Length | 36 in. |
| Spout Reach | 8.75 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.5 in. |
| Spout Height | 17.125 in. |
| Max Deck Thickness | 2.5 in. |
| Minimum Cabinet Size | 27 in. |
| Spout Swivel | 180 Degrees |
| Gauge | 16 |
| Backplate Depth | 9 in. |
| Bar Length | 21 in. |
| Base Width | 15.75 in. |
| Sink Length | 23.5 in. |
| Sink Width | 18.25 in. |
| Sink Height | 9 in. |
| Faucet Height | 17.125 in. |
| Material | Stainless Steel |
| Handle Style | Lever |
| Thermostat | Traditional |
| Insulation Type | Undermount |
| Number Of Handles | 1 |
| Spray Settings | 3 |
| Valve Type | Ceramic Disc |
| Water Efficient | Yes |
| Spout Type | Swivel |
| Bridge Faucet | No |
| Electronic | No |
| Drain Placement | Rear |
| Number Of Bathers | 1 |
| Apron Front | No |
| Basin Split | Single Basin |
| Corner Sink | No |
| Farmhouse | No |
| Faucet Mounting Type | Single Hole |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Pre Rinse | No |
| Pullout Spray | No |
| Sink Material | Stainless Steel |
| Workstation Sink | Yes |
| Battery Quantity | 2 |
| Pullout Direction | Down |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Faucet Finish | Chrome |
| ADA | No |
| ASSE Code | A112.19.3 |
| Country Of Origin | China |
| CSA Code | B45.4 |
| Collection | Lustertone Iconix |
| Manufacturer Warranty | Limited Lifetime |
| CA Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | No |
| Faucet Included | Yes |
| Soap Dispenser Included | No |
| Filtering | Yes |
| Sidespray | No |
| Power Source | Battery |
| Battery Size | AA |
| Color | Stainless Steel |
