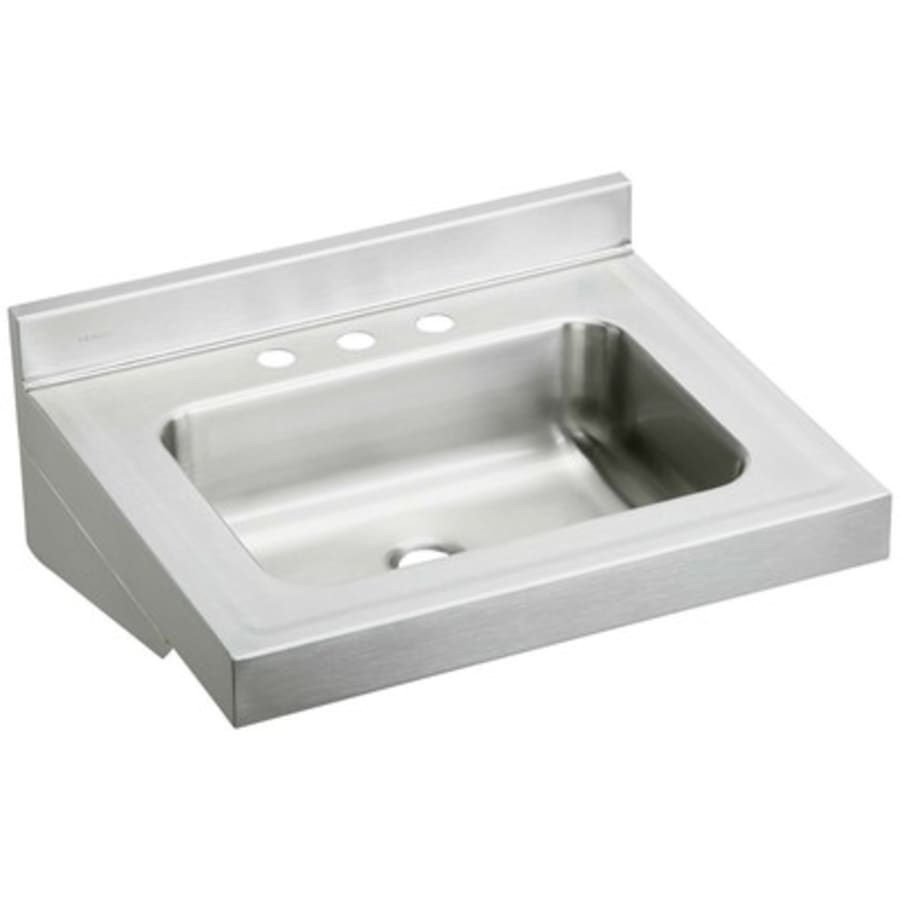

Elkay Stainless Steel 22″ x 19″ Wall Mount Single Bowl Lavatory Sink with Three Faucet Holes, 2-1/2″ Backsplash and 4″ Centers
Highest quality sink formed of 18 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
5/32″ raised rims and 2-1/2″ high backsplash
Compartment has 1-3/4 radius vertical and horizontal Coved corners
2-1/2″ apron at front and both sides
Exposed surfaces are hand blended
Underside is sound deadened
Furnished with integral Stainless steel support brackets and separate wall hanger
Product Specifications:
Installation Type: Wall mount
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 22″ L x 19″ W
Bowl Depth: 5-1/2″
Bowl Dimensions: 16″ L x 11-1/2″ W x 5-1/2″ D
Faucet Holes: 3
Drain Size: 1-5/8″
Ship Wt: 16 lbs
Product Certifications and Compliances:
ADA Compliant
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 9 in. |
| Length | 22 in. |
| Width | 19 in. |
| Backplate Depth | 5.5 in. |
| Bar Length | 16 in. |
| Base Width | 11.5 in. |
| Drain Connection | 1.63 in. |
| Faucet Centers | 8 in. |
| Nominal Length | 22 in. |
| Nominal Width | 19 in. |
| Gauge | 18 |
| Material | Stainless Steel |
| Overflow | No |
| Drain Placement | Center |
| Faucet Holes | 3 |
| Faucet Mounting Type | Widespread |
| Insulation Type | Farmhouse, Wall Mounted |
| Sink Shape | Rectangular |
| Farmhouse | Yes |
| Number Of Bathers | 1 |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Certifications | NSF |
| Drain Assembly Included | No |
| Faucet Included | No |
| Drainboard | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
