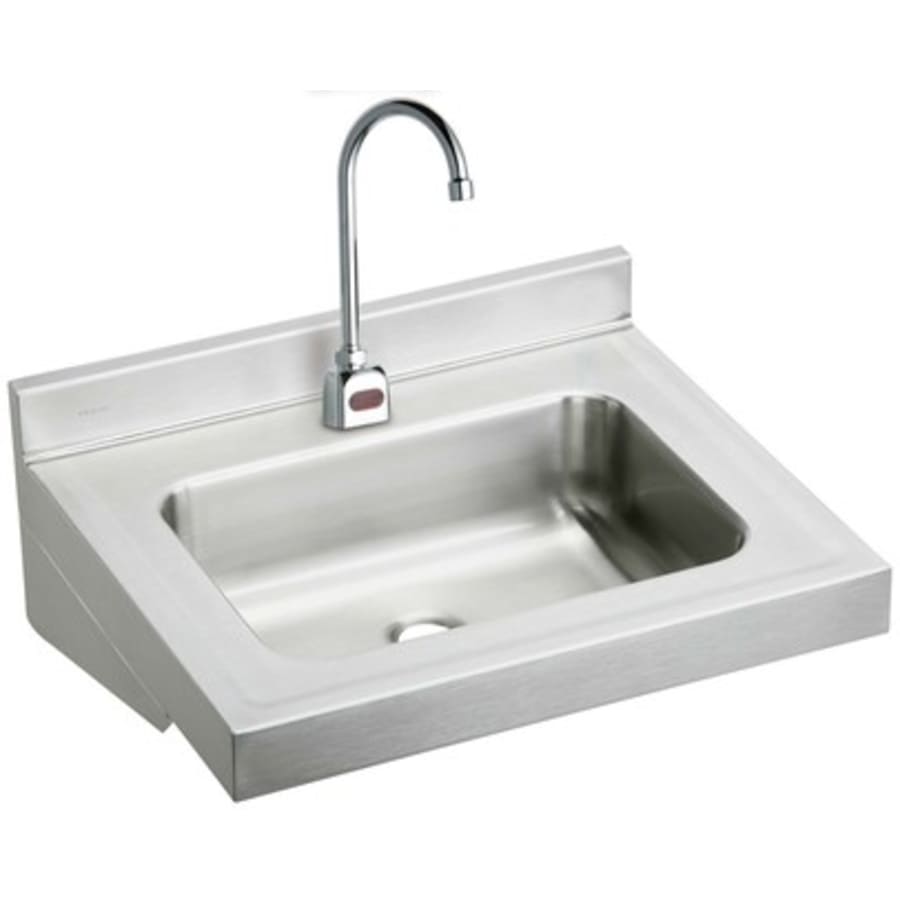

Elkay Stainless Steel 22″ x 19″ Wall Mount Single Bowl Lavatory Sink with Sensor Faucet and Anti-Scald Mixing Valve
Highest quality sink formed of 18 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
5/32″ raised rims and 2-1/2″ high backsplash
Compartment has 1-3/4 radius vertical and horizontal Coved corners
2-1/2″ apron at front and both sides
Exposed surfaces are hand blended
Underside is sound deadened
Furnished with integral Stainless steel support brackets and separate wall hanger
Faucet:
Sensor-operated
Non-mixing
Deck-mounted
Gooseneck faucet with adjustable sensor eyes
Chrome-plated solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Anti-Scald Mixing Valve:
Anti-scald thermostatic universal mixing valve
Forged bronze body
3/8″ compression type inlet and outlet connections
Contains a four port adapter to allow use for both touchless and two handle sink operations
Comes with internal check valves on inlets and mixed temperature range of 80-120°F
Product Specifications:
Sink:
Installation Type: Wall mount
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 22″ L x 19″ W
Bowl Depth: 5-1/2″
Bowl Dimensions: 16″ L x 11-1/2″ W x 5-1/2″ D
Faucet Holes: 1
Drain Size: 1-5/8″
Faucet:
Mounting Type: Deck
Holes Required: One
Overall Height: 11-5/8″
Spout Height: 7-5/16″
Spout Reach: 5-5/8″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 26.8 lbs
Product Certifications and Compliances:
ADA Compliant
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 9 in. |
| Length | 22 in. |
| Width | 19 in. |
| Backplate Depth | 5.5 in. |
| Bar Length | 16 in. |
| Base Width | 11.5 in. |
| Drain Connection | 1.63 in. |
| Faucet Centers | 0 in. |
| Nominal Length | 22 in. |
| Nominal Width | 19 in. |
| Flow Rate (GPM) | 2 |
| Faucet Hole Size | 1.25 in. |
| Spout Height | 8.25 in. |
| Spout Reach | 5.38 in. |
| Gauge | 18 |
| Faucet Height | 12.5 in. |
| Material | Stainless Steel |
| Overflow | No |
| Drain Placement | Center |
| Faucet Holes | 1 |
| Faucet Mounting Type | Single Hole |
| Insulation Type | Farmhouse, Wall Mounted |
| Sink Shape | Rectangular |
| Farmhouse | Yes |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Certifications | NSF |
| Drain Assembly Included | No |
| Faucet Included | Yes |
| Drainboard | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
