About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

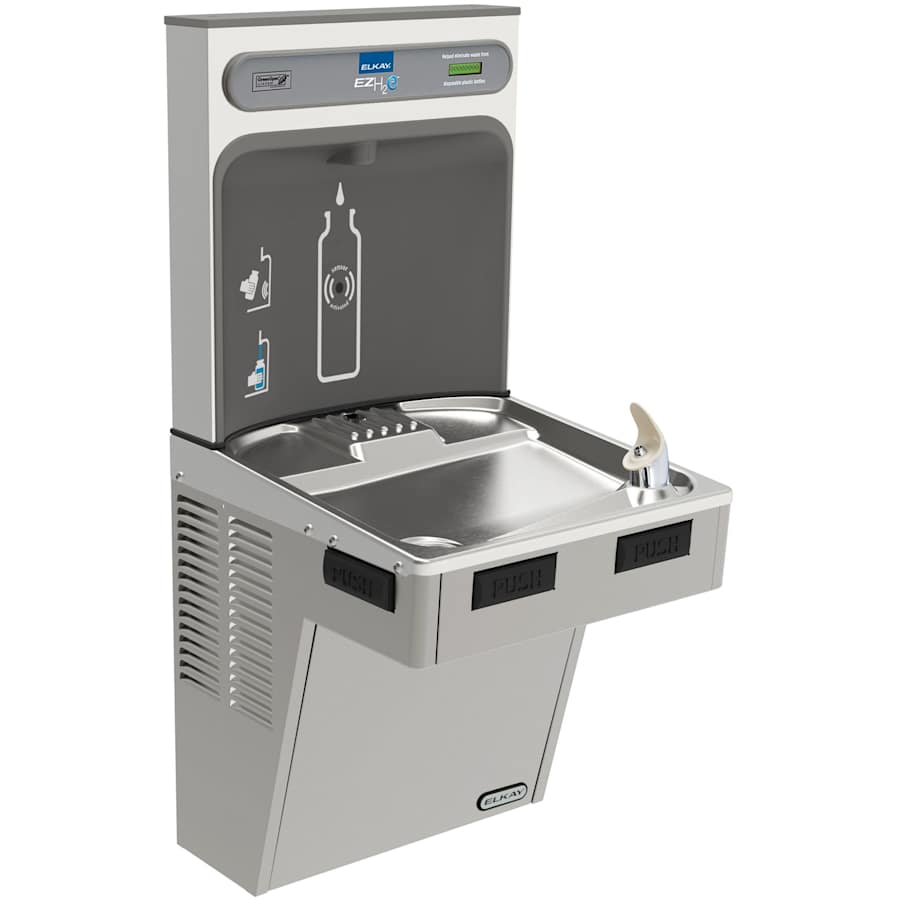

Elkay EMABF8WSK Features:
Single station bottle filling and drinking fountain combo with self contained ADA cooler
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
ezH20 Technologies / Benefits:
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EMABF8WSK Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Elkay EMABF8WSK Specifications:
Height: 39-3/4″ (measured from lowest rim to top rim of fixture)
Length: 17-7/8″ (measured from most left to most right rim of fixture)
Width: 18-1/2″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Voltage: 115V/60Hz
Number of Stations: 2
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): .13
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.75 in. |
| Width | 18.5 in. |
| Length | 17.875 in. |
| Product Weight | 75 lbs. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Water Pressure (Max) | 105 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Collection | EZH2O |
| Location Rating | Dry Location |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| Manufacturer Warranty | 5 Year Limited |
| Outdoor Approved | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Thermostat | Modern |
| Material | ABS, Stainless Steel |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Bar |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 1 |
| Pet Friendly | No |
| Wattage | 370 |
| Voltage | 115 |
| Amperage | 4 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
