About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.
Elkay EMABFDWSK Features:

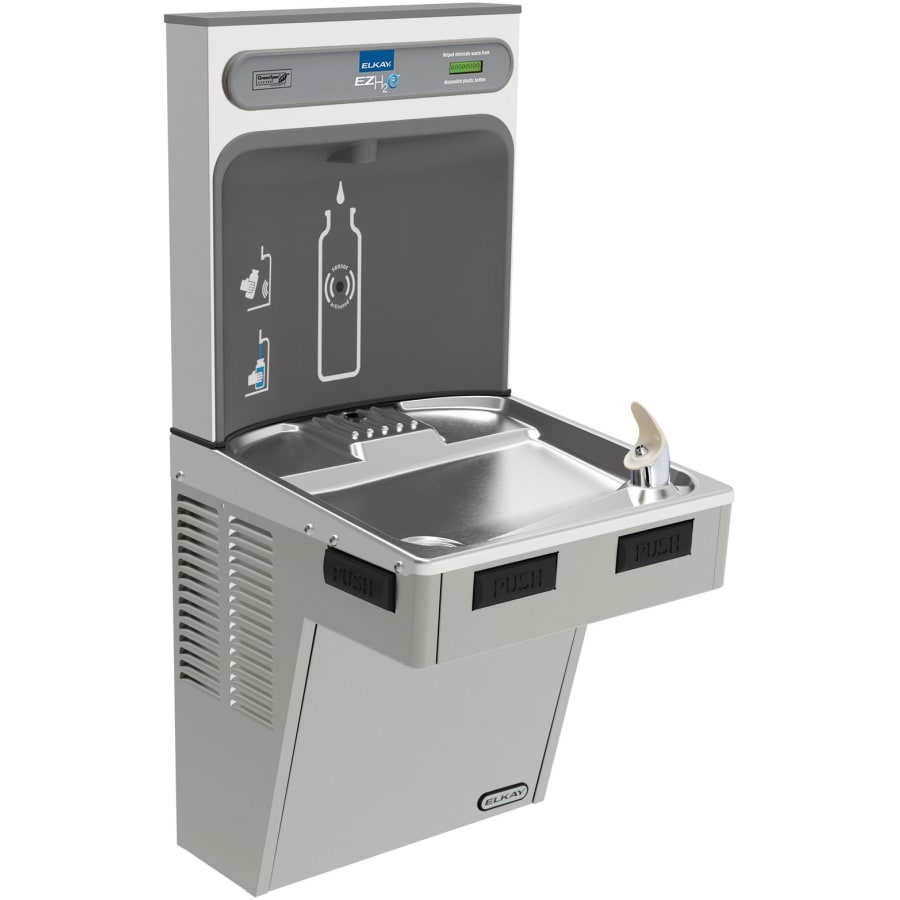

Single station non-refrigerated bottle filling and drinking fountain combo
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Frame – Galvanized structural steel chassis provides structural integrity and fastens to the wall
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
ezH20 Technologies / Benefits:
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EMABFDWSK Specifications:
Height: 39-3/4″ (measured from lowest rim to top rim of fixture)
Length: 17-7/8″ (measured from most left to most right rim of fixture)
Depth: 18-1/2″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Voltage: 115V/60Hz
Number of Drinking Stations: 1
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.5
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.75 in. |
| Width | 18.5 in. |
| Length | 17.875 in. |
| Product Weight | 40 lbs. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Material | ABS, Stainless Steel |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Energy Efficient | Yes |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 5 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Wattage | 15 |
| Amperage | 1 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
| Color | Light Gray Granite |
| Color Tone | Greys |
