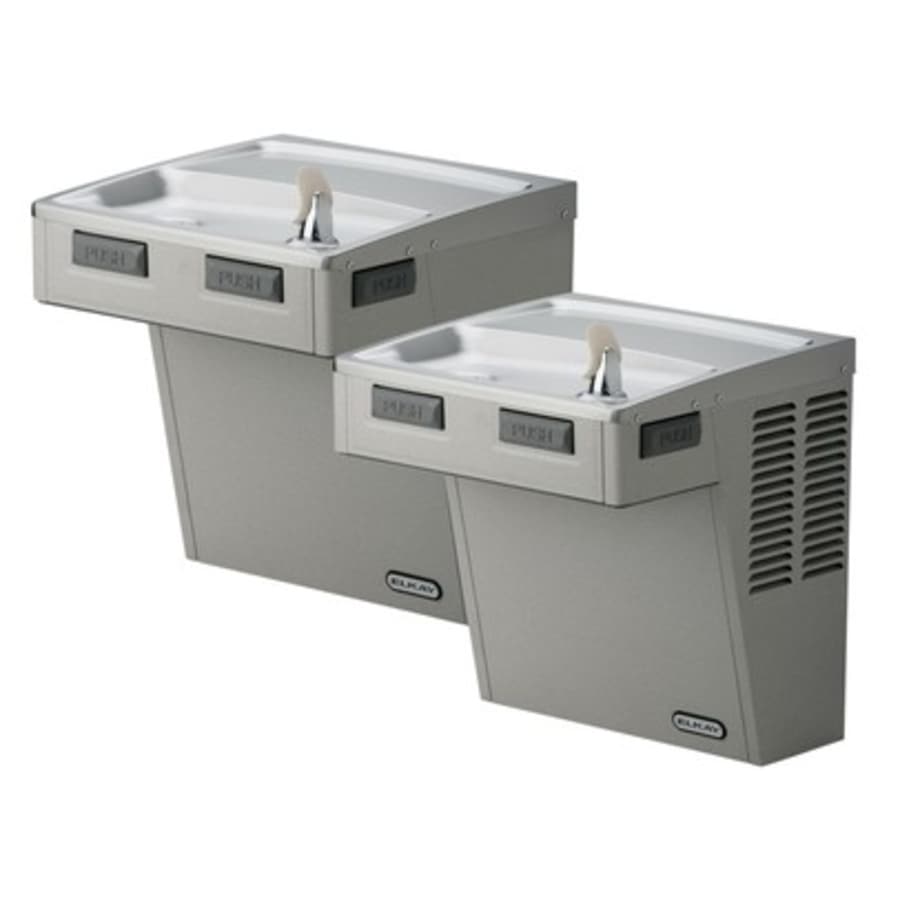

Elkay ADA Wall Mount Bi-Level Drinking Fountain with Mechanical Push Bar
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Two-Level Wall mounted drinking fountain
Hood projectors have flow regulators that provides constant stream from 20 to 105 psi water pressure
Non-pressurized tank system is standard
Non-pressurized water tank is located after bubbler valve (so that tank is subject to line pressure only when valve button is pressed)
ADA compliant
No lead design
Construction
Frame – Galvanized structural steel chassis supports fountain top and cabinet panels
Fountain Top – One piece Stainless steel. Basin has embossed bubbler pad
Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with standard screws
Product Specifications:
Base Flow Rate: 0
Rated Watts: 0
Full Load Amps: 0
Shipping Weight: 36 lbs
Fountain Type: Standard
Installation Type: Wall
Hands Free Operation: No
Voltage: 0
Height: 26-1/16″
Depth: 18-5/8″
Vandal Resistant Bubbler: No
Freeze Protection: No
Glass Filler: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 23.625 in. |
| Width | 18.625 in. |
| Length | 36 in. |
| Product Weight | 70 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Bottle Filler Included | No |
| Cooling Unit | No |
| Color | Light Gray Granite |
| Color Tone | Greys |
