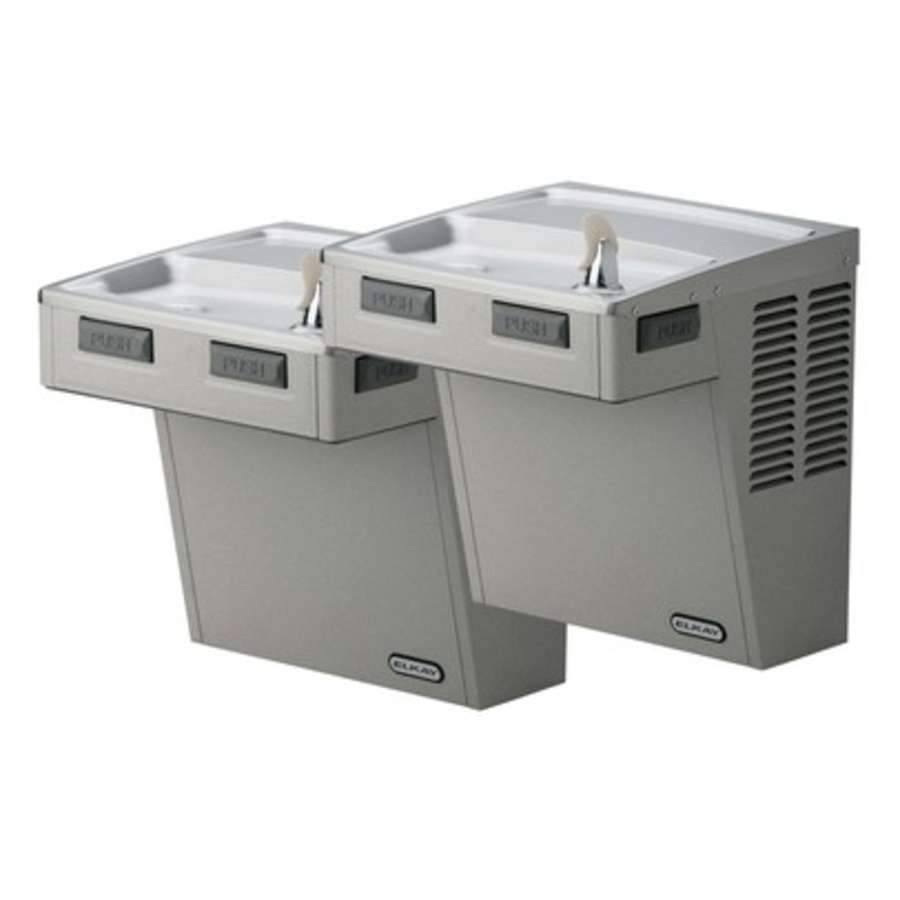

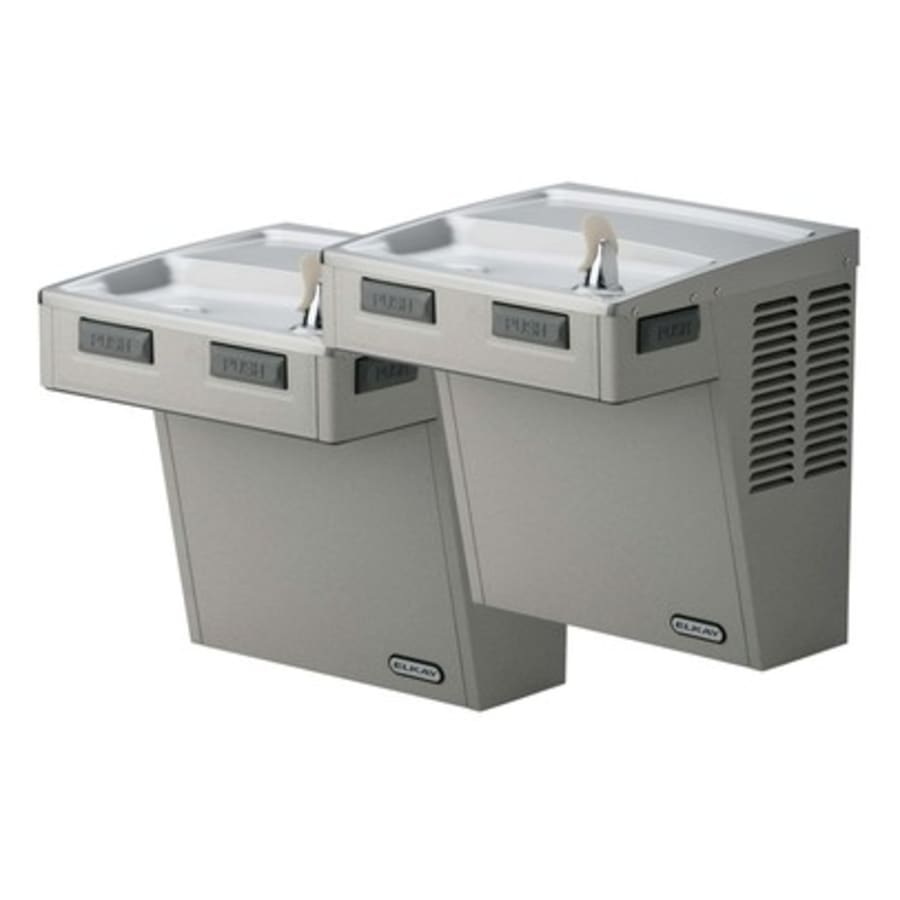

Elkay 8 GPH ADA Reverse Wall Mount Bi-Level Cooler with Mechanical Push Bar
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Self contained double wall hung water cooler
Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Hooded stream projector
Self closing push bars on front, left and right sides
Built-In flow regulator from 20 to 105 psi
No lead design
ADA compliant
Construction
Frame – Galvanized steel chassis supports fountain top and all working mechanisms. No operating parts are connected
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
Dimensions and Measurements
| Height | 23.625 in. |
| Width | 18.625 in. |
| Length | 36 in. |
| Product Weight | 92 lbs. |
| Flow Rate (GPM) | .13 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
Characteristics and Features
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Vandal Resistant | No |
| Control Type | Bar |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 370 |
| Amperage | 4 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
Included Components
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
