About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

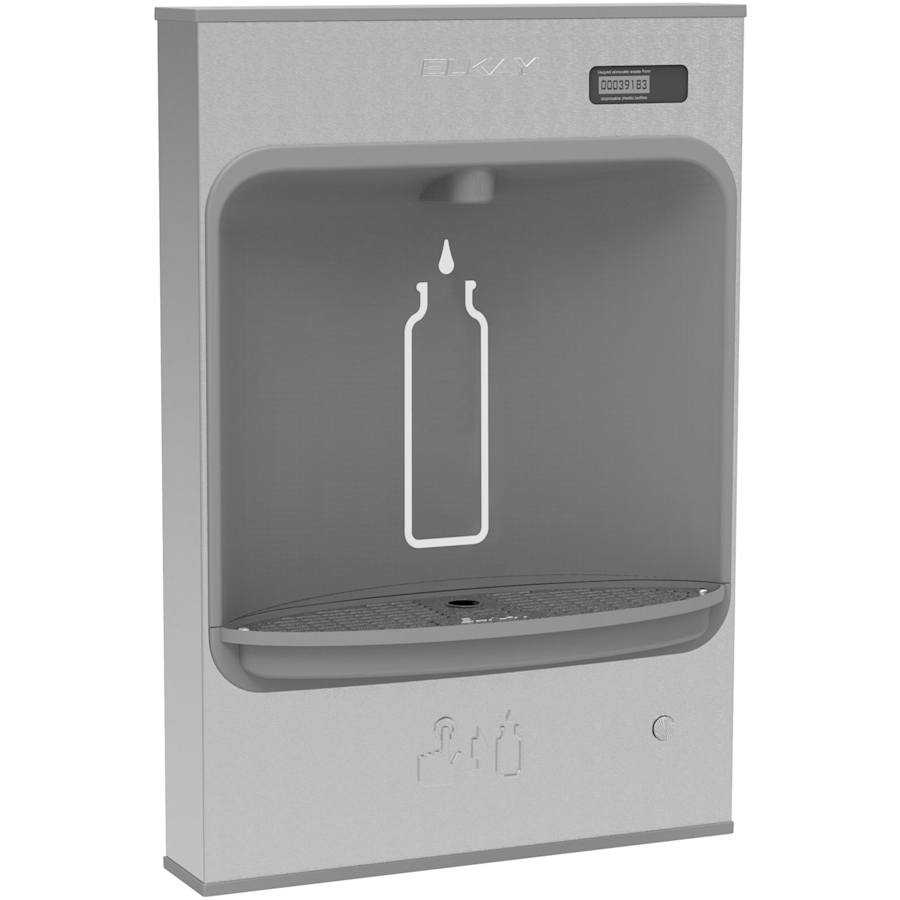

Elkay EMASMB Features:
Single station non-refrigerated bottle filling unit
Integrated Silver Ion Anti-microbial Protection in key areas
Push-button activation delivers 1.0 gpm
Battery operated LCD display screen
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components

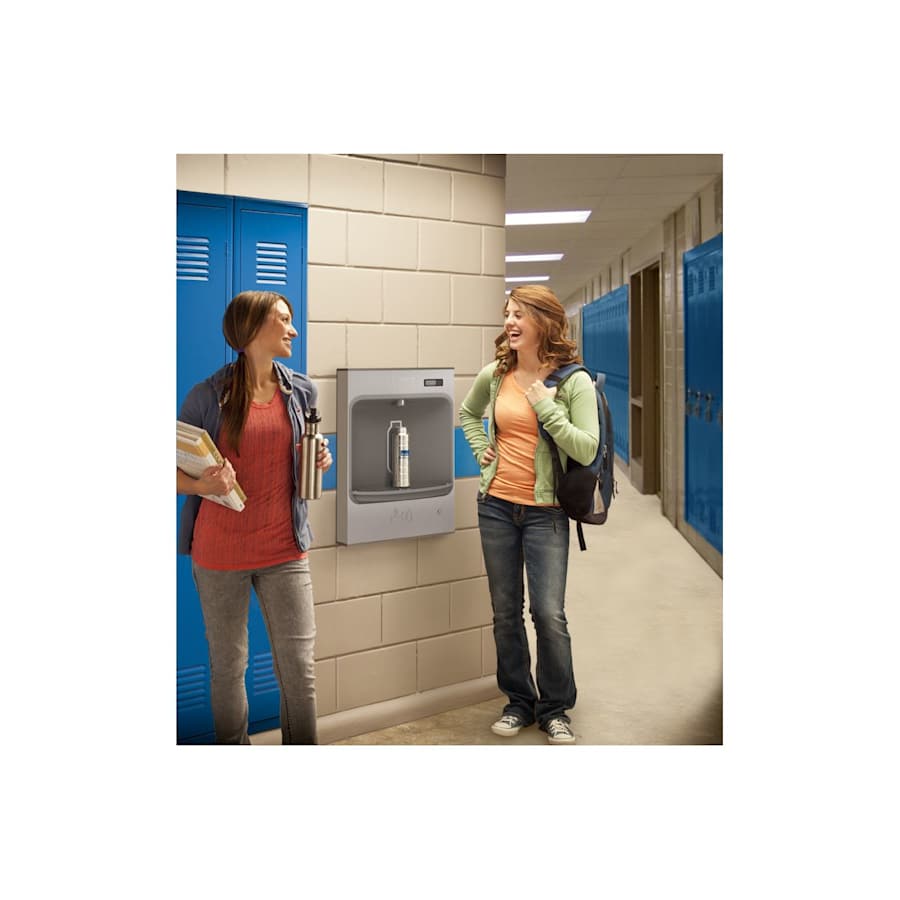

Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Stainless steel bottle filler wrapper with ABS plastic alcove
Includes robust hanging bracket for surface mount
Elkay EMASMB Technologies / Benefits:
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EMASMB Specifications:
Height: 25-7/8″ (measured from lowest rim to top rim of fixture)
Length: 17-7/8″ (measured from most left to most right rim of fixture)
Depth: 6-1/4″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: No
Bottle Filling Capacity (GPM): 1
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 25.875 in. |
| Width | 6.25 in. |
| Length | 17.875 in. |
| Product Weight | 22 lbs. |
| Flow Rate (GPM) | 1.1 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Material | ABS, Stainless Steel |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Push Button |
| Antimicrobial | Yes |
| Pet Friendly | No |
| Filtered | No |
| Freeze Resistant | No |
| Hands Free | No |
| Number of Stations | 1 |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Certifications | NSF, ANSI, ASME, UL |
| Manufacturer Warranty | 5 Year Limited |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Cooling Unit | No |
| Bottle Filler Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
