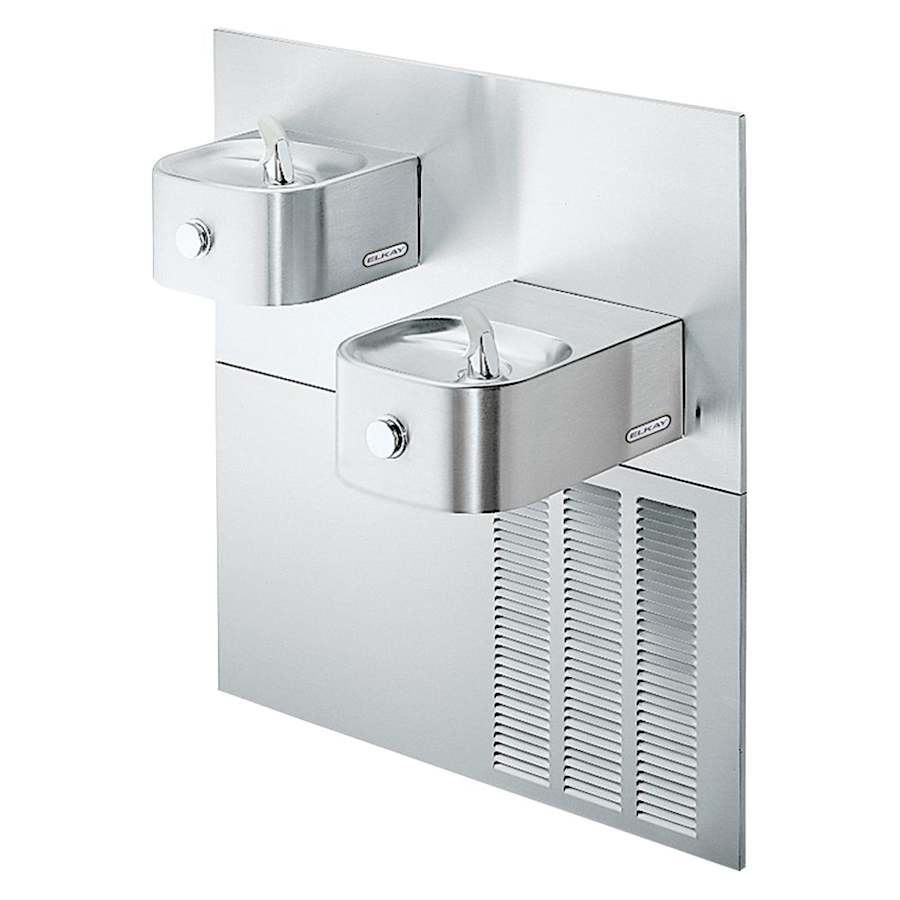

Elkay Soft Sides 38-1/2″ Wall Mounted Bi-Level Drinking Station with Cooler

Product Features:

Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Bi-Level drinking fountain with self contained ADA cooler
Electric refrigeration is a combination tube-tank running single phase
Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient
A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler
Vandal-resistant, easy to operate front push-button control
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure

Construction:

#18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Frame furnished to allow flush mounting to finished wall – mounting frame ordered separately
Removable louvered ventilating encloses refrigeration unit and plumbing grill encloses refrigeration unit and plumbing

Cooling System:

Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements

Product Specifications:

Base Cooling Capacity (GPH): 7.5
Rated Watts: 370
Full Load Amps: 4
Fountain Type: Refrigerated
Shipping Weight: 130
Voltage: 115
Height: 40-13/16″ (measured from lowest rim to top rim of fixture)
Length: 38-1/2″ (measured from most left to most right rim of fixture)
Depth: 18-5/8″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: No
Filtered: No
