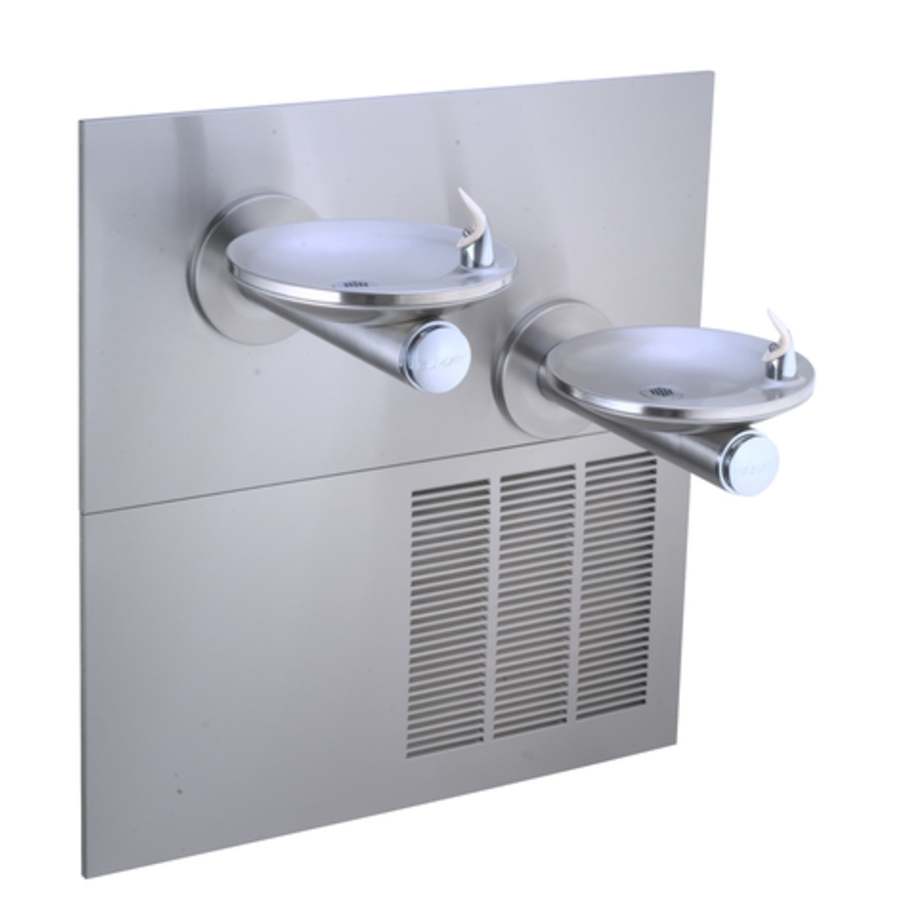

Elkay 7.5 GPH ADA Wall Mount Bi-Level (No Suggestions) Cooler with Cane Apron
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Two-level barrier-free Stainless steel water cooler
Recessed in-the-wall refrigeration system and Stainless steel grill
Stainless steel tubular support arms incorporate unique recess to be integrated with basin
Flow regulators provide constant stream from 20 to 105 psi
Energy efficient refrigeration system utilizes a combination tank continuous-tube type evaporator, refrigerant drier, and capillary tube
No lead design
Construction
Fountain Body – nickel bearing Stainless steel. Contoured basins offer a large strike area to minimize splashing. Tubular support arms incorporate unique recess to accept basins. Fully functional vandal-resistant push button on upper unit is easy to operate
Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Front Panel Grill – Stainless steel removable louvered ventilating grill encloses refrigeration unit and plumbing
Wall mounting Frame – MF200 frame furnished with each unit. Frame allows flush mounting to finished wall
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Self Cleaning. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets requirements for self extinguishing plastic material
Refrigerant Control – Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Flow Rated: 7.5
Rated Watts: 370
Full Load Amps: 4
Fountain Type: Cooler
Shipping Weight: 140 lbs
Installation Type: Wall
Hands Free Operation: No
Voltage: 115V/60Hz
Height: 40-13/16″
Width: 38-1/2″
Depth: 18-3/8″
Foot Pedal: No
Glass Filler: No
Vandal Resistant Bubbler: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 40.8125 in. |
| Width | 19 in. |
| Product Weight | 141 lbs. |
| Length | 38.5 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 7.5 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Control Type | Push Button |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Approved for Commercial Use | Yes |
| Collection | SwirlFlo |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 370 |
| Amperage | 4 |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
