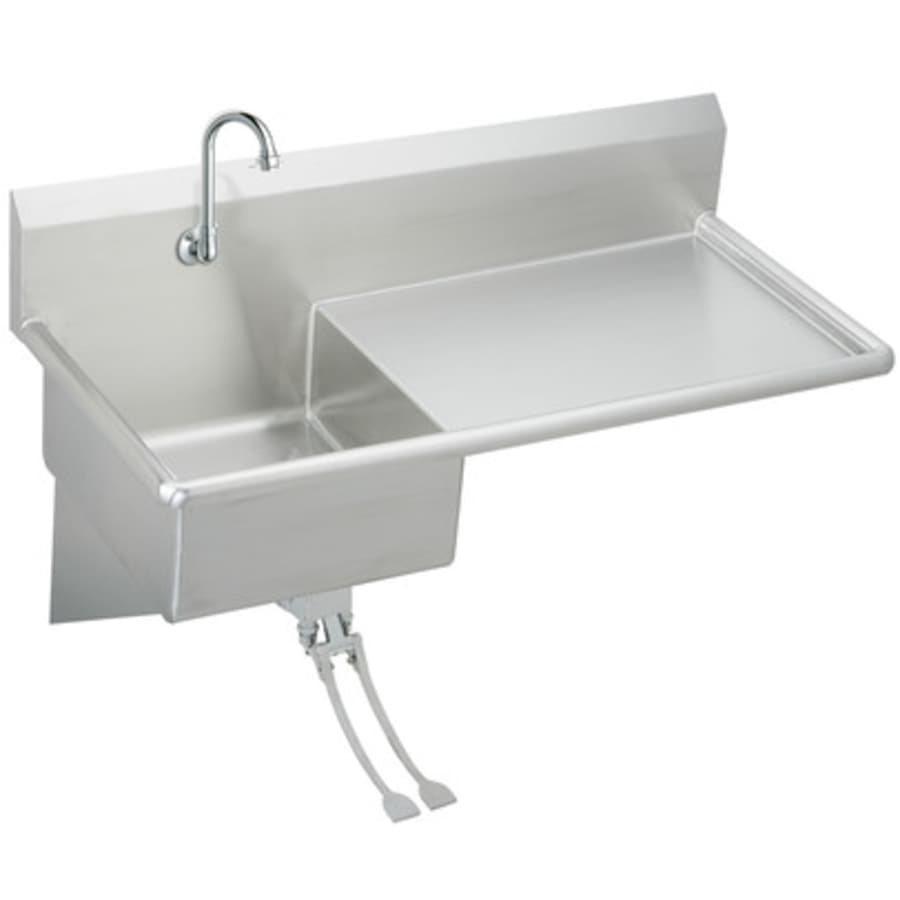

Elkay Stainless Steel 49-1/2″ x 24″ Wall Mount Service Sink with Right Side Drain Board, 8-1/4 Spout, Drain Fitting and Wall Hung Double Foot Valve
Highest quality sink formed of 14 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
Coved corners: 1/4″ vertical and horizontal radius
1-1/2″ rolled rims
Exposed surfaces are hand blended
Furnished with a wall hanger and Stainless steel support brackets
Supply:
Chrome plated
Wall mounted
Double foot pedal valve
1/2″ I.P.S. female inlets and 3/8″ I.P.S. female outlet
14″ from wall to tip of package
Faucet:
Chrome plated
Back mount spout
Vandal-resistant anti-hose aerator
Flanged female 1/2″ I.P.S. inlet with 1/2″ male thread by 1/2″ SWT brass elbow, 1/2″ nipple, washer, and locknut
Drain:
Stainless steel perforated grid strainer
1-1/2″ O.D. Stainless steel tailpiece
Product Specifications:
Sink:
Installation Type: Wall mount
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 49-1/2″ L x 24″ W
Bowl Depth: 10″
Bowl Dimensions: 18″ L x 20-1/2″ W x 10″ D
Faucet Holes: 2
Drain Size: 3-1/2″
Faucet:
Mounting Type: Deck
Holes Required: One
Overall Height: 8-1/4″
Spout Height: 8-1/4″
Spout Reach: 4-7/8″
Material: Brass
Flow Rate: 2.2 GPM
Ship Wt: 82 lbs
Product Certifications and Compliances:
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Service Sink Collection
Specifications
| Approved for Commercial Use | Yes |
| Collection | Service Sink |
| Certifications | NSF |
| CA Drought Compliant | No |
| Insulation Type | Wall Mounted |
| Material | Brass, Stainless Steel |
| Drain Placement | Center |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel, Brass |
| Drainboard Location | Right |
| Number of Pedals | 2 |
| Width | 24 in. |
| Backplate Depth | 10 in. |
| Bar Length | 18 in. |
| Base Width | 20.5 in. |
| Length | 49.5 in. |
| Nominal Length | 50 in. |
| Nominal Width | 24 in. |
| Flow Rate (GPM) | 2.5 |
| Inside Diameter | .5 in. |
| Spout Height | 5.56 in. |
| Spout Reach | 3.56 in. |
| Gauge | 14 |
| Water Pressure (Max) | 80 PSI |
| Faucet Height | 8.25 in. |
| Water Pressure (Min) | 40 PSI |
| Drain Hole | 3.5 in. |
| Drainboard Length | 30 in. |
| Drainboard Width | 24 in. |
| Drainboard | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
