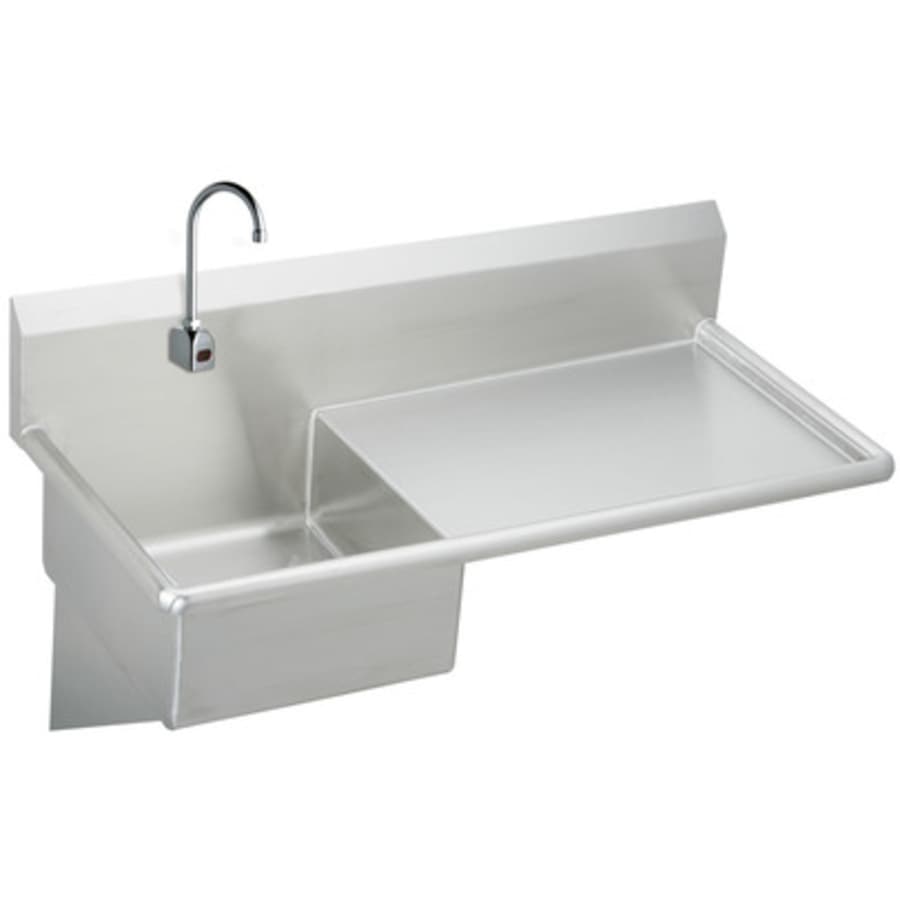

Elkay Stainless Steel 49-1/2″ x 24″ Wall Mount Service Sink with Right Side Drain Board, Sensor Faucet, Anti-Scald Mixing Faucet and Drain Fitting
Highest quality sink formed of 14 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
Coved corners: 1/4″ vertical and horizontal radius
1-1/2″ rolled rims
Exposed surfaces are hand blended
Furnished with a wall hanger and Stainless steel support brackets
Faucet:
Sensor-operated
Non-mixing
Backsplash-mounted gooseneck faucet
Adjustable sensor eyes
Chrome-plated Solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Anti-Scald Mixing Valve:
Anti-scald thermostatic universal mixing valve
Forged bronze body
3/8″ compression type inlet and outlet connections
Contains a four port adapter to allow use for both touchless and two handle sink operations
Comes with internal check valves on inlets and mixed temperature range of 80-120°F
Drain:
Stainless steel perforated grid strainer
1-1/2″ O.D. Stainless steel tailpiece
Product Specifications:
Sink:
Installation Type: Wall mount
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 49-1/2″ L x 24″ W
Bowl Depth: 10″
Bowl Dimensions: 18″ L x 20-1/2″ W x 10″ D
Faucet Holes: 2
Drain Size: 3-1/2″
Faucet:
Mounting Type: Wall
Holes Required: One
Overall Height: 10-7/8″
Spout Height: 6-3/8″
Spout Reach: 7-3/16″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 92.1 lbs
Product Certifications and Compliances:
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Service Sink Collection
Specifications
| Width | 24 in. |
| Length | 49.5 in. |
| Nominal Length | 50 in. |
| Backplate Depth | 10 in. |
| Bar Length | 18 in. |
| Base Width | 20.5 in. |
| Nominal Width | 24 in. |
| Spout Height | 5.38 in. |
| Spout Reach | 8.75 in. |
| Gauge | 14 |
| Faucet Height | 12.75 in. |
| Drain Hole | 3.5 in. |
| Drainboard Length | 30 in. |
| Drainboard Width | 24 in. |
| Approved for Commercial Use | Yes |
| Collection | Service Sink |
| Certifications | NSF |
| Material | Brass, Stainless Steel |
| Insulation Type | Wall Mounted |
| Drain Placement | Center |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel, Brass |
| Drainboard Location | Right |
| Drainboard | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
