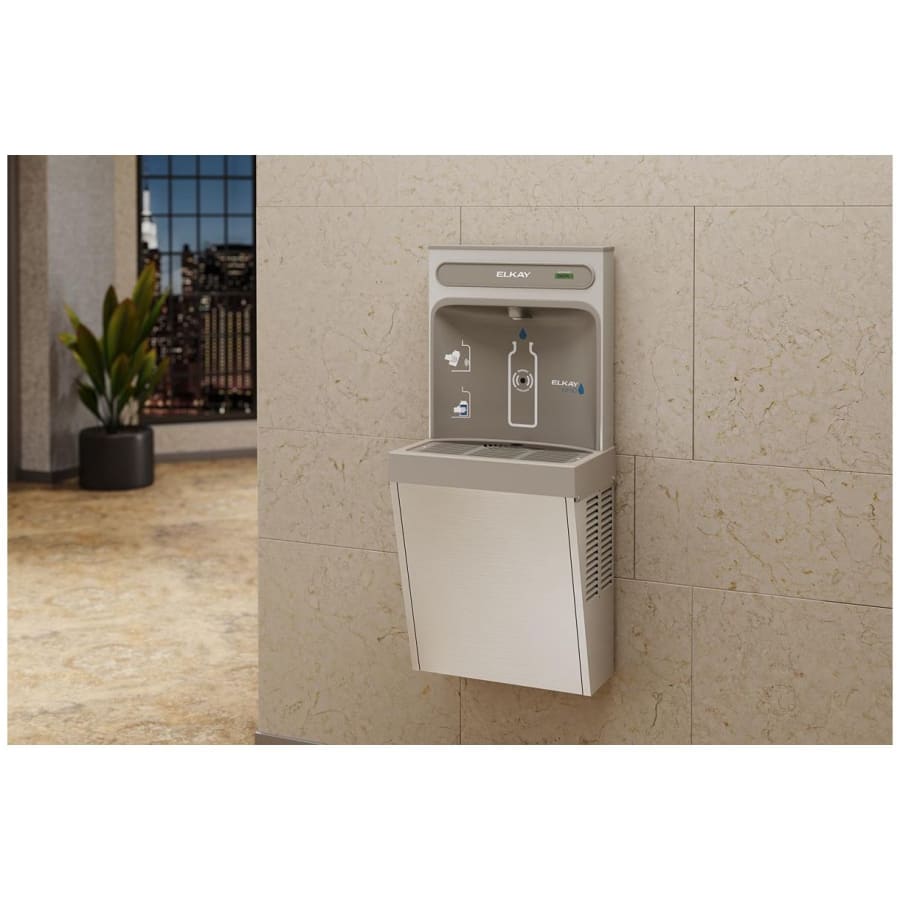

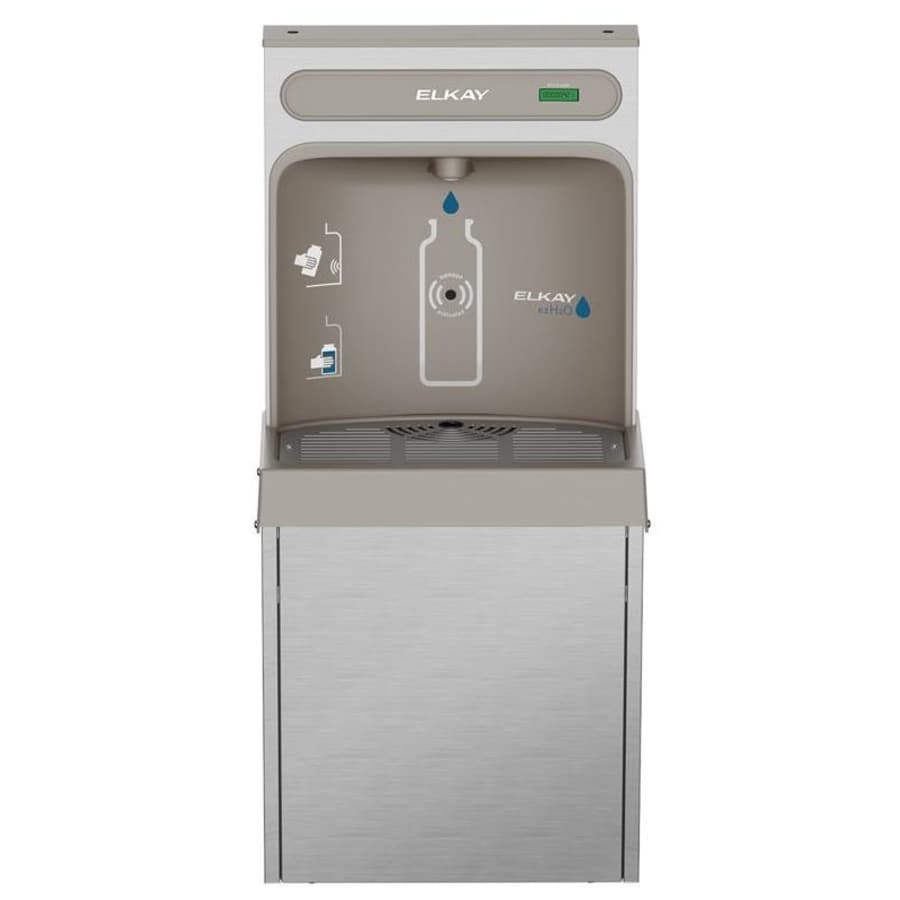

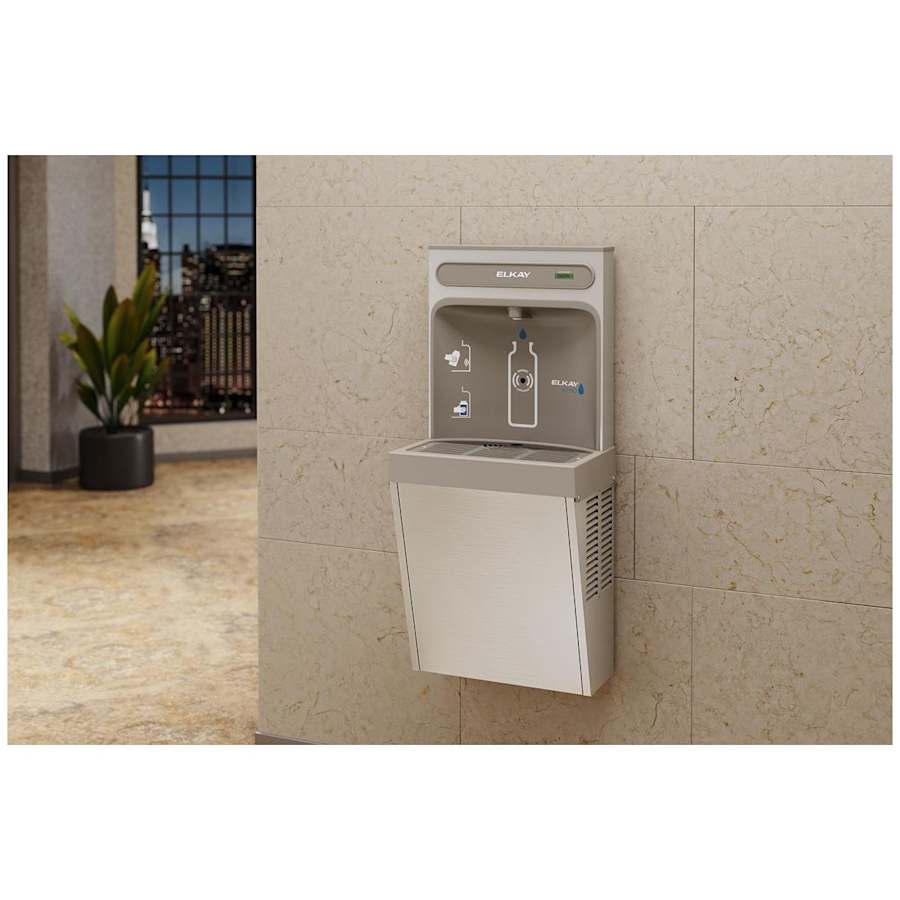

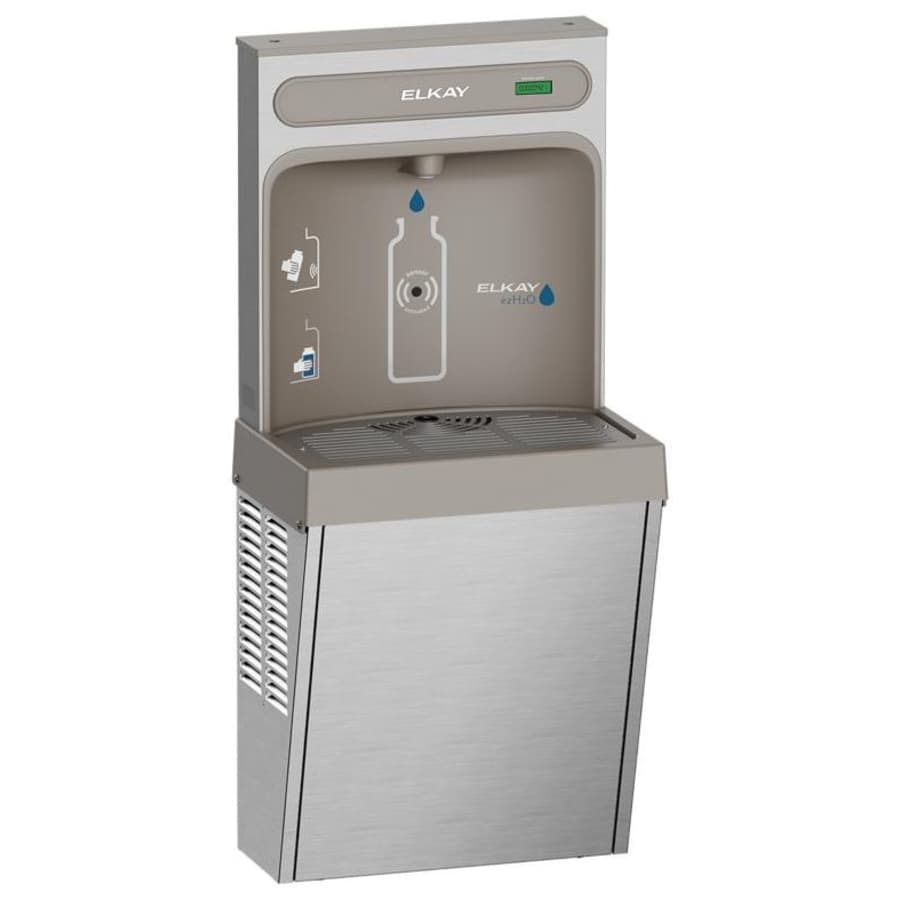

The Elkay EZH2O® refrigerated surface mount bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Ideal for installations with limited space. Sanitary no-touch sensor activation features an automatic 20-second shut-off timer.

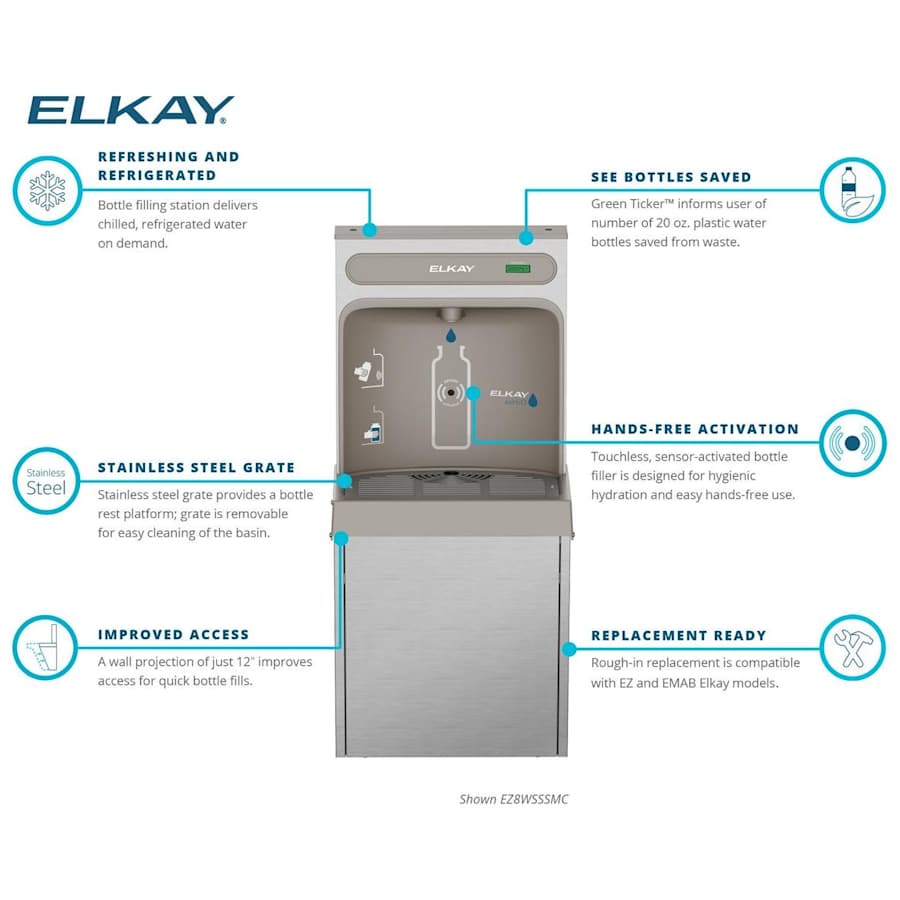

Elkay EZ8WSSSMC Features:
Covered under Elkay’s 5 year limited warranty
Reduced 12″ wall projection
Stainless steel grate for convenient hands-free filling
Grate is removable for easy cleaning of the basin.

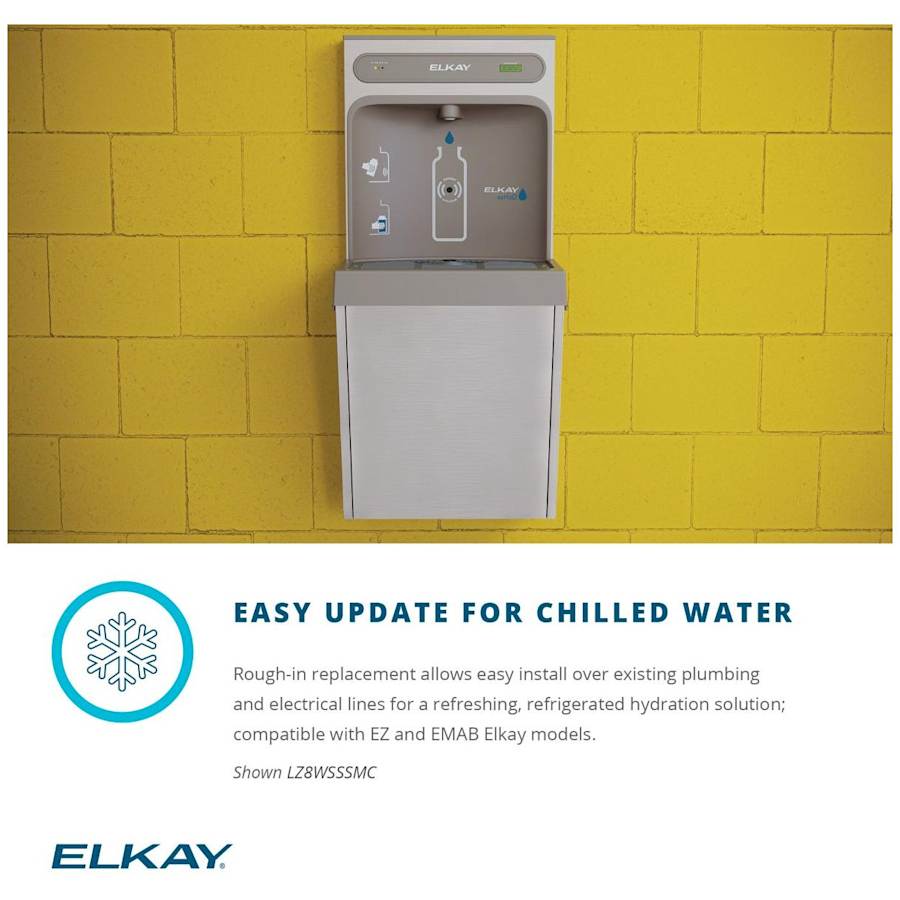

Rough-in replacement compatible with EZ and EMAB Elkay models
Hermetically sealed refrigeration system provides chilled water to satisfy thirst

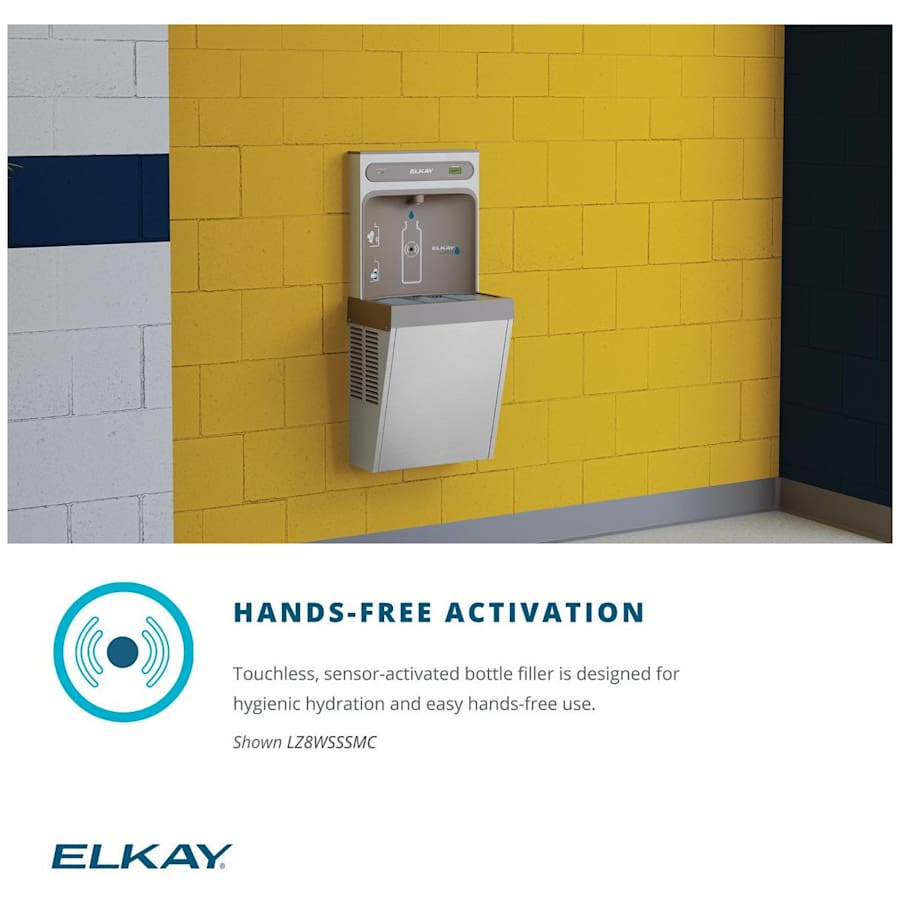

Touchless, sensor activation (bottle filler) designed for easy use
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash
Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
Real drain system eliminates standing water
Rated for indoor use
Elkay EZ8WSSSMC Specifications:
Sink Width: 17-7/8″ (left to right)
Sink Depth: 11-7/8″ (front to back)
Sink Height: 41-1/4″ (top to bottom)
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Depth | 11.88 in. |
| Height | 41.25 in. |
| Product Weight | 60 lbs. |
| Width | 17.89 in. |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 2.5 in. |
| Flow Rate (GPM) | 8 |
| Cooling Capacity | 8 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Control Type | Sensor |
| Energy Efficient | No |
| Barrier Free | Yes |
| Antimicrobial | Yes |
| Bi-Level | No |
| Filtered | No |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 1 |
| Pet Friendly | No |
| Hermetically Sealed Electronics | Yes |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| Certifications | NSF, ANSI, ASME, UL, CSA |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Year Limited |
| ADA | Yes |
| Location Rating | Dry Location |
| ASSE Code | A112.19.3 |
| CSA Code | B45.4 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Made in America | Yes |
| Voltage | 115 |
| Wattage | 60 |
| Amperage | 5 |
| Cooling Unit | Yes |
| Temperature Control | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
