About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

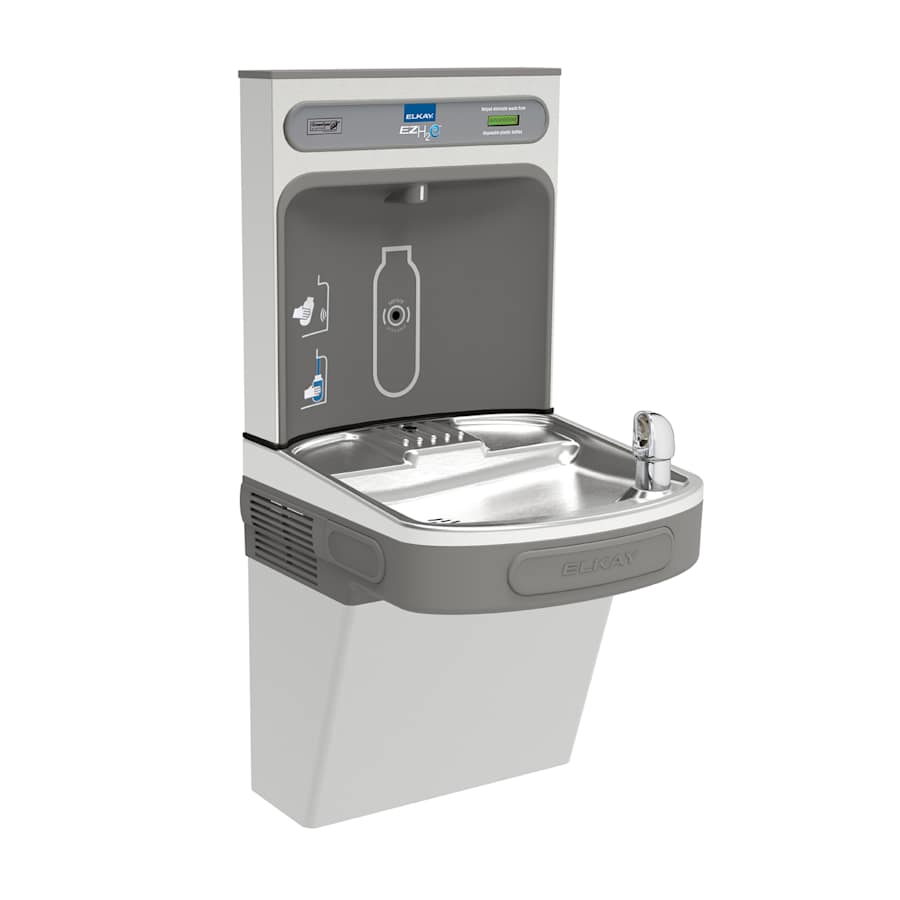

Elkay EZS8WSVRSK Features:
Complete cooler and bottle filling station in a consolidated space saving ADA compliant design
Silver Ion anti-microbial protection
Quick fill 1.1 gpm refrigerated unit
Laminar flow provides minimal splash
Real drain system eliminates standing water
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Chrome plated one-piece bubbler constructed to be vandal-resistant
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall
Stainless Steel Basin – One piece basin has integral drain grid. No exposed fasteners
Elkay EZS8WSVRSK Technologies / Benefits:
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZS8WSVRSK Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Elkay EZS8WSVRSK Specifications:
Height: 39-1/8″ (measured from lowest rim to top rim of fixture)
Width: 19″ (measured from back to front of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Hands Free Operation: No
Voltage: 115V/60Hz
Control Type: Push Bar
Fountain Flow Rate(GPM): .13
Bottle Filler Flow Rate(GPM): 1.1
ADA Compliant: Yes
Number of Stations: 1
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.0625 in. |
| Width | 19 in. |
| Length | 18.375 in. |
| Product Weight | 68 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Insulation Type | Wall Mounted |
| Material | ABS, Stainless Steel |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Energy Efficient | Yes |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Wattage | 370 |
| Voltage | 115 |
| Amperage | 4 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
