Product Features:

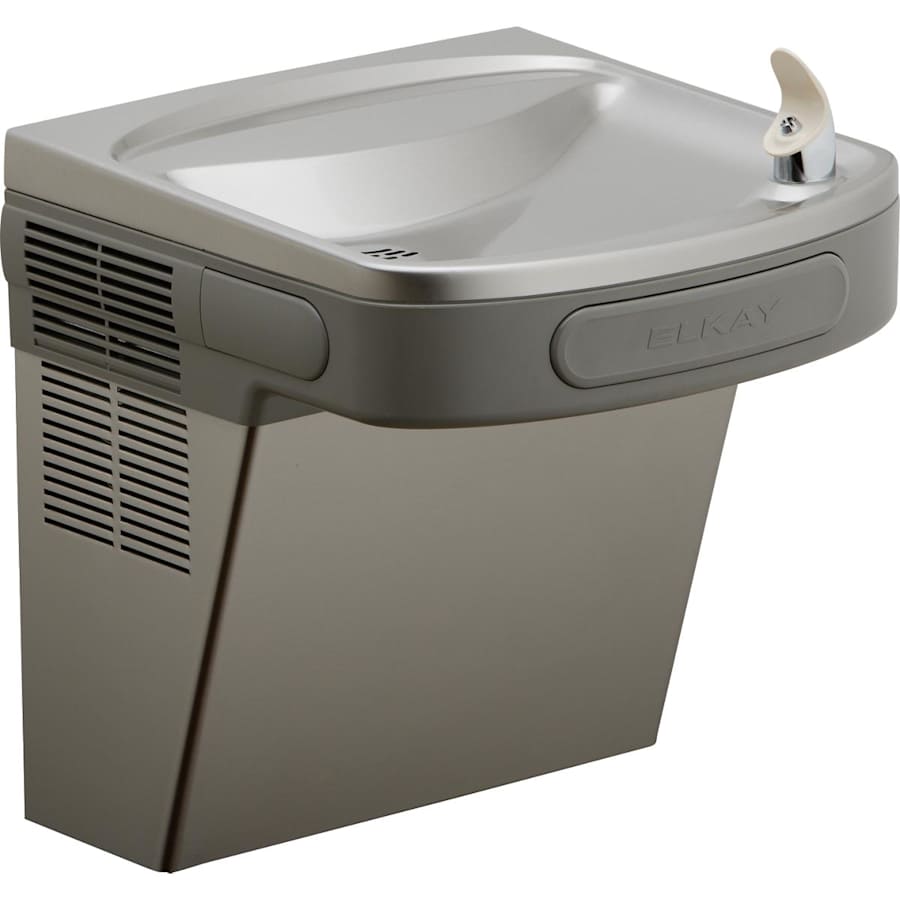

Self-contained wall hung drinking Fountain
Hood projectors have flow regulators that provides constant stream from 20 to 105 psi water pressure

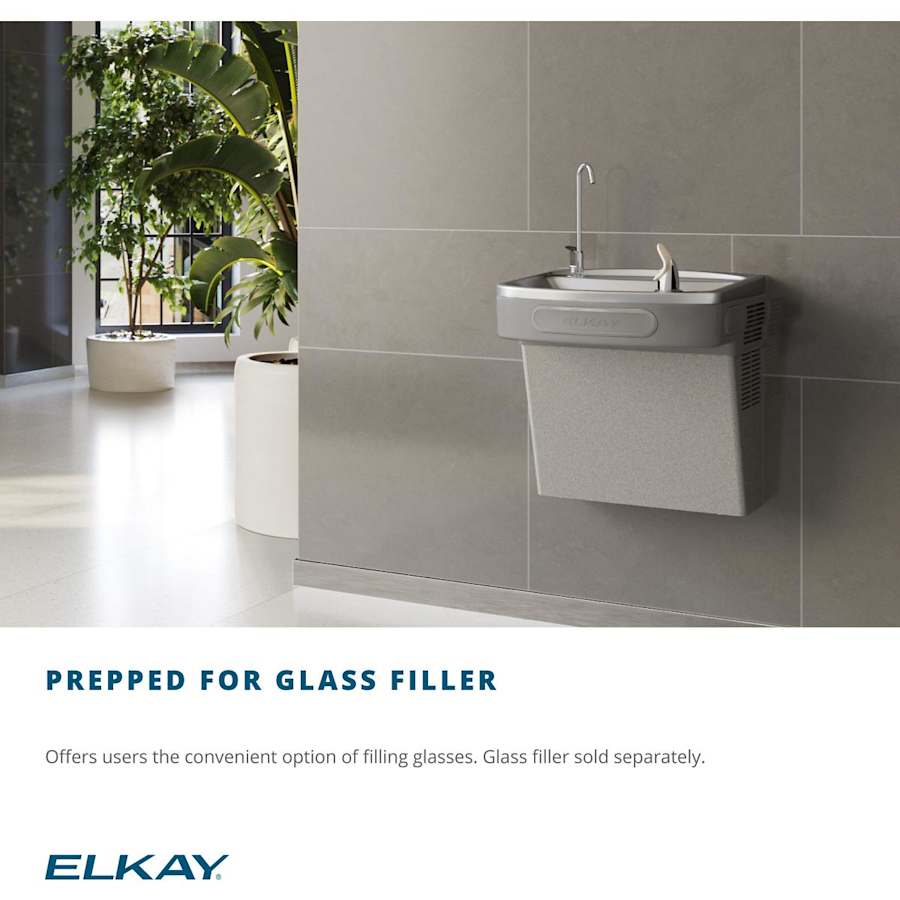

Factory prepped for glass filler install – additional purchase necessary
Non-pressurized water tank is located after bubbler valve (so that tank is subject to line pressure only when valve button is pressed)
ADA compliant
No lead design
Product Specifications:
Fountain Type: Standard
Installation Type: Wall
Hands Free Operation: No
Voltage: 115
Height: 18-13/16″
Width: 18-3/8″
Depth: 19″
Vandal Resistant Bubbler: No
Freeze Protection: No
Bottle Filler Included: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
Dimensions and Measurements
| Height | 32.875 in. |
| Width | 19 in. |
| Length | 18.375 in. |
| Product Weight | 56 lbs. |
| Flow Rate (GPM) | .13 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
Characteristics and Features
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Vandal Resistant | No |
| Control Type | Bar |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Antimicrobial | Yes |
| Bi-Level | No |
Electrical and Operational Information
| Frequency | 60 Hertz |
Included Components
| Bottle Filler Included | No |
| Cooling Unit | No |
| Color | Light Gray Granite |
| Color Tone | Greys |
