About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

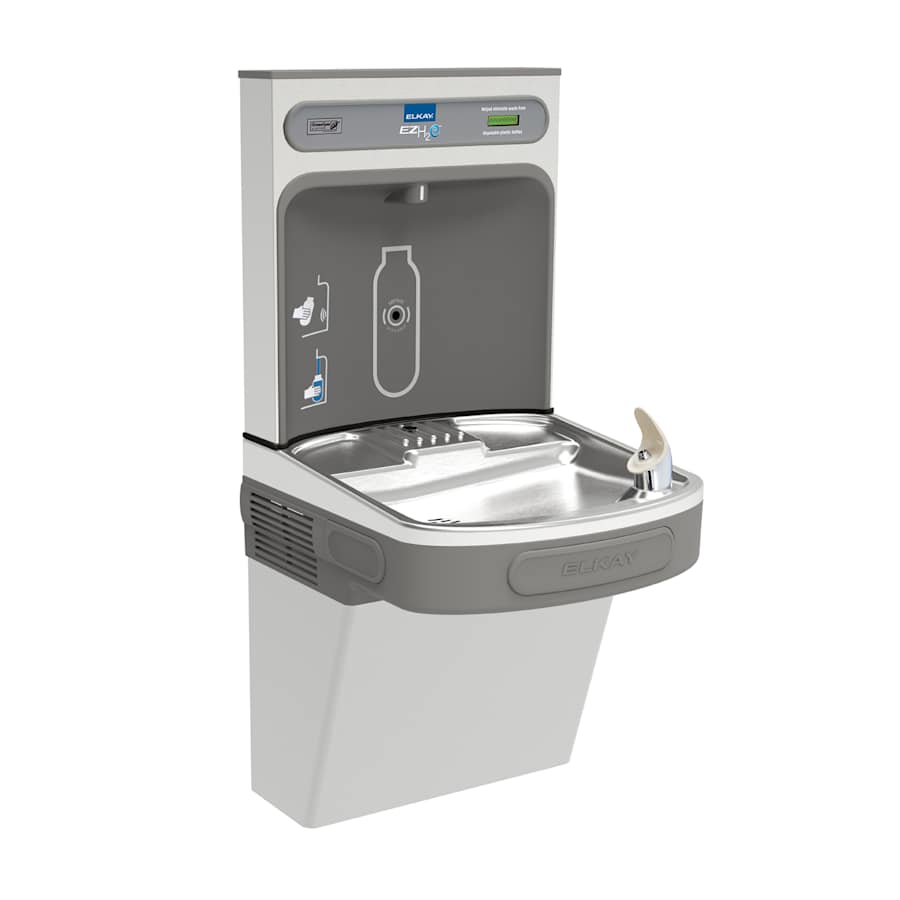

Elkay EZSDWSSK Features:
Complete bottle filling station in a consolidated space saving ADA compliant design
Silver Ion anti-microbial protection
Quick fill 1.5 gpm non-refrigerated unit
Laminar flow provides minimal splash
Real drain system eliminates standing water
Covered under Elkay’s 1 year limited warranty for electrical components
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Frame – Galvanized structural steel chassis provides structural integrity and fastens to the wall
Note: this model does not include the cooling unit – for unit with built in cooler order EZS8WSSK
Elkay EZSDWSSK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZSDWSSK Specifications:
Height: 39-1/8″ (measured from lowest rim to top rim of fixture)
Width: 19″ (measured from back to front of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Number of Stations: 1
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.125 in. |
| Width | 19 in. |
| Length | 18.375 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Location Rating | Dry Location |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Outdoor Approved | No |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Control Type | Bar |
| Vandal Resistant | No |
| Energy Efficient | Yes |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
