About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

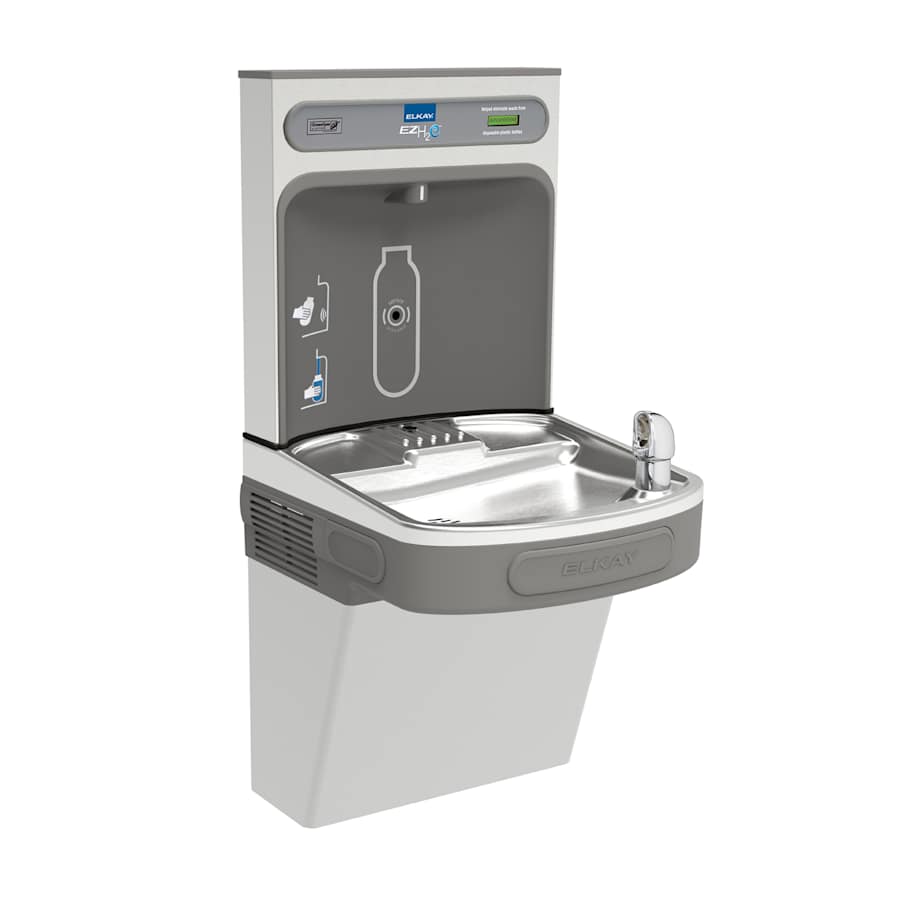

Elkay EZSDWSVRSK Features:
Complete cooler and bottle filling station in a consolidated space saving ADA compliant design
Vandal-resistant Stream saver Bubbler
Silver Ion anti-microbial protection
Quick fill 1.5 gpm non-refrigerated unit
Real drain system eliminates standing water
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Frame – Galvanized structural steel chassis provides structural integrity and fastens to the wall
Elkay EZSDWSVRSK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZSDWSVRSK Specifications:
Fountain Type: Non-Refrigerated
Installation Type: Wall Mounted
Height: 39-1/8″ (measured from lowest rim to top rim of fixture)
Width: 19″ (measured from back to front of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Bottle Filler: Yes
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Number of Stations: 1
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.0625 in. |
| Width | 19 in. |
| Length | 18.375 in. |
| Product Weight | 42 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Energy Efficient | Yes |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| Frequency | 60 Hertz |
| Wattage | 15 |
| Voltage | 115 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
