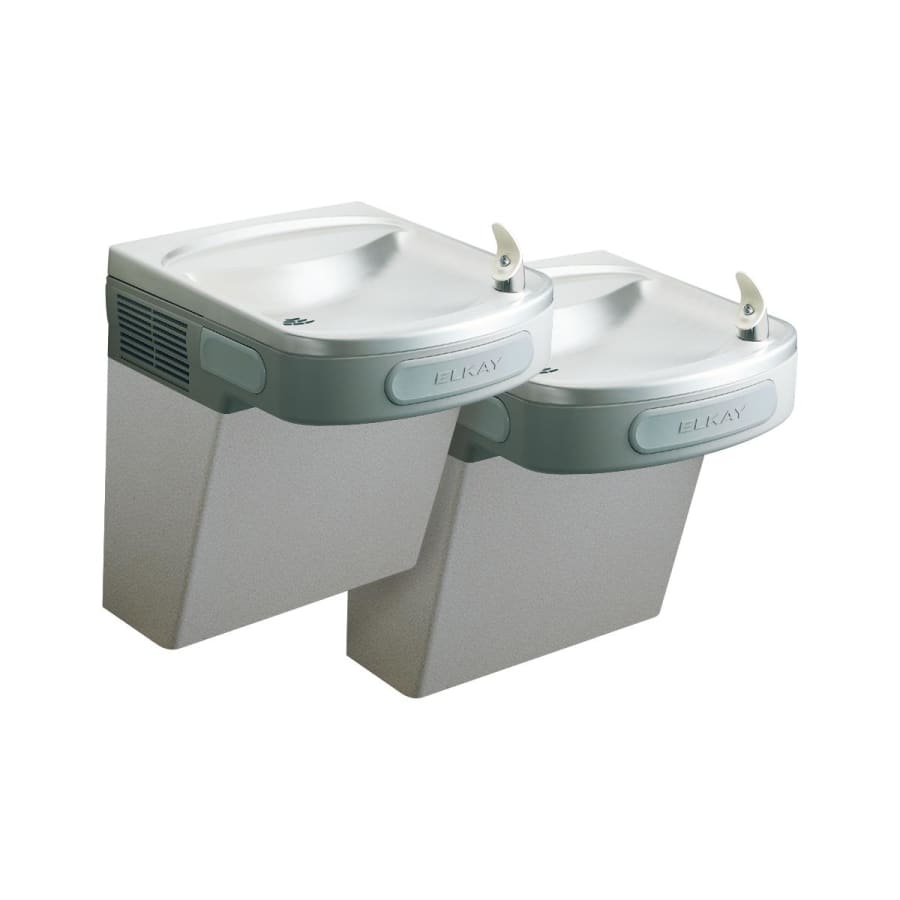

Elkay 8 GPH ADA Wall Mount Versatile Bi-Level Barrier Free Cooler with Prepped Glass Filler and Cane Apron
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Reversible, two-level self-contained wall hung water cooler
Electric refrigerated

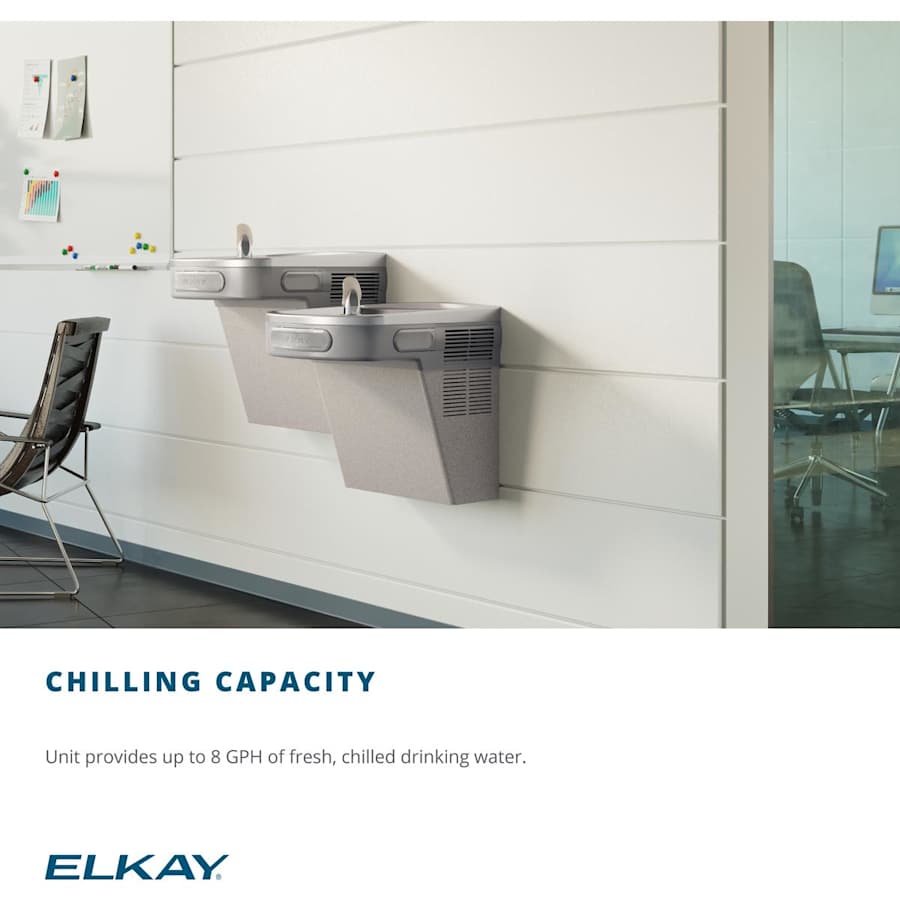

Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Self closing Easy-Touch controls on front, left and right sides
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
ADA compliant
No lead design
Construction

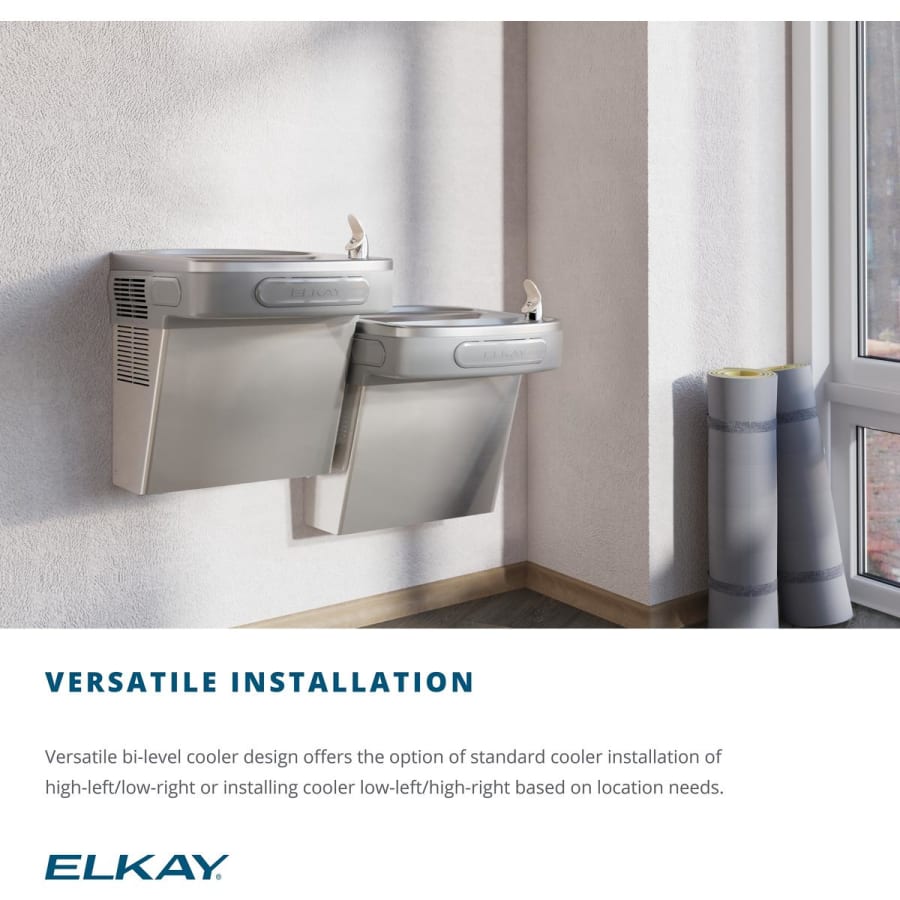

New: Elkay’s Versatile engineering allows custom configuration to meet every need. Flexible design allows reversible low-high or high-low installation.
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall. Provides increased structural integrity and rigidity to cooler
Stainless steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners

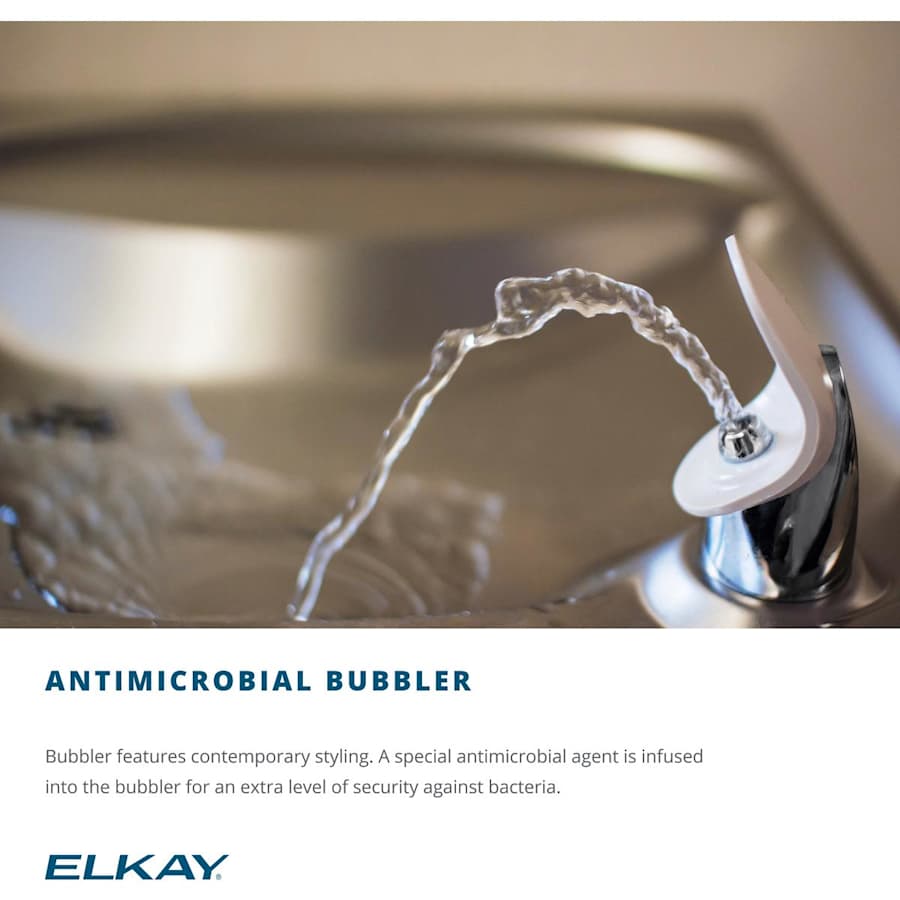

Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Upper Shroud – Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
Lower Shroud – One piece easy to remove and replace. Allows access to internal components from three sides, available in 2 finishes
Wall mounting Frame – MF200 frame furnished with each unit. Frame allows flush mounting to finished wall
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Flow Rated: 8.0
Rated Watts: 370
Full Load Amps: 4.0
Fountain Type: Cooler
Shipping Weight: 89 lbs
Installation Type: Wall
Hands Free Operation: No
Voltage: 115V/60Hz
Height: 18-13/16″
Width: 36-3/4″
Depth: 19″
Foot Pedal: No

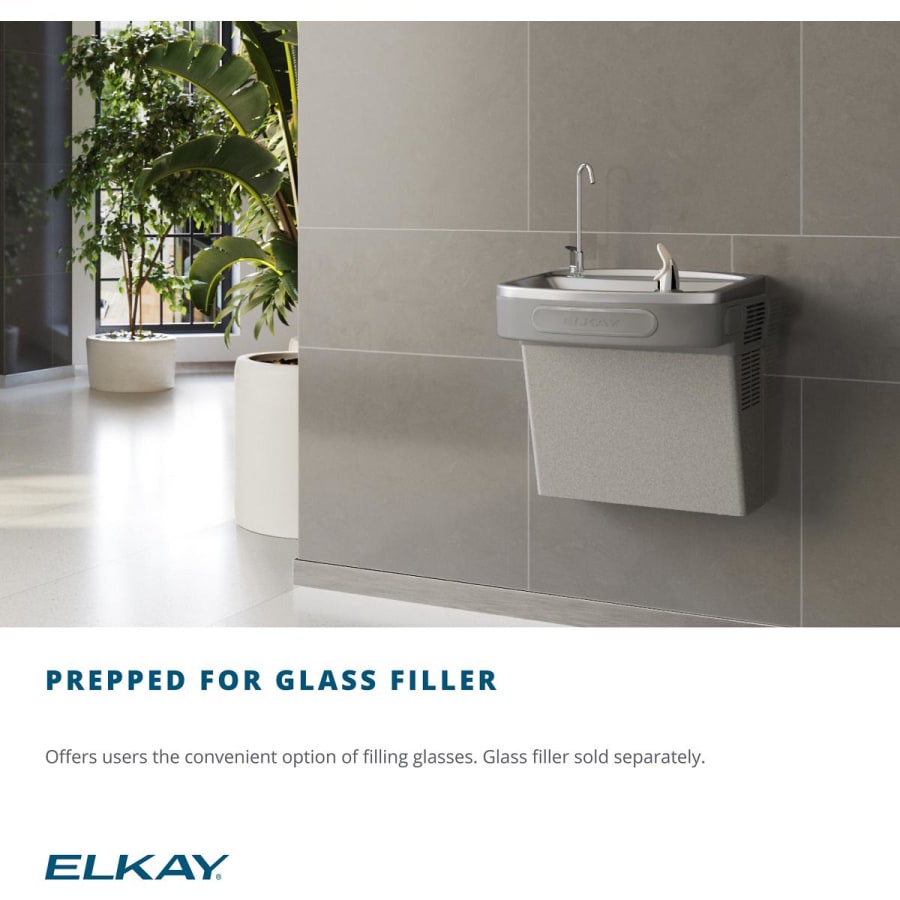

Glass Filler: Yes
Vandal Resistant Bubbler: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 25.3125 in. |
| Length | 36.75 in. |
| Product Weight | 72 lbs. |
| Width | 19 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Control Type | Bar |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | No |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| ASSE Code | A112.19.3 |
| Wattage | 370 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 2 |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
