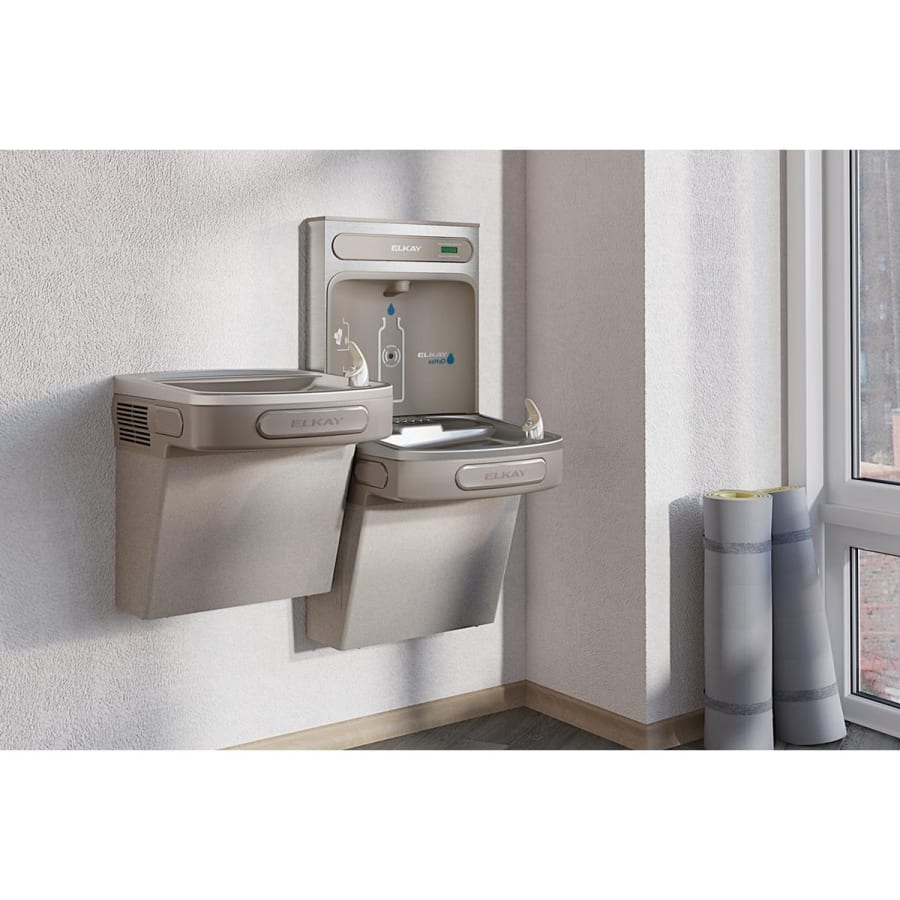

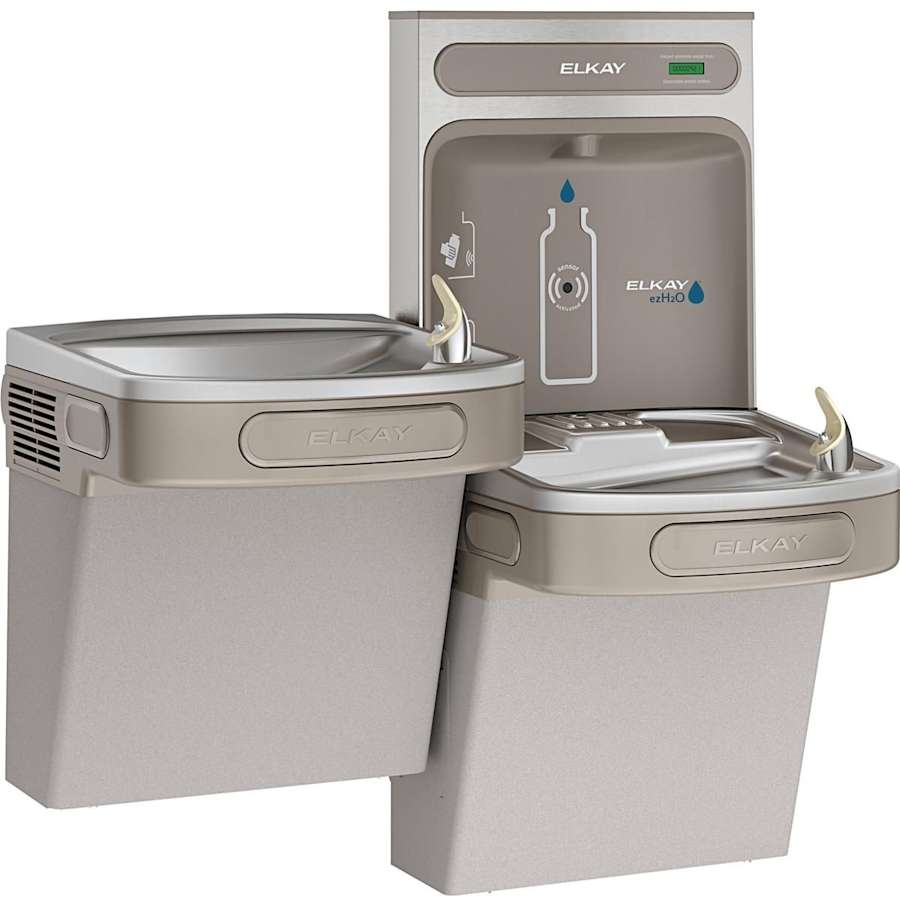

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. New versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.
Elkay EZSTL8WSLK Features:
Touchless, sensor activation (bottle filler) and push-bar activation (bubbler) designed for easy use
Fill rate is 1.1 GPM
Green Ticker informs user of number of 20 oz plastic water bottles saved from waste
Laminar flow provides clean fill with minimal splash
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Real drain system eliminates standing water
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms
Rated for indoor use
Elkay EZSTL8WSLK Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Filters: With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Elkay EZSTL8WSLK Specifications:
Height: 44-1/8″ (measured from lowest rim to top rim of fixture)
Width: 19″ (measured from back to front of fixture)
Length: 36-3/4″ (measured from most left to most right rim of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Hands Free Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Voltage: 115V/60Hz
Cane Apron: Yes
Filter: No
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Product Weight | 68 lbs. |
| Height | 39.0625 in. |
| Width | 19 in. |
| Length | 36.75 in. |
| Flow Rate (GPM) | 0.13 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Vandal Resistant | No |
| Energy Efficient | Yes |
| Control Type | Bar |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | CSA, NSF, ANSI, ASME, UL |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 370 |
| Amperage | 5 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
