About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

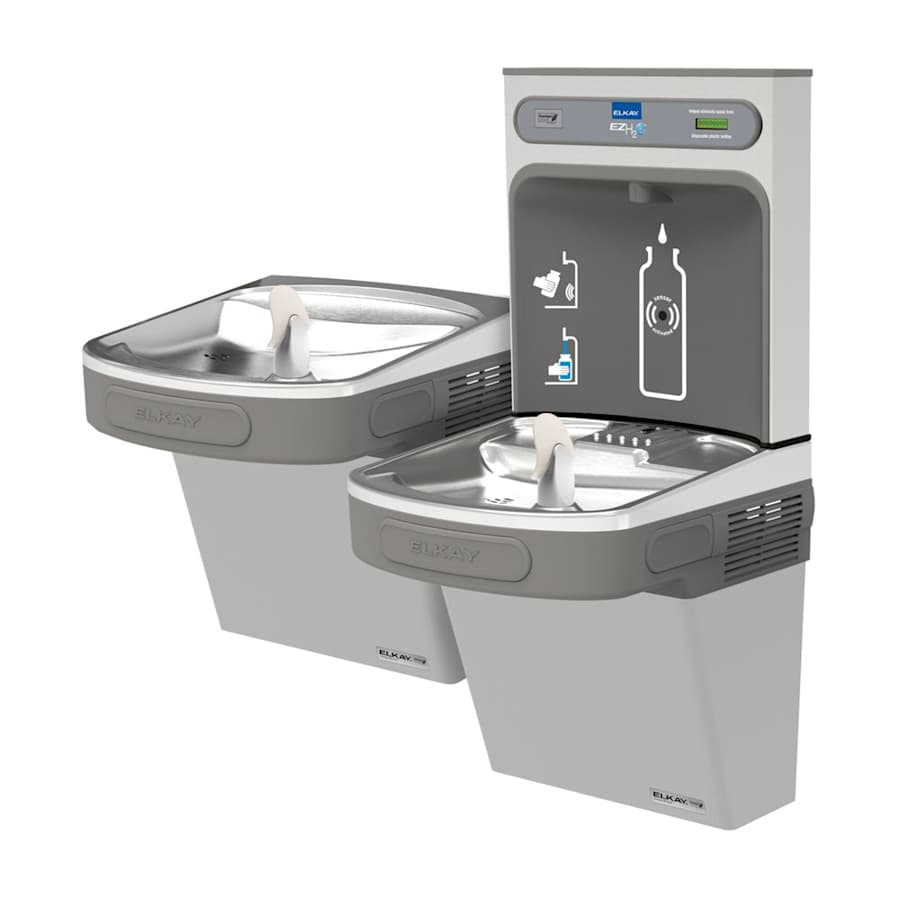

Elkay EZSTLDDWSLK Features:
Complete drinking fountain and bottle filling station in a consolidated space saving ADA compliant design

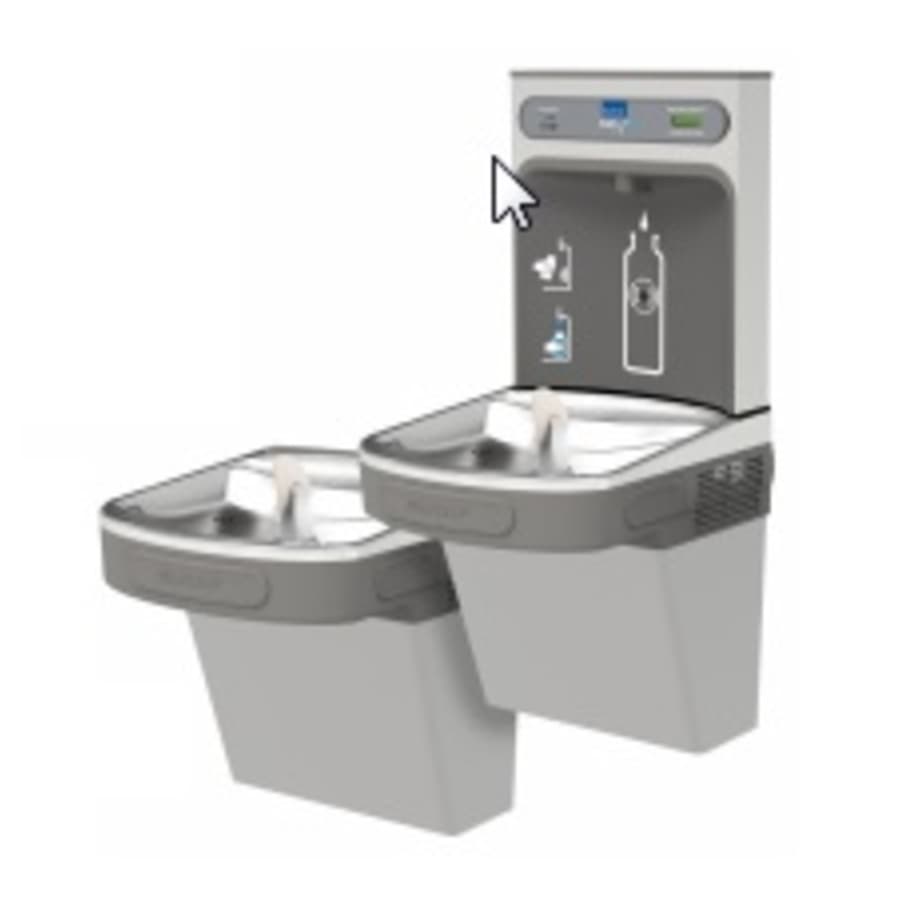

New: Elkay’s Versatile engineering allows custom configuration to meet every need. Flexible design allows reversible low-high or high-low installation.
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Vandal-resistant Stream saver Bubbler
Silver Ion anti-microbial protection
Secure mounting frame assembly included
Real drain system eliminates standing water
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Covered under Elkay’s 1 year limited warranty for electrical components
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Elkay EZSTLDDWSLK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZSTLDDWSLK Specifications:
Height: 44-5/8″ (measured from lowest rim to top rim of fixture)
Width: 36-3/4″ (measured from back to front of fixture)
Length: 19″ (measured from most left to most right rim of fixture)
Fountain Type: Fountain and Bottle Filler
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Number of Stations: 2
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.0625 in. |
| Product Weight | 91 lbs. |
| Width | 19 in. |
| Length | 36.75 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Bar |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Made in America | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 15 |
| Frequency | 60 Hertz |
| Amperage | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
