Product Features:
Reversible, two-level self-contained wall hung water cooler
Electric refrigerated
Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Self closing Easy-Touch controls on front, left and right sides
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
ADA compliant
No lead design
Construction

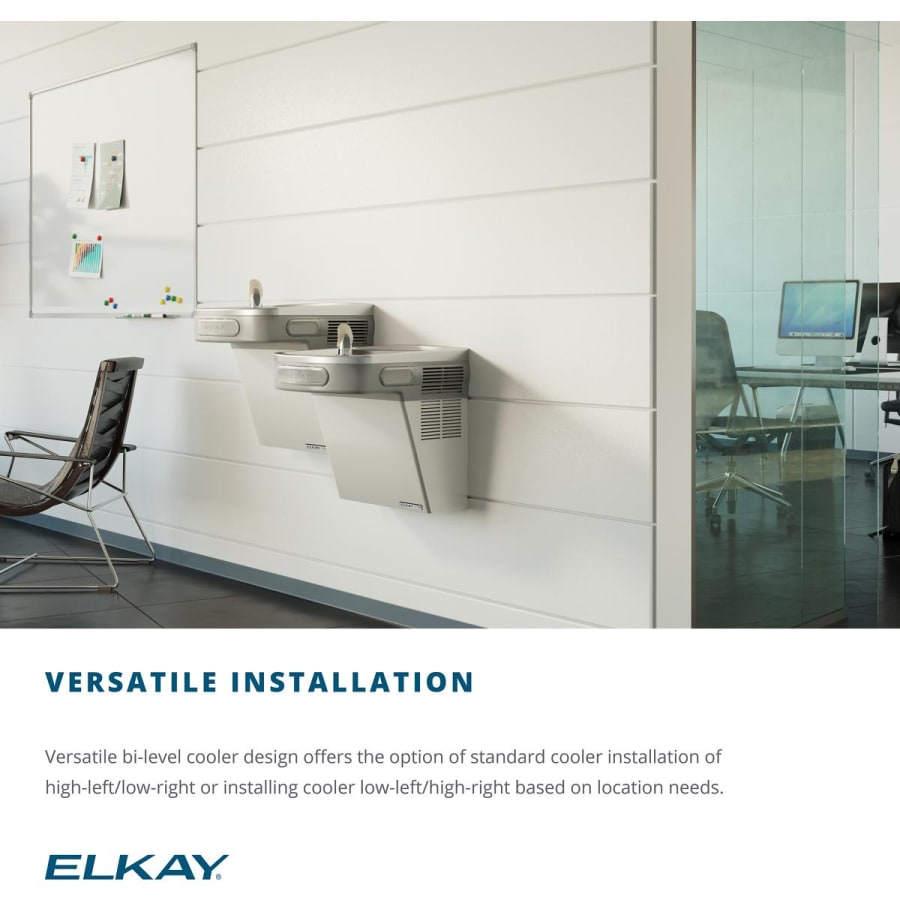

Elkay’s Versatile engineering allows custom configuration to meet every need. Flexible design allows reversible low-high or high-low installation.
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall. Provides increased structural integrity and rigidity to cooler
Stainless steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Upper Shroud – Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
Lower Shroud – One piece easy to remove and replace. Allows access to internal components from three sides, available in 2 finishes
Wall mounting Frame – MF200 frame furnished with each unit. Frame allows flush mounting to finished wall
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Flow Rated: 8.0
Rated Watts: 370
Full Load Amps: 4.0
Fountain Type: Cooler
Shipping Weight: 89 lbs
Installation Type: Wall
Hands Free Operation: No
Voltage: 115V/60Hz
Height: 20-3/8″(measured from lowest rim to top rim of cooler)
Width: 18-3/8″(width from most left to most right rim of single cooler)
Depth: 19″
Foot Pedal: No
Glass Filler: No
Vandal Resistant Bubbler: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 20.375 in. |
| Depth | 19 in. |
| Width | 18.375 in. |
| Flow Rate (GPM) | 8 |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Barrier Free | No |
| Hands Free | No |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Wattage | 370 |
| Voltage | 115 |
| Amperage | 4 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Temperature Control | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
