ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

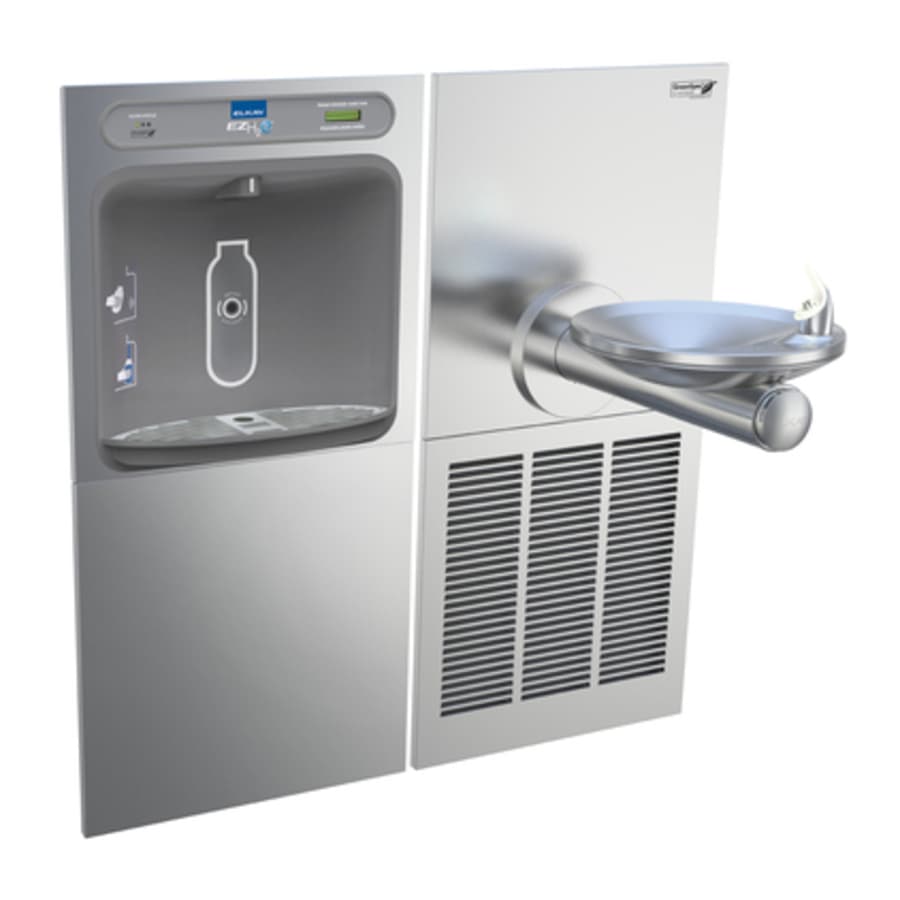

Elkay EZWS-SFGRN8K Features:
Integral bottle filling station and water fountain in an ADA compliant design
Constructed of stainless steel, ensuring durability and dependability
Vandal-resistant, easy to operate front push-button control
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Silver Ion anti-microbial protection
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Secure mounting frame assembly included
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkays 5 year limited warranty for unit’s refrigeration system and 1 year limited warranty for electrical components
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Removable louvered ventilating encloses refrigeration unit and grill encloses refrigeration unit and plumbing
Elkay EZWS-SFGRN8K Technologies / Benefits:
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZWS-SFGRN8K Specifications:
Height: 41-3/4″ (measured from lowest rim to top rim of fixture)
Length: 39-1/2″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Installation Type: Recessed/Wall Mounted
Fountain Type: Refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Number of Stations: 2
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 40.8125 in. |
| Width | 19 in. |
| Length | 39.5 in. |
| Product Weight | 122 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Insulation Type | Recessed, Wall Mounted |
| Material | ABS, Stainless Steel |
| Energy Efficient | Yes |
| Bubbler Type | FlexiGuard StreamSaver |
| Control Type | Push Button |
| Filtered | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| Frequency | 60 Hertz |
| Wattage | 260 |
| Voltage | 115 |
| Amperage | 3.8 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
