About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

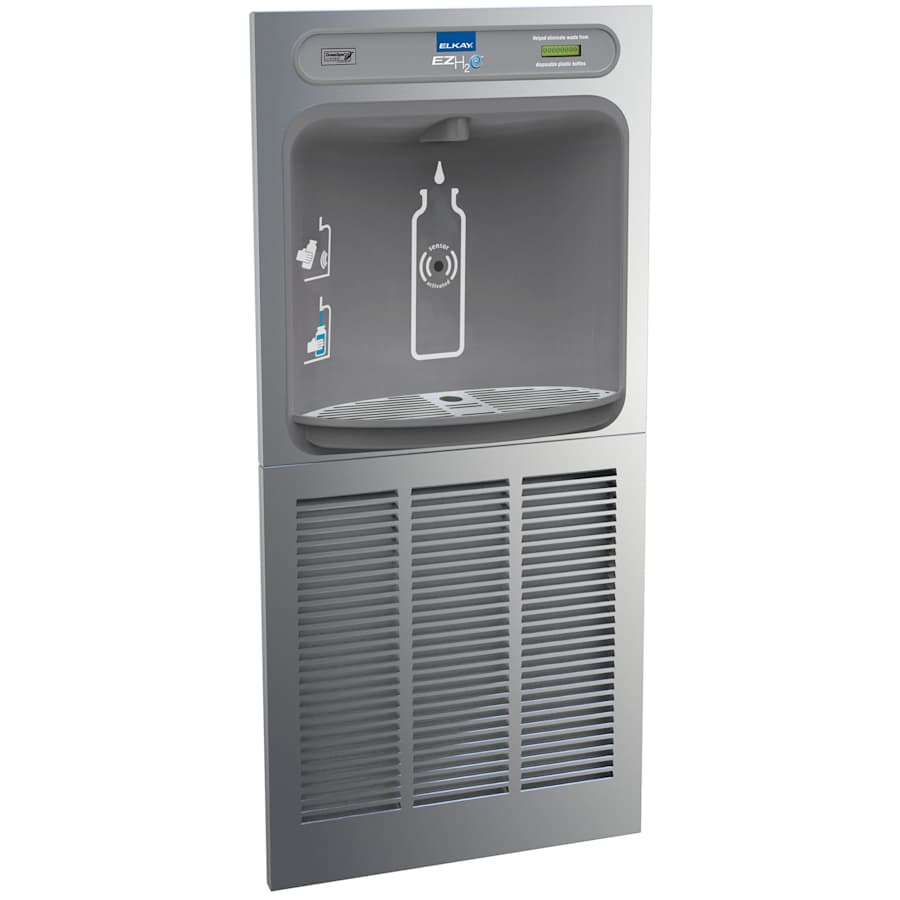

Elkay EZWSGRN8K Features:
Single station bottle filling unit with cooler in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkays 5 year limited warranty for unit’s refrigeration system and 1 year limited warranty for electrical components
Stainless steel bottle filler wrapper with ABS plastic alcove
Secure mounting frame assembly included
Elkay EZWSGRN8K Technologies / Benefits:
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZWSGRN8K Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Elkay EZWSGRN8K Specifications:
Height: 40-13/16″ (measured from lowest rim to top rim of fixture)
Length: 19-3/4″ (measured from most left to most right rim of fixture)
Depth: 2-7/8″ (measured from back to front of fixture)
Installation Type: Recessed
Fountain Type: Cooler
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Voltage: 115V/60Hz
Number of Stations: 1
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 40.8125 in. |
| Product Weight | 76 lbs. |
| Width | 3.5 in. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Length | 19.75 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Material | ABS, Stainless Steel |
| Thermostat | Modern |
| Insulation Type | Recessed |
| Energy Efficient | Yes |
| Control Type | Electronic |
| Antimicrobial | Yes |
| Pet Friendly | No |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Hands Free | Yes |
| Voltage | 115 |
| Wattage | 260 |
| Amperage | 5 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| ADA | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| Collection | EZH2O |
| Location Rating | Dry Location |
| Approved for Commercial Use | Yes |
| ASSE Code | A112.19.3 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Manufacturer Warranty | 5 Year Limited |
| Made in America | Yes |
| Outdoor Approved | No |
| Cooling Unit | Yes |
| Bottle Filler Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
