About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

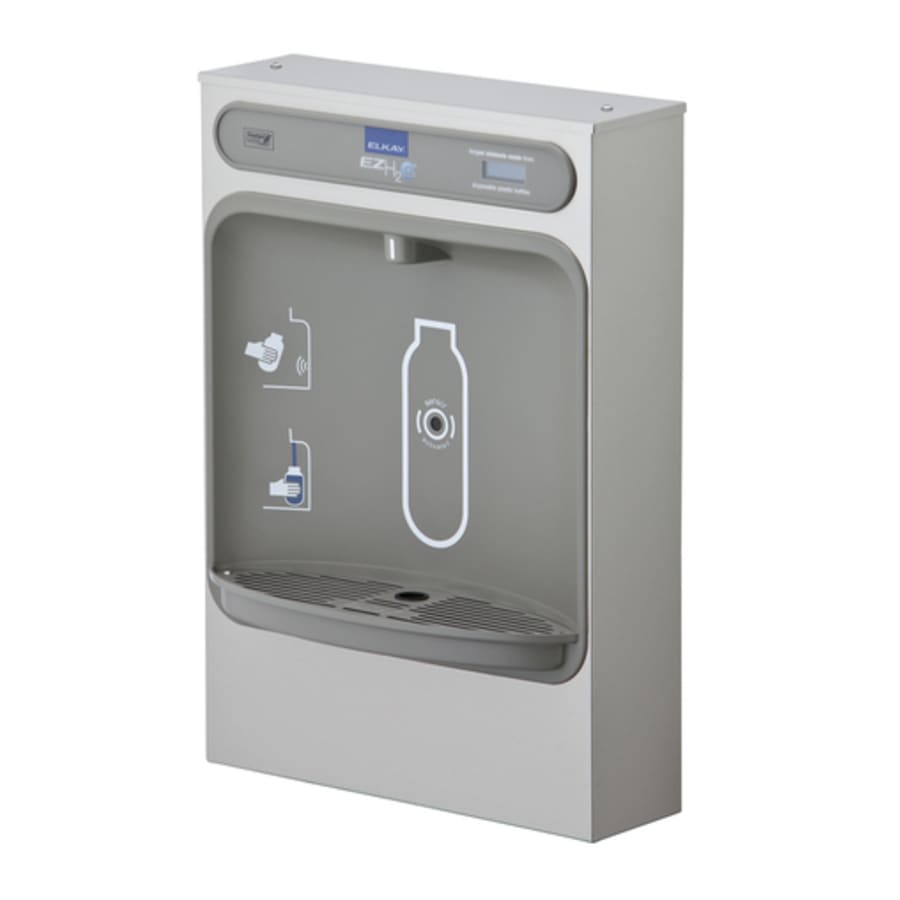

Elkay EZWSSM Features:
Installs directly onto wall with robust hanging bracket for applications with limited wall depth
Complete with drain
Sanitary, no-touch, sensor activation with automatic 20-second shut-off timer
Covered under Elkay’s 1 year limited warranty for electrical components
Silver ion anti-microbial protection
Quick fill 1.5 gpm non-refrigerated unit
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Includes hanging bracket for surface mount applications
Elkay EZWSSM Technologies / Benefits:
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay EZWSSM Specifications:
Height: 25-7/16″
Width: 17-13/16″
Installation Type: Wall
Hands Free Operation: Yes
ADA Compliant: Yes
Height: 25-7/16″ (measured from lowest rim to top rim of fixture)
Length: 17-15/16″ (measured from most left to most right rim of fixture)
Width: 8-3/16″ (measured from back to front of fixture)
Fountain Type: Non-Refrigerated
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Voltage: 115V/60Hz
Number of Stations: 1
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 25.4375 in. |
| Width | 8.1875 in. |
| Length | 17.9375 in. |
| Product Weight | 18 lbs. |
| Flow Rate (GPM) | 1.5 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Insulation Type | Wall Mounted |
| Material | ABS, Stainless Steel |
| Bubbler Type | No Bubbler |
| Control Type | Electronic |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Energy Efficient | Yes |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Wattage | 15 |
| Voltage | 115 |
| Amperage | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
