Product Features:

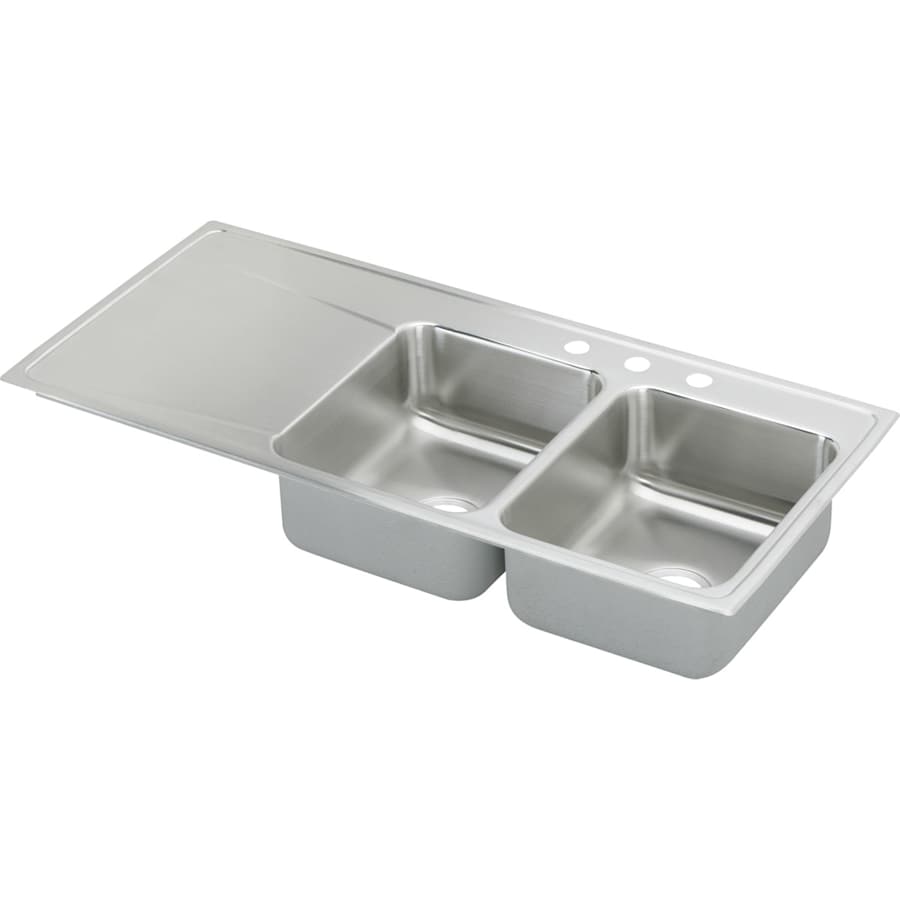

Double basin sink with a 50/50 split provides increased versatility for any task
Covered under limited lifetime residential
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode
Drop in installation is a quick and simple process
Center drain location provides optimal drainage capability
Product Technologies / Benefits:
Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.

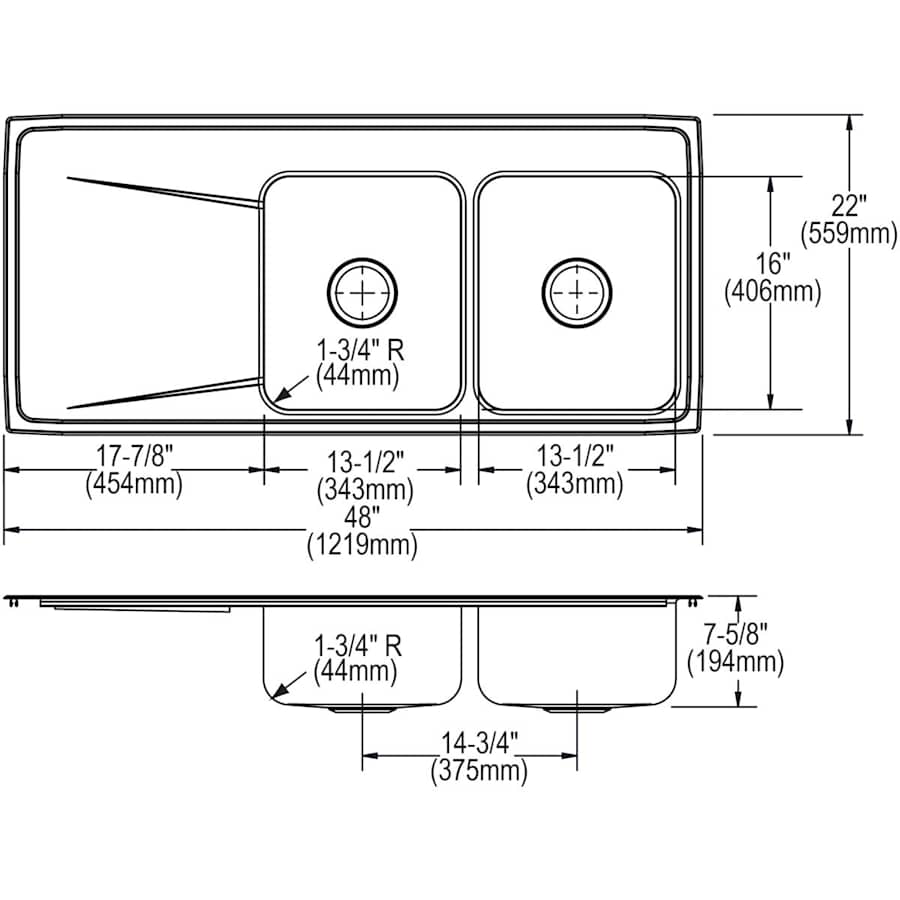

Specifications:
Height: 7-5/8″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 48″ (measured from the left outer rim to the right outer rim)
Basin Width: (measured from the back inner rim to the front inner rim)
Left: 16″
Right: 16″
Basin Length: (measured from the left inner rim to the right inner rim)
Left: 13-1/2″
Right: 13-1/2″
Basin Depth: (measured from the center of basin to the rim)
Left: 7-1/2″
Right: 7-1/2″
Installation Type: Drop In
Number of Faucet Holes: 1-5
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 51″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 7.625 in. |
| Width | 22 in. |
| Length | 48 in. |
| Backplate Depth | 7.5 in. |
| Faucet Centers | 0, 12, 16, 4, 8 in. |
| Nominal Length | 48 in. |
| Sink Length | 48 in. |
| Faucet Hole Size | 1.5 in. |
| Drain Connection | 3.5 in. |
| Nominal Width | 22 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 51 in. |
| Basin Depth (Left) | 7.5 in. |
| Basin Depth (Right) | 7.5 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Right) | 16 in. |
| Basin Length (Left) | 13.5 in. |
| Basin Width (Left) | 16 in. |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center |
| Faucet Holes | 1, 2, 3, 4, 5 |
| Number Of Bathers | 2 |
| Overflow | No |
| Sink Shape | Rectangular |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | 50/50 |
| Undercoating | Yes |
| ADA | No |
| Approved for Commercial Use | No |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime Residential |
| Made in America | Yes |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Drainboard | Yes |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes (Middle Right), 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes, No Faucet Holes |
| Color Tone | Whites |
