Product Features:
Double basin sink with a 50/50 split provides increased versatility for any task
Covered under limited lifetime residential
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode
Drop in installation is a quick and simple process
Rear drain location increases workspace area in the sink as well as storage space underneath
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

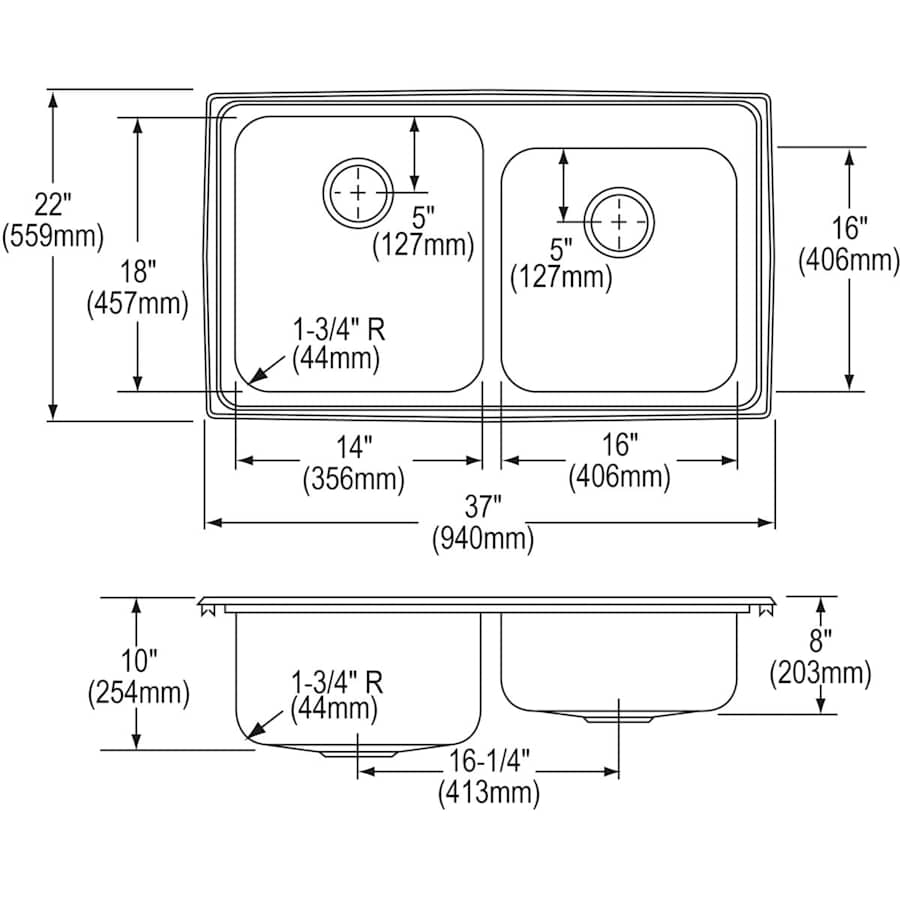

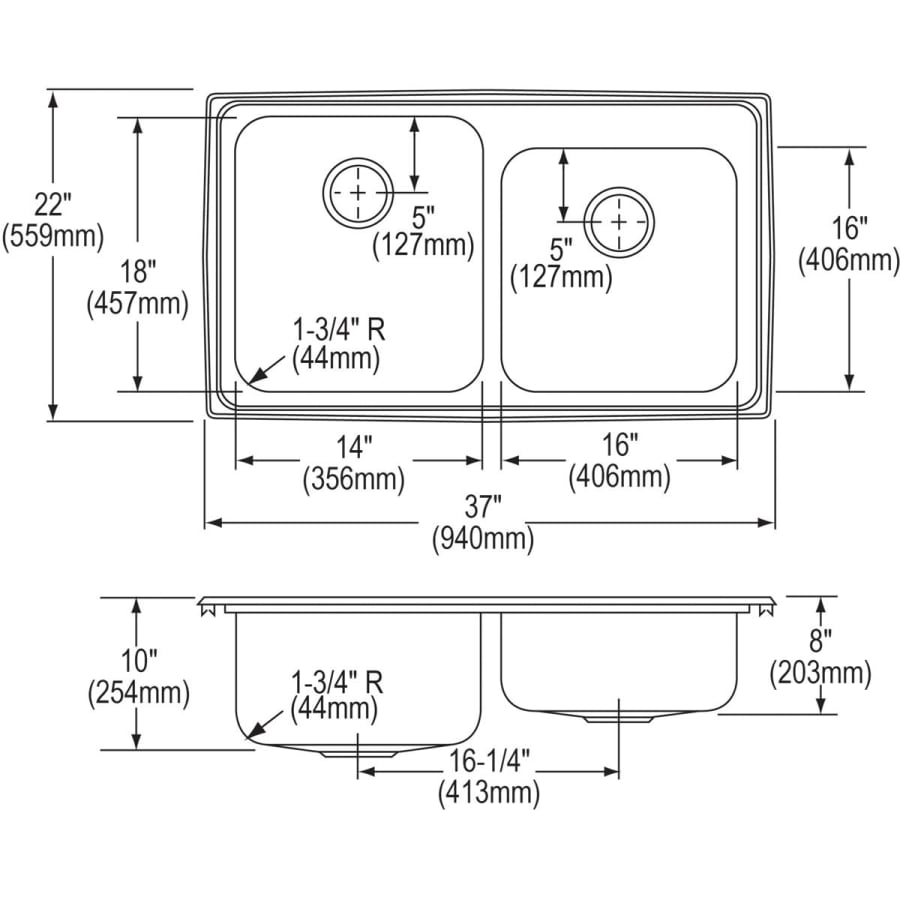

Specifications:
Height: 10″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 37″ (measured from the left outer rim to the right outer rim)
Basin Width: (measured from the back inner rim to the front inner rim)
Left: 18″
Right: 16″
Basin Length: (measured from the left inner rim to the right inner rim)
Left: 14″
Right: 16″
Basin Depth: (measured from the center of basin to the rim)
Left: 9-7/8″
Right: 7-7/8″
Installation Type: Drop In
Number of Faucet Holes: 1-4
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 42″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Faucet Holes | 1, 2, 3, 4 |
| Drain Placement | Rear |
| Basin Split | 50/50 |
| Farmhouse | No |
| Number Of Bathers | 2 |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Corner Sink | No |
| Overflow | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Country Of Origin | USA |
| Made in America | Yes |
| ADA | No |
| Height | 10 in. |
| Width | 22 in. |
| Faucet Centers | 0, 12, 4, 8 in. |
| Length | 37 in. |
| Nominal Width | 22 in. |
| Nominal Length | 37 in. |
| Faucet Hole Size | 1.5 in. |
| Backplate Depth | 9.875, 7.875 in. |
| Drain Connection | 3.5 in. |
| Minimum Cabinet Size | 42 in. |
| Sink Length | 37 in. |
| Gauge | 18 |
| Basin Depth (Left) | 9.875 in. |
| Basin Depth (Right) | 7.875 in. |
| Basin Length (Left) | 14 in. |
| Basin Length (Right) | 16 in. |
| Basin Width (Left) | 18 in. |
| Basin Width (Right) | 16 in. |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Faucet Included | No |
| Color | 2 Faucet Holes (Split) |
| Color Tone | Whites |
