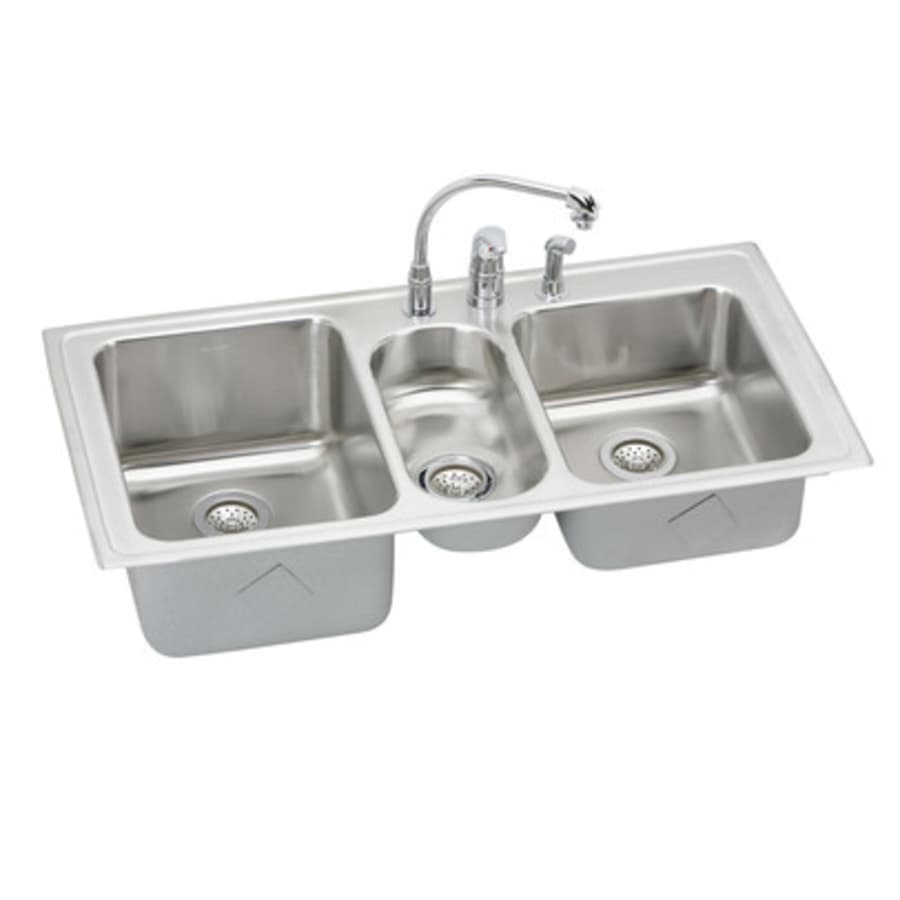

Elkay LGR4322C Features:
Constructed of 18-gauge T-304 grade stainless steel
Triple basin sink with a 40/20/40 split increases versatility
Designed for drop in installations
Basins are undercoated and padded to prevent dish clatter and cabinet condensation
Rear drain location increases storage space underneath
CA low flow compliant faucet included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

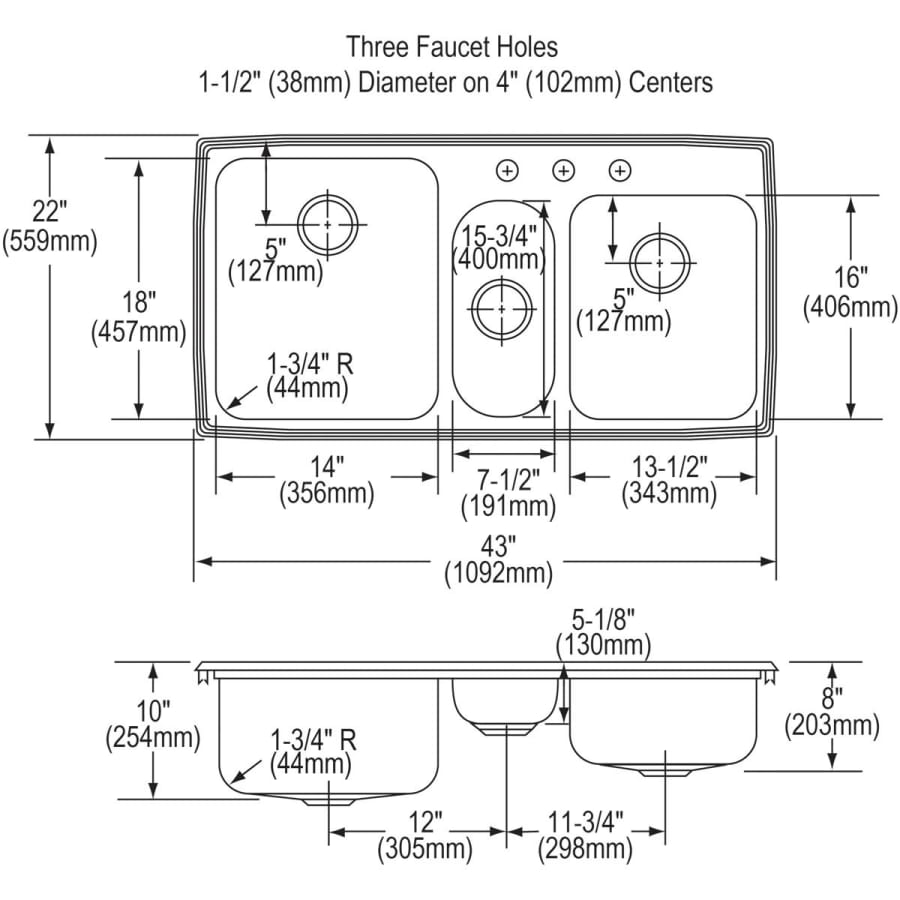

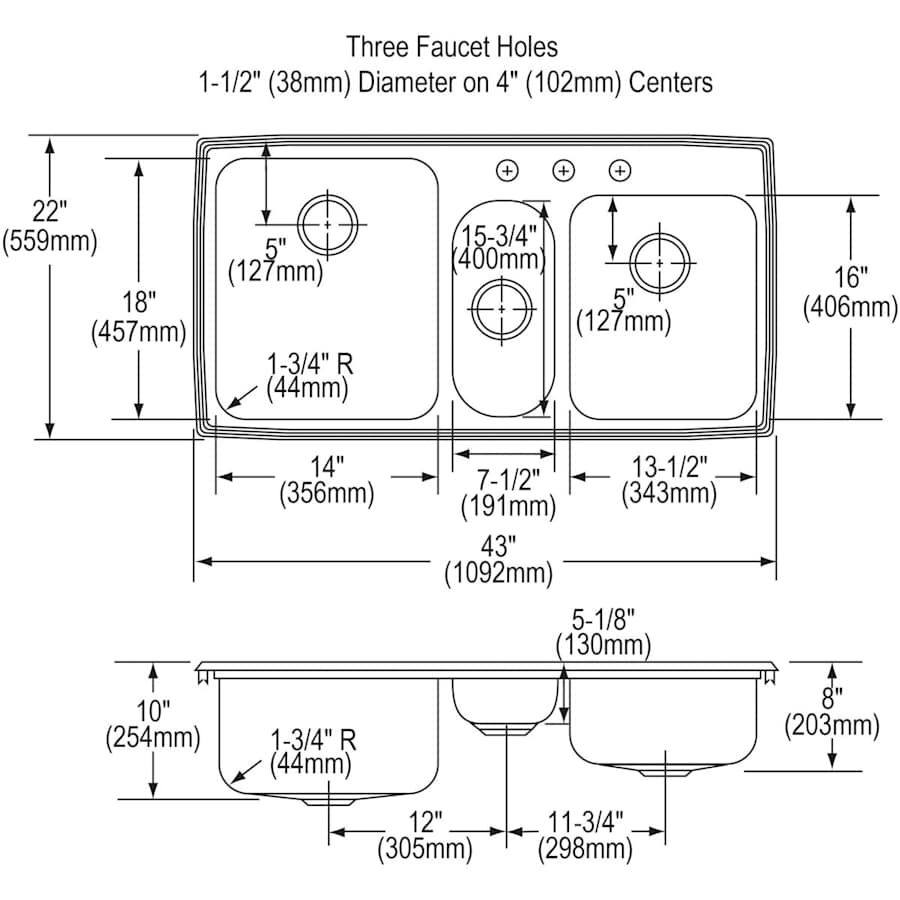

Elkay LGR4322C Specifications:
Height: 10″ (measured from bottom of sink to top of rim)
Length: 43″ (measured from left outer rim to right outer rim)
Width: 22″ (measured from back outer rim to front outer rim)
Basin Depth (left): 9-7/8″ (measured from center of basin to rim)
Basin Length (Left): 14″ (measured from left outer rim to right outer rim)
Basin Width (Left): 18″ (measured from back outer rim to front outer rim)
Basin Depth (Center): 5″ (measured from center of basin to rim)
Basin Length (Center): 7-1/2″ (measured from center of basin to rim)
Basin Width (Center): 15-3/4″ (measured from back outer rim to front outer rim)
Basin Depth (Right): 7-7/8″ (measured from center of basin to rim)
Basin Length (Right): 13-1/2″ (measured from left outer rim to right outer rim)
Basin Width (Right): 16″ (measured from back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 48″
Basin Split: 40/20/40
Drain Connection: 3-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 10 in. |
| Length | 43 in. |
| Product Weight | 38 lbs. |
| Width | 22 in. |
| Basin Depth (Center) | 5 in. |
| Basin Length (Center) | 7.5 in. |
| Basin Width (Center) | 15.75 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 8 in. |
| Nominal Length | 43 in. |
| Nominal Width | 22 in. |
| Gauge | 18 |
| Sink Length | 43 in. |
| Basin Depth (Left) | 9.875 in. |
| Basin Depth (Right) | 7.875 in. |
| Basin Length (Left) | 14 in. |
| Basin Width (Left) | 18 in. |
| Minimum Cabinet Size | 48 in. |
| Basin Length (Right) | 13.5 in. |
| Basin Width (Right) | 16 in. |
| Sink Width | 22 in. |
| Installation Hardware Included | Yes |
| Drain Assembly Included | No |
| Faucet Included | Yes |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Cutting Board Included | No |
| Material | Stainless Steel |
| Overflow | No |
| Thermostat | Traditional |
| Drain Placement | Center, Rear |
| Insulation Type | Drop In |
| Sink Shape | Rectangular |
| Basin Split | 40/20/40 |
| Number Of Bathers | 3 |
| Sound Dampening | Yes |
| Apron Front | No |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| Sink Material | Stainless Steel |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Collection | Gourmet, Gourmet Package |
| Series | Sound Guard |
| CA Drought Compliant | Yes |
| Certifications | CSA, ASME |
| Lead Leaching Certified NSF/ANSI 61 | No |
| Faucet Manufacturer | Elkay |
| Sink Manufacturer | Elkay |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
