Elkay Gourmet Lustertone Stainless Steel 17″ x 22″ Double Basin Top Mount Kitchen Sink Package
Highest quality sink formed of 18 gauge nickel bearing stainless steel.
Product Features:
Top mount
Single basin
Stainless steel
Coved corners: 1-3/4″ vertical and horizontal radius
Bowl and faucet deck recess: 3/16″ below outside edge of sink
Exposed surfaces are hand blended
Underside is fully protected by undercoating to dampen sound and prevent condensation
Faucet:
Three hole, dual handle concealed mount kitchen faucet
360° swing spout with restricted flow aerator and brass escutcheon
Chrome plated finish
Removable cartridge 1/2″ I.P. connections
Product Specifications:
Sink:
Installation Type: Top Mount
Material: Stainless Steel
Number of Basins: 1
Minimum Cabinet Size: 21″

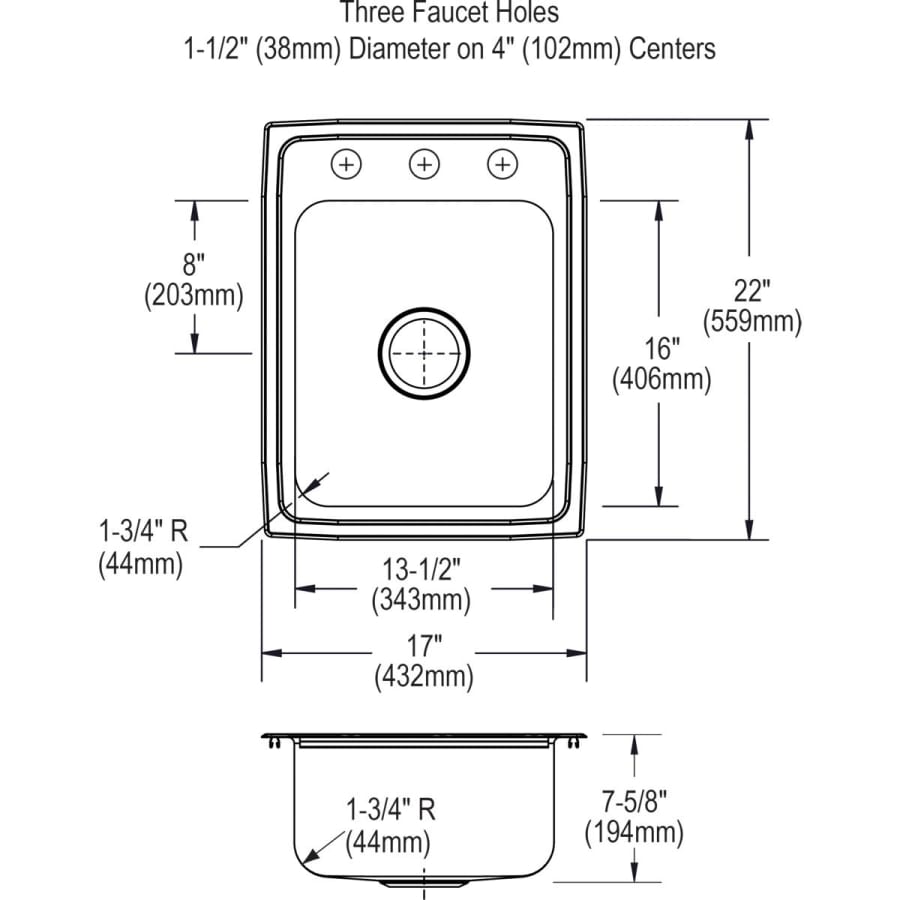

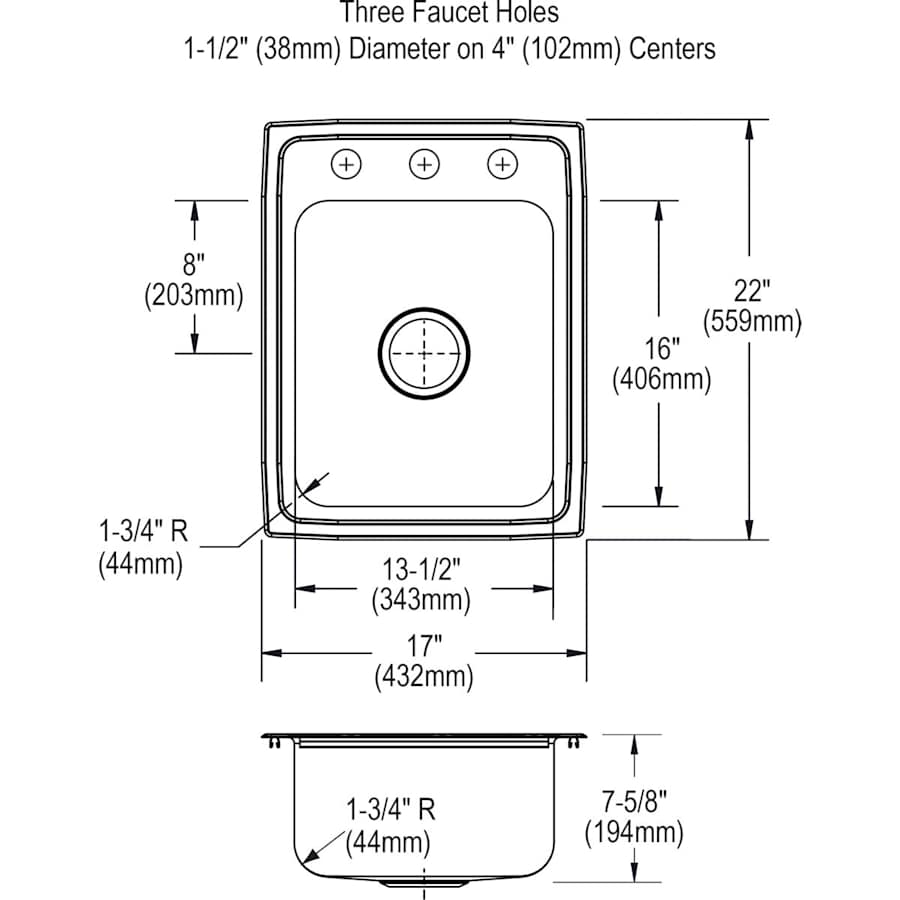

Sink Dimensions: 17″ L x 22″ W
Bowl Depth: 7-5/8″
Bowl Dimensions: 13-1/2″ L x 16″ W x 7-5/8″ D
Faucet Holes: 3
Drain Size: 3-1/2″
Faucet:
Mounting Type: Deck
Handles: 2
Handles Included: Yes
Handle Type: Lever Handles
Holes Required: Three 1-1/2″ Diameter Hole
Overall Height: 11″
Spout Height: 10″
Spout Reach: 8″
Maximum Countertop Thickness: 1-1/4″
Material: Brass
Valve Type: Qtr Turn Ceramic
Valve Connection: 1/2″-14 NPSM
Flow Rate: 2.5 GPM
Ship Wt: 19.8 lbs
Product Certifications and Compliances:
IAPMO Listed
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 17 in. |
| Height | 7.63 in. |
| Length | 20 in. |
| Nominal Length | 20 in. |
| Backplate Depth | 7.63 in. |
| Bar Length | 16 in. |
| Base Width | 13.5 in. |
| Faucet Centers | 4 in. |
| Nominal Width | 17 in. |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Contemporary |
| Faucet Holes | 3 |
| Number Of Bathers | 1 |
| Overflow | No |
| Sink Material | Stainless Steel |
| Sink Shape | Rectangular |
| Undercoating | Yes |
| Approved for Commercial Use | Yes, No |
| Collection | Gourmet, Gourmet Lustertone, Gourmet Package |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
