Product Features:
Rectangular basin gives a classically clean look to your bathroom countertop
Covered under Elkay’s limited lifetime warranty
Constructed of 18 gauge antimicrobial copper
Configured for a drop in installation which is both simple and quick
Center drain location provides optimal draining capability
Product Technologies / Benefits:
CuVerro®: Antimicrobial Copper that combines beauty and performance. It represents the only class of solid surface material registered with the U.S. Environmental Protection Agency (EPA) for its inherent ability to continuously kill more than 99.9% of the bacteria within two hours
Sound Guard®: This Sound Guard® undercoating reduces condensation and dampens sounds found in many Elkay sinks to significantly reduce the noise from clanging dishes and silverware, as well as undesirable noise caused by running water..

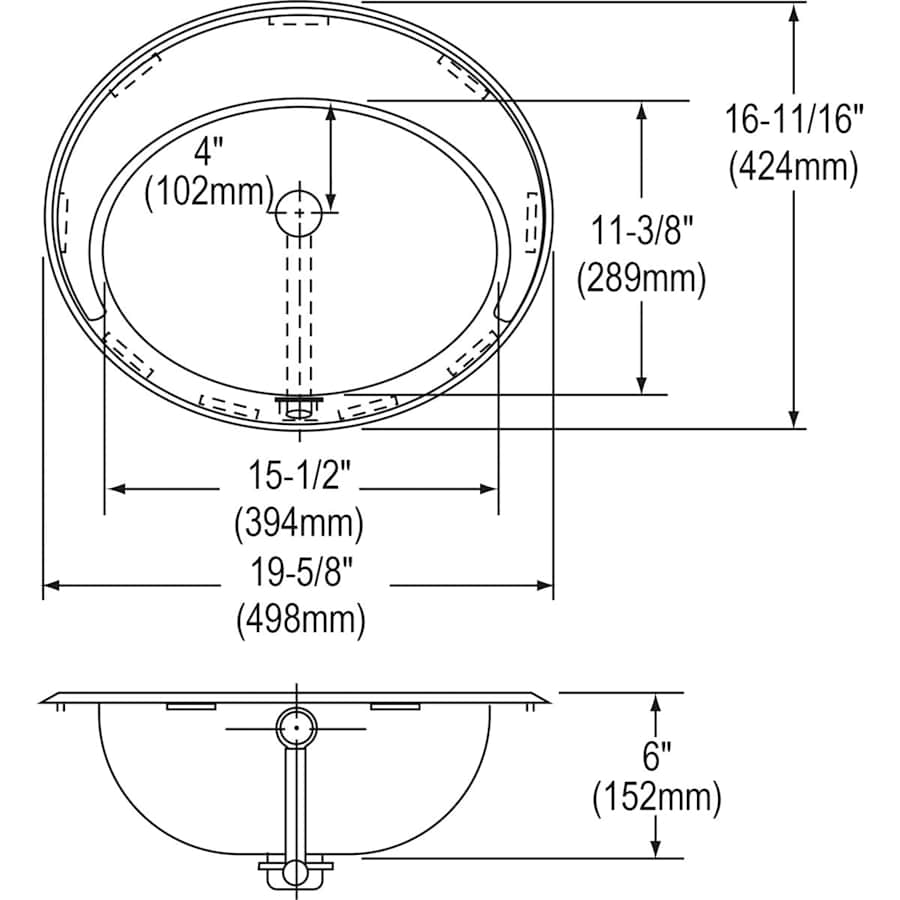

Specifications:
Height: 6″ (measured from the bottom of sink to the top of the rim)
Overall Width: 16-11/16″ (measured from the back outer rim to the front outer rim)
Overall Length: 19-5/8″ (measured from the left outer rim to the right outer rim)
Basin Width: 11-3/8″ (measured from the back inner rim to the front inner rim)
Basin Length: 15-1/2″ (measured from the left inner rim to the right inner rim)
Basin Depth: 6″ (measured from the center of basin to the rim)
Installation Type: Drop In
Number of Faucet Holes: 1
Drain Outlet Connection: 1-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Asana Collection
Specifications
| Drain Connection | 1.5 in. |
| Length | 19.625 in. |
| Nominal Length | 20 in. |
| Width | 16.6875 in. |
| Height | 6 in. |
| Nominal Width | 17 in. |
| Faucet Centers | 0 in. |
| Faucet Hole Size | 1.25 in. |
| Minimum Cabinet Size | 24 in. |
| Gauge | 18 |
| Backplate Depth | 6 in. |
| Bar Length | 15.5 in. |
| Base Width | 11.375 in. |
| Material | Copper |
| Insulation Type | Drop In |
| Faucet Holes | 1 |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Corner Sink | No |
| Farmhouse | No |
| Sink Shape | Rectangular, Oval |
| Sound Dampening | Yes |
| Overflow | No |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Made in America | Yes |
| Collection | Asana, CuVerro |
| Manufacturer Warranty | Limited Lifetime |
| Color | Copper |
