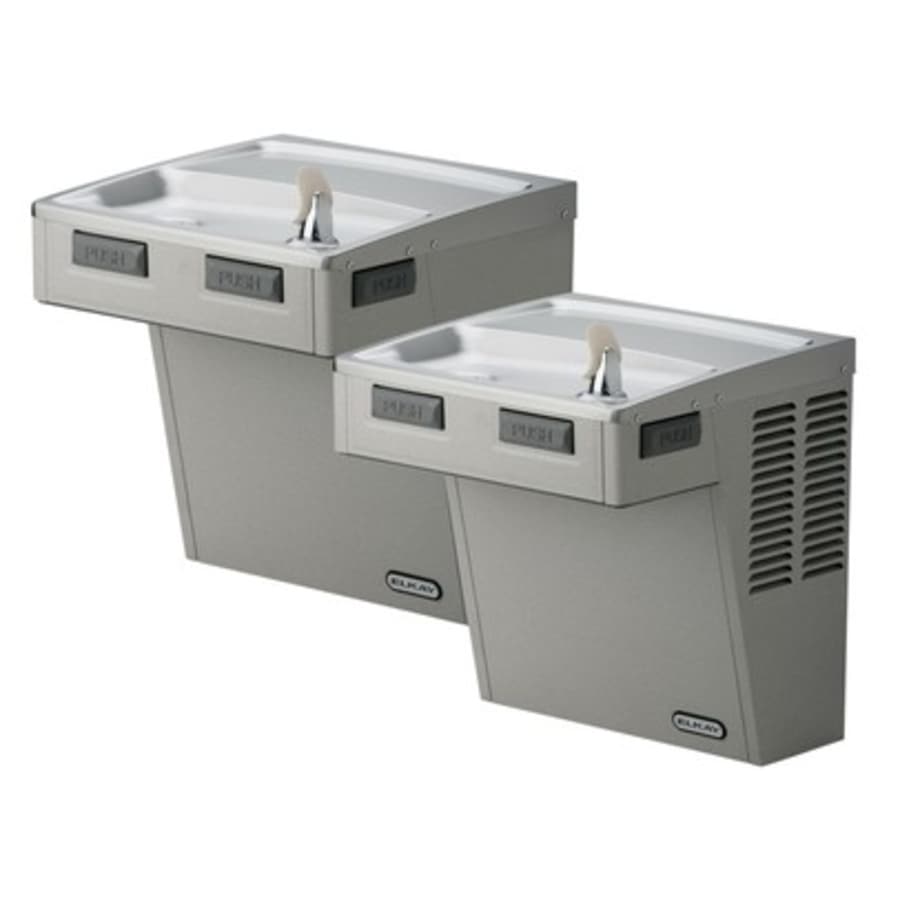

Elkay 8 GPH ADA Wall Mount Bi-Level Filtered Cooler with Mechanical Push Bar
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Two-level self-contained wall hung water cooler
Electric refrigerated
Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Hooded stream projector
Self closing push bars on front, left and right sides
Flow regulator provides constant stream from 20 to 105 psi water pressure
Non-pressurized cooling tank is standard
Non-pressurized water tank is located after bubbler valve (so that the tank is subject to line pressure only when push bar is pressed)
ADA compliant
No lead design
Watersentry VII Filter System
Construction
Frame – Galvanized structural steel chassis supports fountain top and cabinet panels
Fountain Top – One piece stainless steel top, basin has embossed bubbler pad
Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with standard screws
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Flow Rated: 8.0
Rated Watts: 370
Full Load Amps: 4.0
Fountain Type: Cooler
Shipping Weight: 96 lbs
Installation Type: Wall
Hands Free Operation: No
Voltage: 115V/60Hz
Height: 27-3/16″
Width: 18″
Depth: 18-5/8″
Foot Pedal: No
Glass Filler: No
Vandal Resistant Bubbler: No
Filter: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 27 in. |
| Width | 18.625 in. |
| Product Weight | 96 lbs. |
| Length | 36.25 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 9.7 GPH |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Bar |
| Bubbler Type | FlexiGuard Safety |
| Filtered | Yes |
| Number of Stations | 2 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Location Rating | Dry Location |
| Certifications | NSF, ANSI, ASME, UL |
| ASSE Code | A112.19.3 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Outdoor Approved | No |
| Wattage | 370 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 4 |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
