About ezH20:

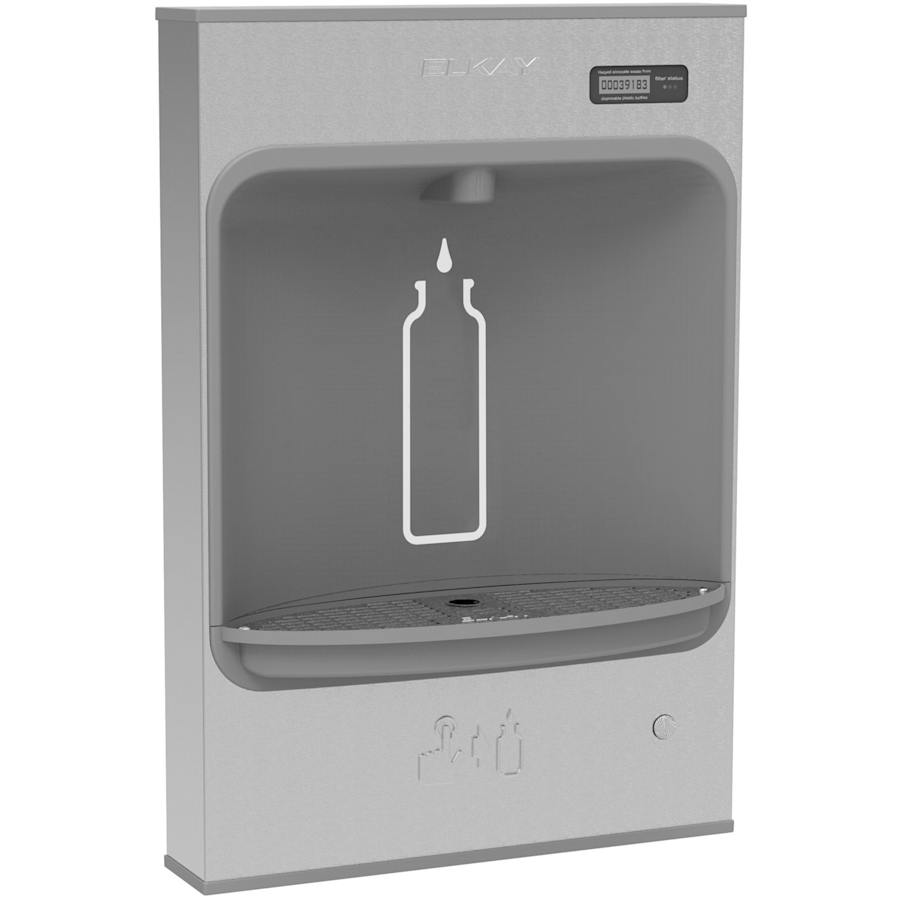

ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.
Elkay LMASMB Features:
Single station non-refrigerated bottle filling unit in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Push-button activation delivers 1.0 gpm
Battery-powered visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Stainless steel bottle filler wrapper with ABS plastic alcove
Includes robust hanging bracket for surface mount
Elkay LMASMB Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to getoperational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LMASMB Specifications:
Height: 25-7/8″ (measured from lowest rim to top rim of fixture)
Length: 17-7/8″ (measured from most left to most right rim of fixture)
Depth: 6-1/4″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: No
Bottle Filler Flow Rate(GPM): .5
Filter: Yes
Number of Stations: 1
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Energy Efficient | Yes |
| Control Type | Push Button |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Antimicrobial | Yes |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 5 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| Height | 25.9375 in. |
| Width | 6.25 in. |
| Length | 17.875 in. |
| Product Weight | 24 lbs. |
| Flow Rate (GPM) | 0.5 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
