Product Features:
Single basin design provides maximum workspace
Covered under Elkay’s limited lifetime warranty for residential sinks and 5 year limited warranty for commercial sinks
Constructed of 18-gauge stainless steel that provides a durable and easy to clean surface
Undermount installation creates a seamless transition between sink and countertop
Center drain location provides optimal drainage capability
All hardware needed for installation included
Product Technologies / Benefits:
Type 304 Stainless Steel: Elkay uses only the highest quality stainless steel that wont crack, chip, or peel. This stainless steel is non-porous, hygienic, durable and will resist rust and corrosion for a lifetime
Sound Guard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry

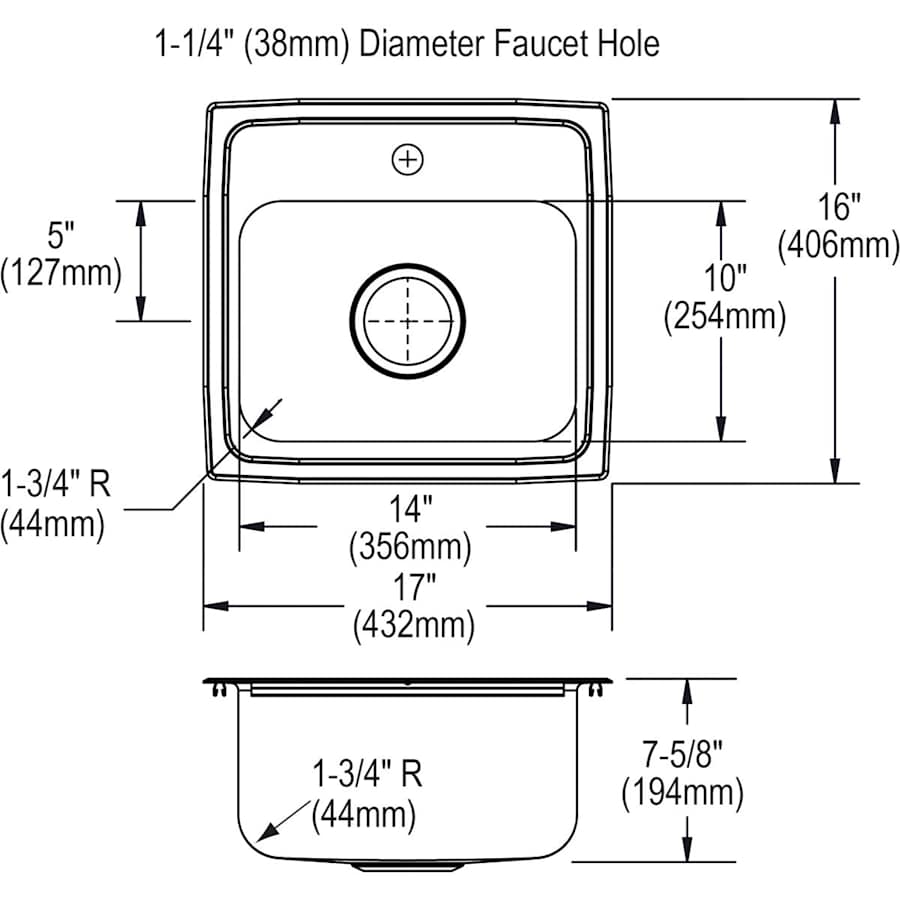

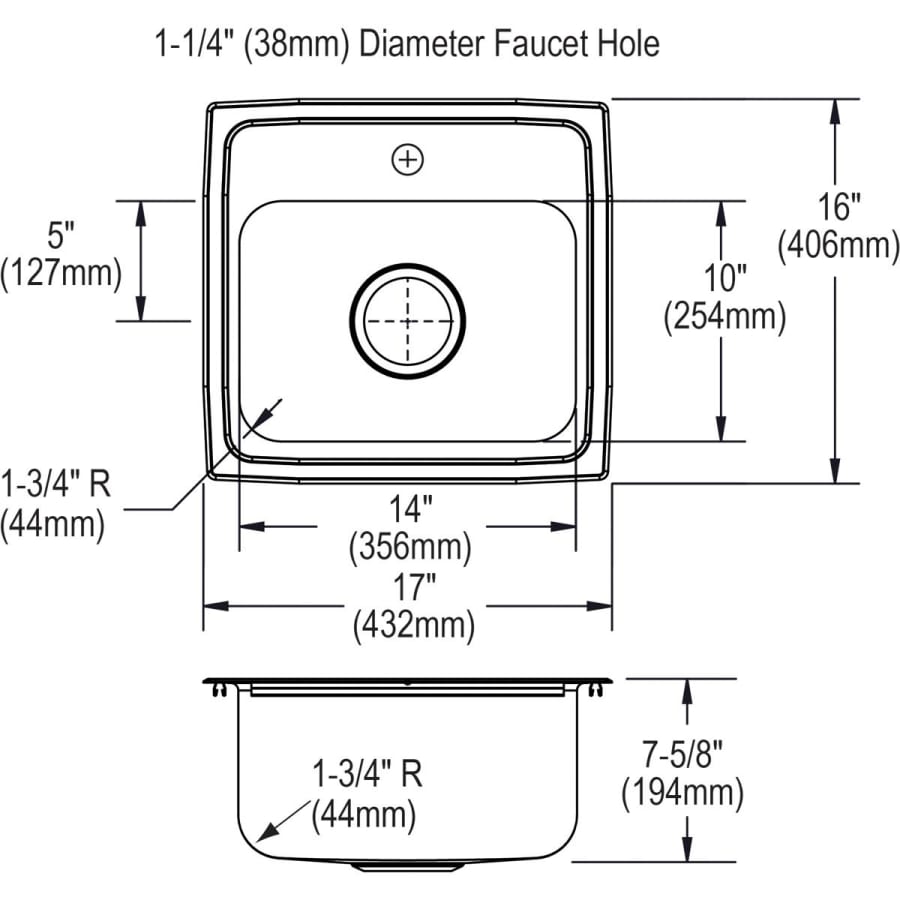

Specifications:
Height: 7-5/8″ (measured from the bottom of sink to the top of the rim)
Overall Width: 16″ (measured from the back outer rim to the front outer rim)
Overall Length: 17″ (measured from the left outer rim to the right outer rim)
Basin Width: 10″ (measured from the back inner rim to the front inner rim)
Basin Length: 14″ (measured from the left inner rim to the right inner rim)
Basin Depth: 7-5/8″ (measured from the center of basin to the rim)
Installation Type: Undermount
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 21″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 16 in. |
| Nominal Width | 16 in. |
| Length | 17 in. |
| Nominal Length | 17 in. |
| Backplate Depth | 7.625 in. |
| Bar Length | 14 in. |
| Base Width | 10 in. |
| Faucet Centers | 0, 4, 8 in. |
| Sink Length | 17 in. |
| Sink Width | 16 in. |
| Flow Rate (GPM) | 2.2 |
| Faucet Hole Size | 1.5 in. |
| Spout Height | 11.31 in. |
| Spout Reach | 3.63 in. |
| Gauge | 18 |
| Thermostat | Contemporary |
| Material | Stainless Steel |
| Insulation Type | Undermount |
| Faucet Holes | 0, 1, 2, 3 |
| Sink Shape | Square |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Handle Style | Wrist Blade |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Farmhouse | No |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Approved for Commercial Use | Yes |
| Collection | Gourmet, Gourmet Lustertone |
| ADA | No |
| CA Drought Compliant | No |
| Lead Leaching Certified NSF/ANSI 61 | No |
| Made in America | Yes |
| Low Lead Compliant | Yes |
| Faucet Manufacturer | Elkay |
| Sink Manufacturer | Elkay |
| Faucet Included | Yes |
| Handshower Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
