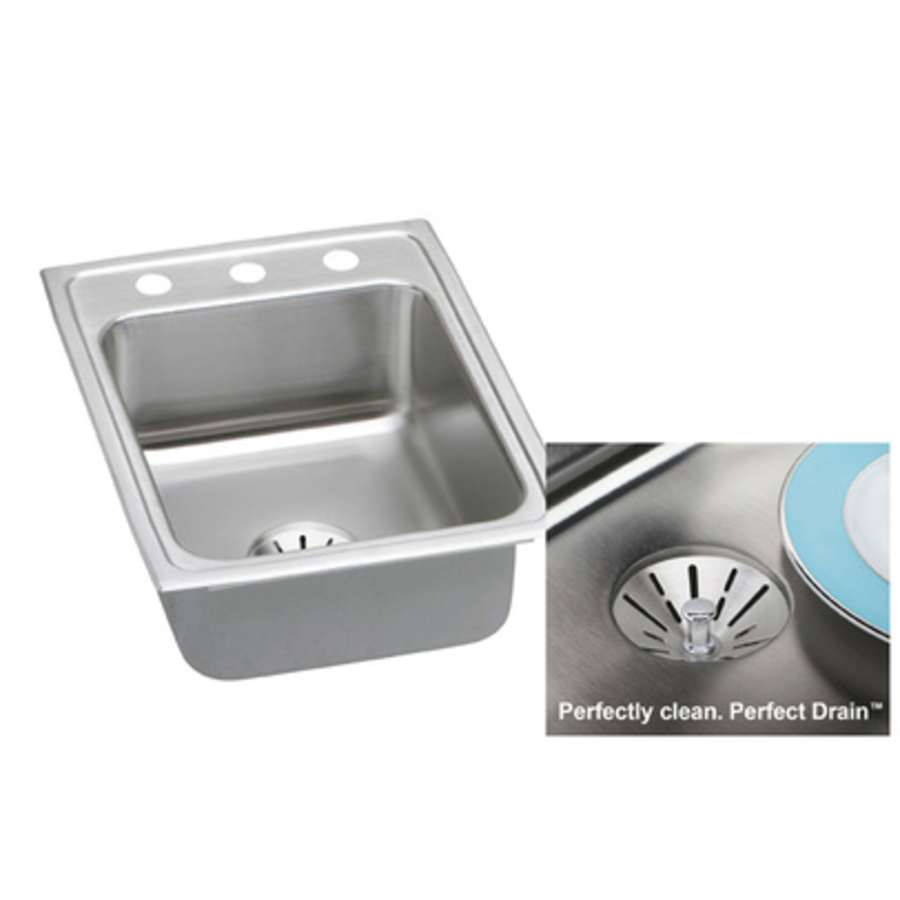

Elkay LR1722PD Features:

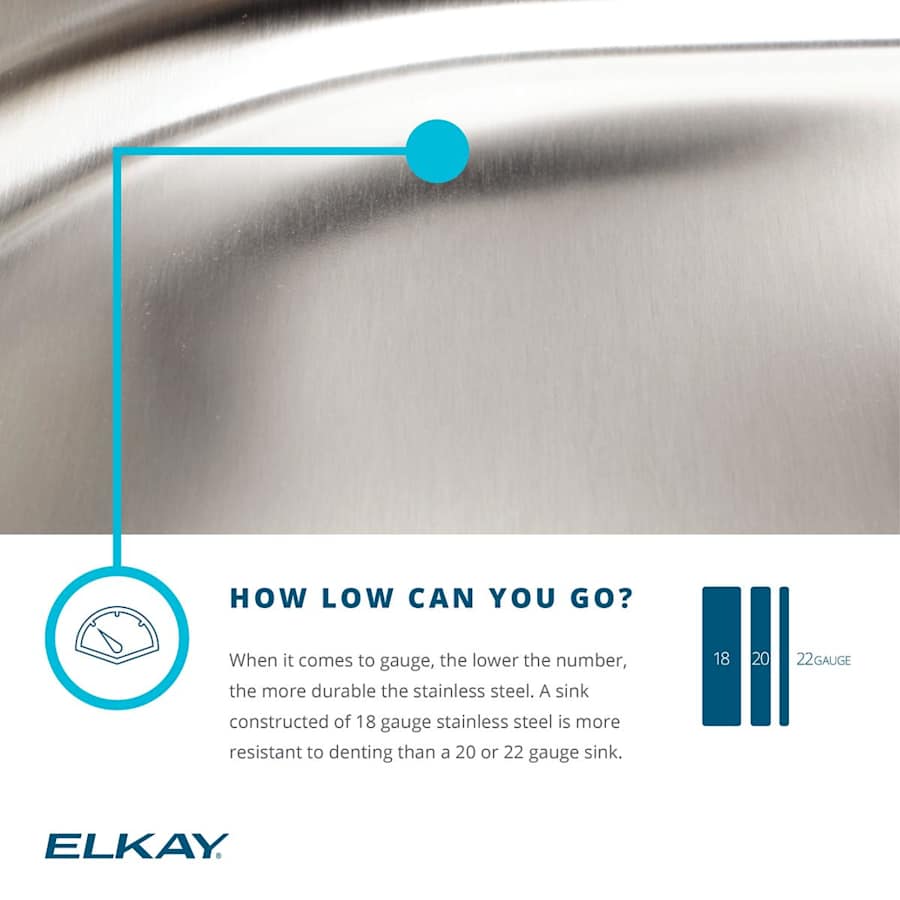

Constructed of 18-gauge T-304 grade stainless steel
Single basin design provides maximum workspace
Designed for drop in installations
Basin is undercoated and padded to prevent dish clatter and cabinet condensation
Center drain location provides optimal drainage capability
Stainless steel perfect drain assembly included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

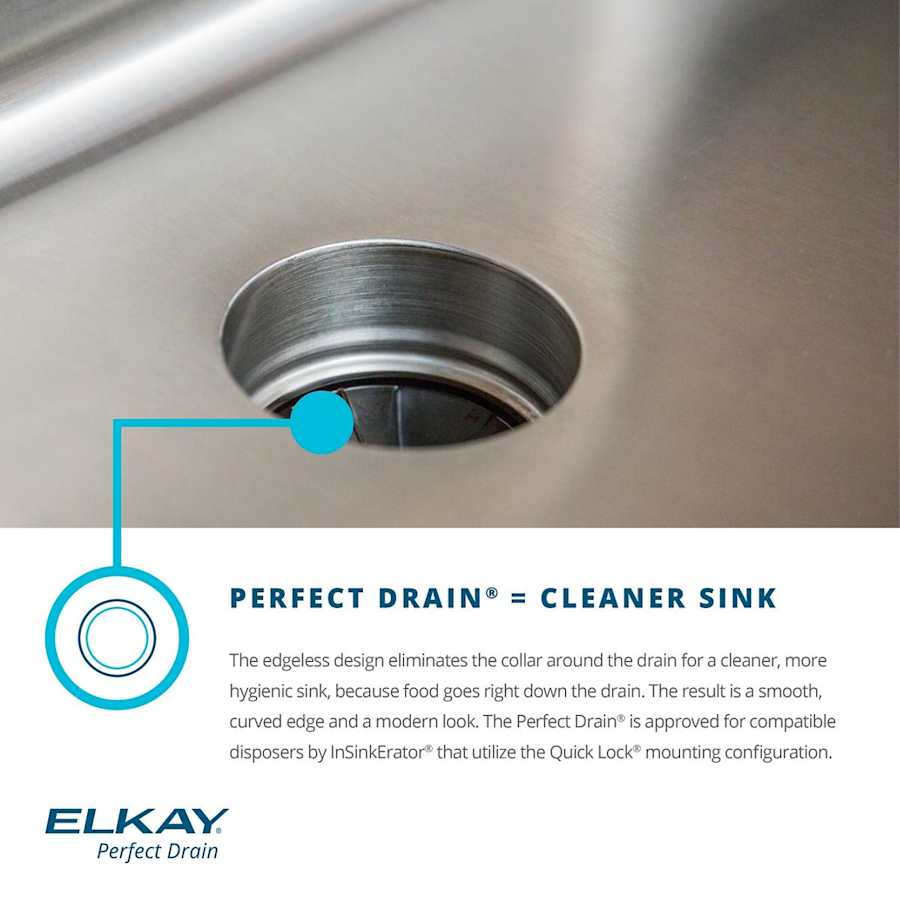

Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of this sink. It eliminates the gap around the drain by doing away with the sink collar. This makes for a cleaner sink and expands your usable work space on the sink floor. Crumbs and gunk have nowhere to go but down the drain!

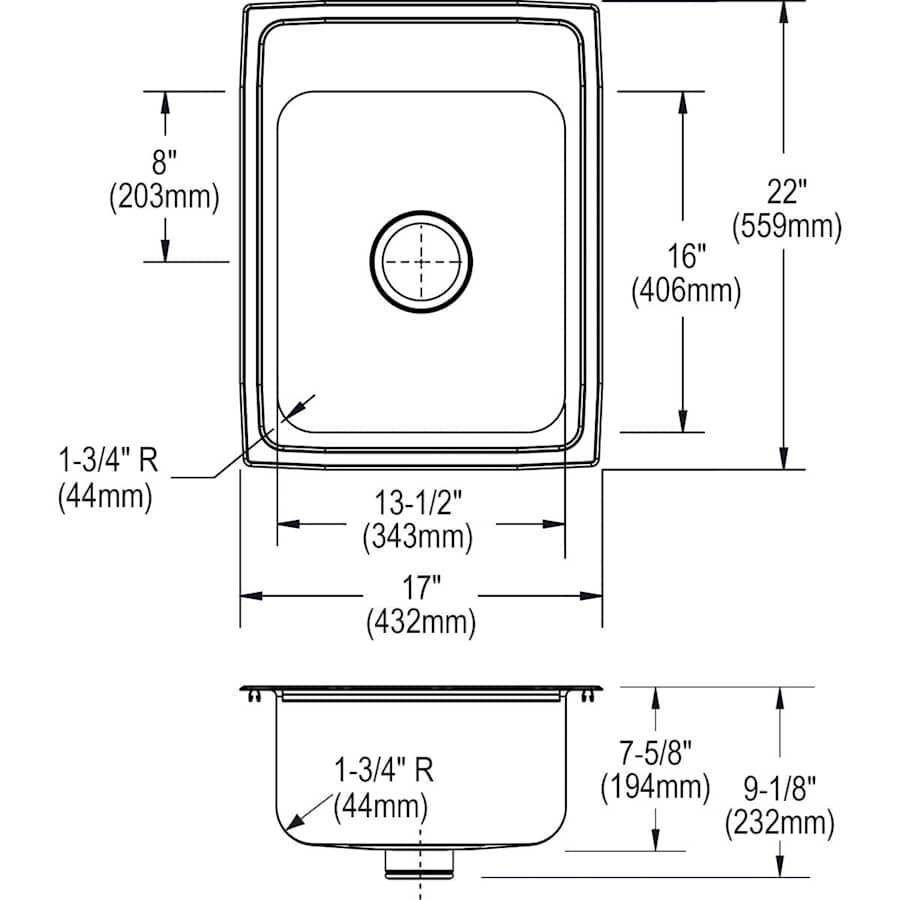

Elkay LR1722PD Specifications:
Height: 7-5/8″ (measured from bottom of sink to top of rim)
Length: 17″ (measured from left outer rim to right outer rim)
Width: 22″ (measured from back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 21″
Faucet Holes: 1 – 4 (holes required for faucet installation)
Drain Connection: 3-3/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 7.625 in. |
| Width | 22 in. |
| Length | 17 in. |
| Nominal Length | 17 in. |
| Product Weight | 18.26 lbs. |
| Backplate Depth | 7.5 in. |
| Bar Length | 13.5 in. |
| Base Width | 16 in. |
| Faucet Centers | 0, 4, 8 in. |
| Nominal Width | 22 in. |
| Sink Length | 17 in. |
| Drain Connection | 3.375 in. |
| Faucet Hole Size | 1.5 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 21 in. |
| Thermostat | Contemporary, Traditional |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Drain Placement | Center |
| Faucet Holes | 1, 2, 3, 4 |
| Number Of Bathers | 1 |
| Overflow | No |
| Sink Shape | Rectangular |
| Sound Dampening | Yes |
| Apron Front | No |
| Basin Split | Single Basin |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| Installation Hardware Included | Yes |
| Drain Assembly Included | Yes |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Approved for Commercial Use | No |
| Collection | Gourmet |
| Manufacturer Warranty | Limited Lifetime Residential |
| ADA | No |
| Certifications | UPC, ASME, CSA |
| Series | Perfect Drain, Sound Guard |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes Middle Right, 3 Faucet Holes, 4 Faucet Holes |
| Color Tone | Whites |
