Package Includes:
Faucet
Sink
Drain
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

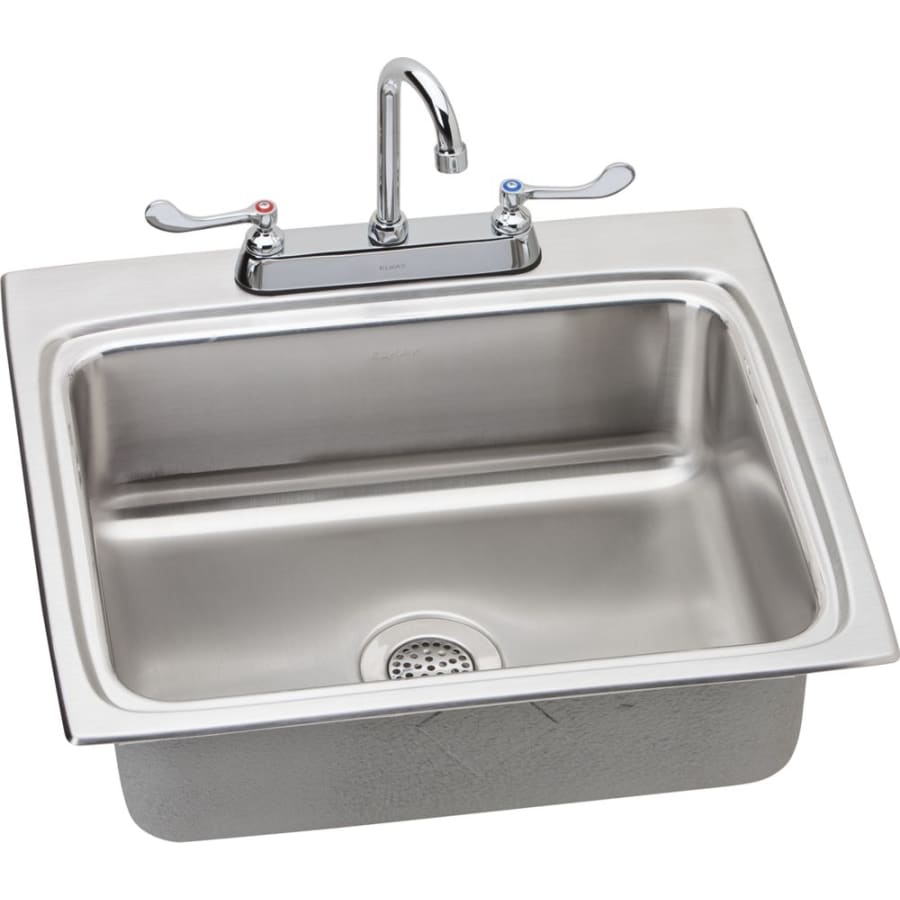

Sink Features:
Single basin design provides maximum workspace
Covered under Elkay’s limited lifetime residential warranty
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode

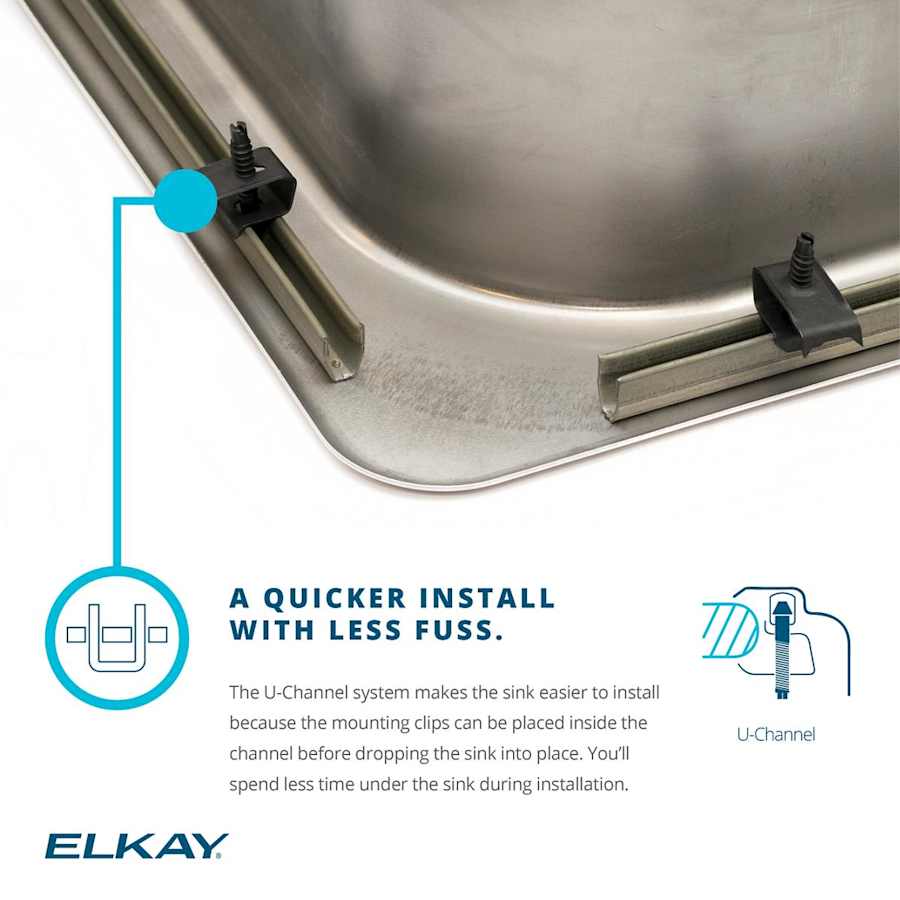

Drop in installation is a quick and simple process
Center drain location provides optimal drainage capability

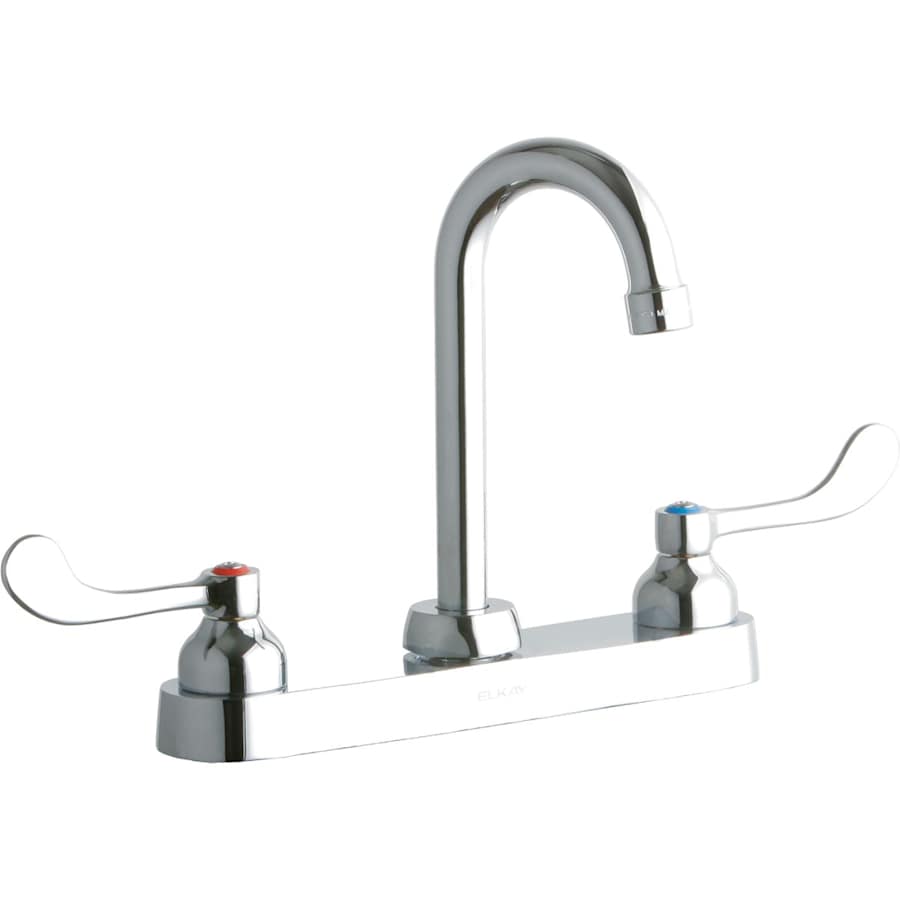

Faucet Features:
Covered under Elkay’s limited lifetime warranty
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Double handle operation – handles rest on 1/4 turn valves
Spout swivels, providing greater access to more areas of the sink
Includes optional escutcheon (cover plate) – for sinks with 3 faucet holes
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for kitchen faucets

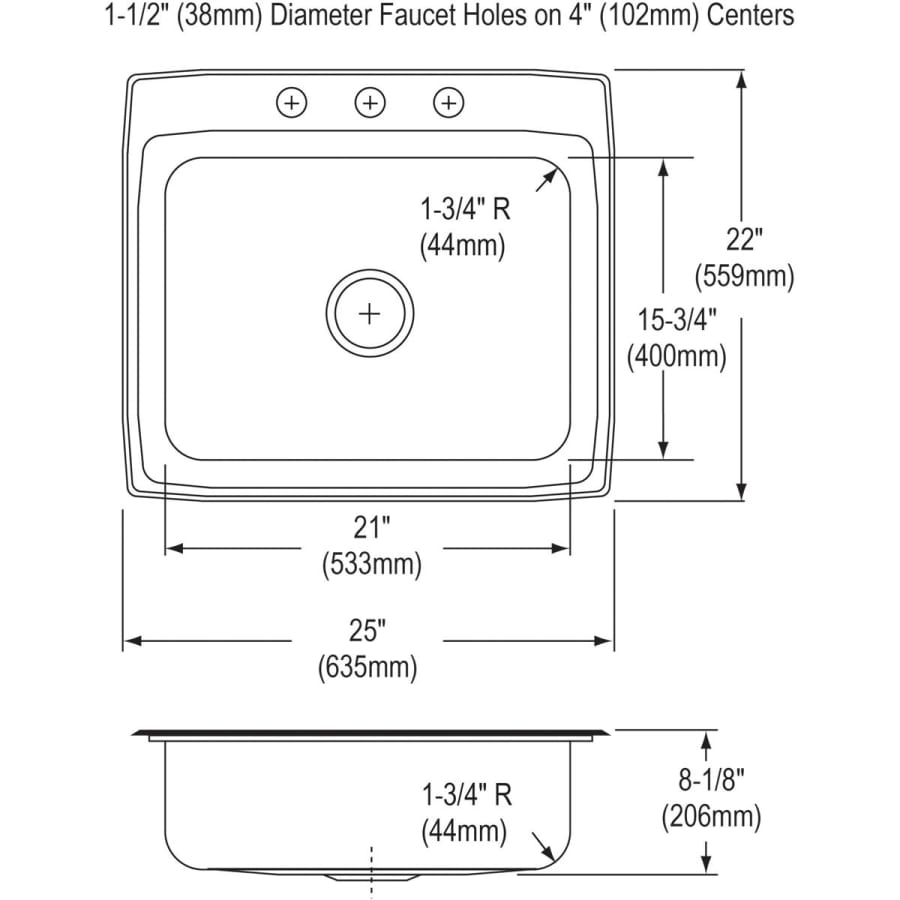

Sink Specifications:
Height: 8-1/8″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 25″ (measured from the left outer rim to the right outer rim)
Basin Width: 15-3/4″ (measured from the back inner rim to the front inner rim)
Basin Length: 21″ (measured from the left inner rim to the right inner rim)
Basin Depth: 7-3/4″ (measured from the center of basin to the rim)
Installation Type: Drop In
Number of Faucet Holes: 3
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 30″
Faucet Specifications:
Overall Height: 8-13/16″ (measured from counter top to highest part of faucet)
Spout Height: 6-3/16″ (measured from counter top to spout outlet)
Spout Reach: 3-5/8″ (measured from center of faucet base to center of spout outlet)
Flow Rate: 2.2 GPM (gallons per minute)
Maximum Deck Thickness: 2-1/16″ (cannot mount to thicker decks without use of extension kit)
2 handles included with faucet
Designed for use with standard U.S. plumbing connections
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Thermostat | Traditional |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Drain Placement | Center |
| Faucet Holes | 3 |
| Overflow | No |
| Sink Shape | Rectangular |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Handle Material | Metal |
| Handle Style | Wrist Blade |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Water Efficient | No |
| Electronic | No |
| Touchless Faucet | No |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Faucet Installation Type | Deck Mounted |
| Faucet Material | Brass |
| Approved for Commercial Use | Yes |
| ADA | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Lead Leaching Certified NSF/ANSI 61 | No |
| Low Lead Compliant | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| Height | 8.125 in. |
| Width | 22 in. |
| Backplate Depth | 7.75 in. |
| Bar Length | 21 in. |
| Base Width | 15.75 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 8 in. |
| Length | 25 in. |
| Nominal Length | 25 in. |
| Nominal Width | 22 in. |
| Max Deck Thickness | 2.0625 in. |
| Sink Length | 25 in. |
| Flow Rate (GPM) | 2.2 |
| Faucet Hole Size | 1.5 in. |
| Spout Height | 6.1875 in. |
| Spout Reach | 3.625 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 30 in. |
| Faucet Height | 8.8125 in. |
| Escutcheon Width | 10 in. |
| Drain Assembly Included | Yes |
| Faucet Included | Yes |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | Yes |
| Filtering | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
