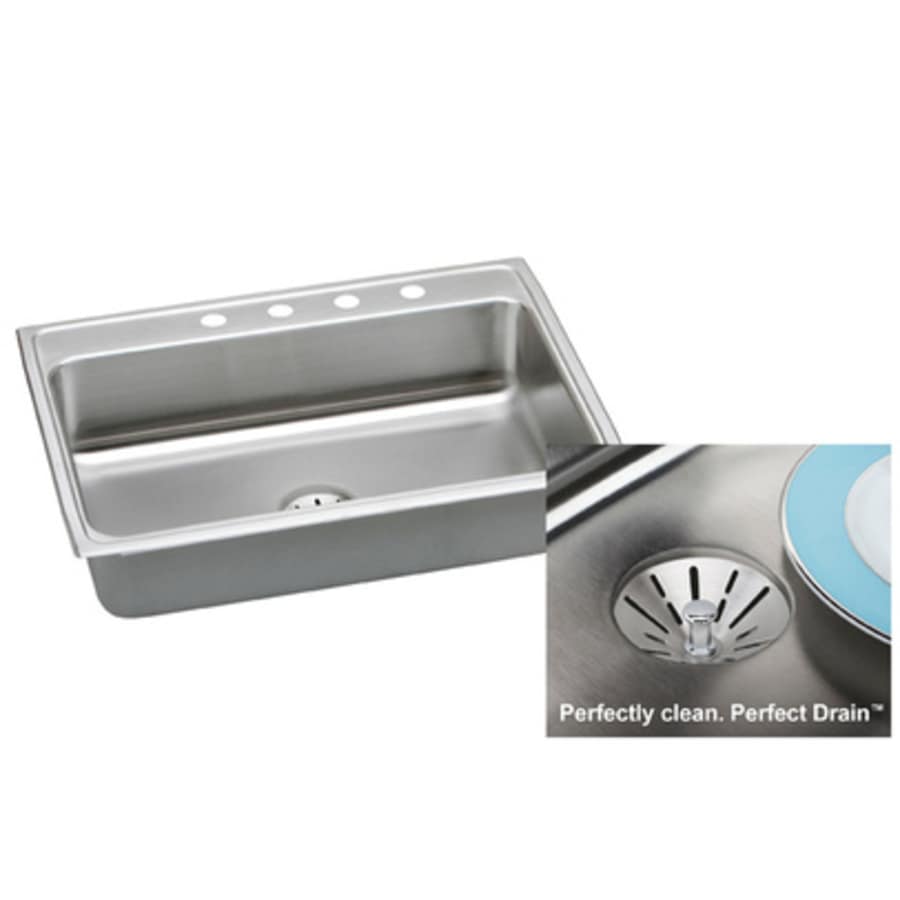

Elkay LR3122PD Features:
Constructed of 18-gauge T-304 grade stainless steel
Single basin design provides maximum workspace
Designed for drop in installations
Basin is undercoated and padded to prevent dish clatter and cabinet condensation
Center drain location provides optimal drainage capability
Stainless steel perfect drain assembly included
Covered under Elkay’s limited lifetime residential warranty
Product Technologies / Benefits:
SoundGuard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry.

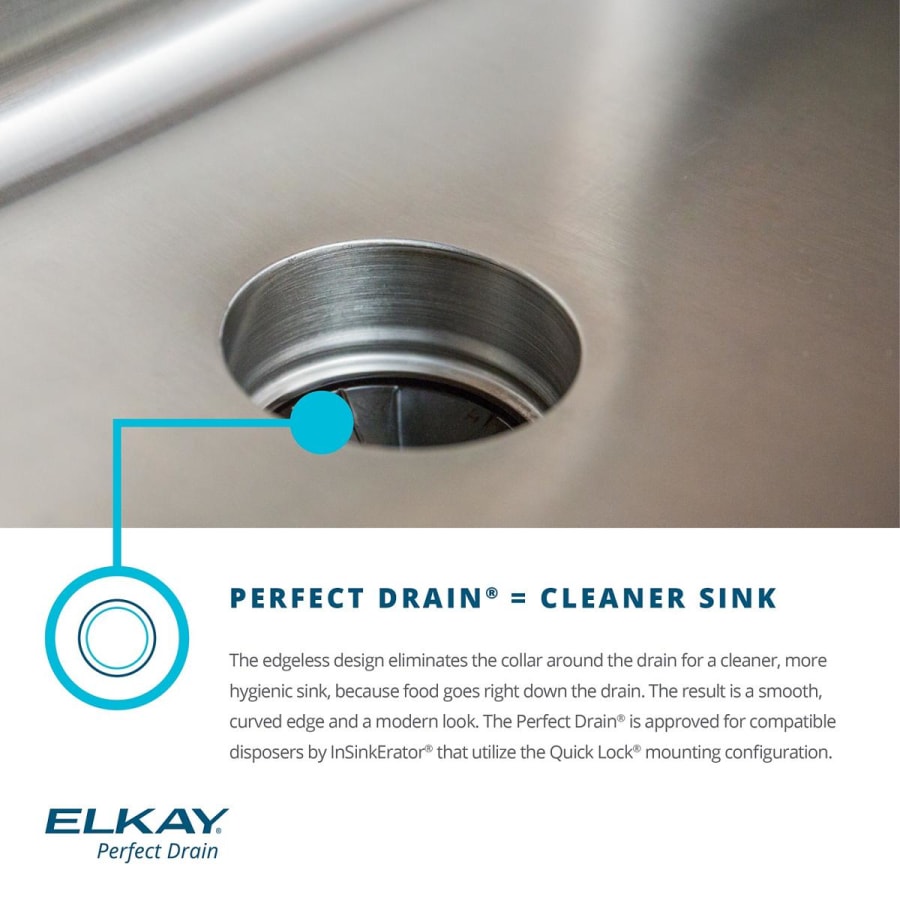

Perfect Drain: An edgeless drain that integrates seamlessly into the bottom of this sink. It eliminates the gap around the drain by doing away with the sink collar. This makes for a cleaner sink and expands your usable work space on the sink floor. Crumbs and gunk have nowhere to go but down the drain!

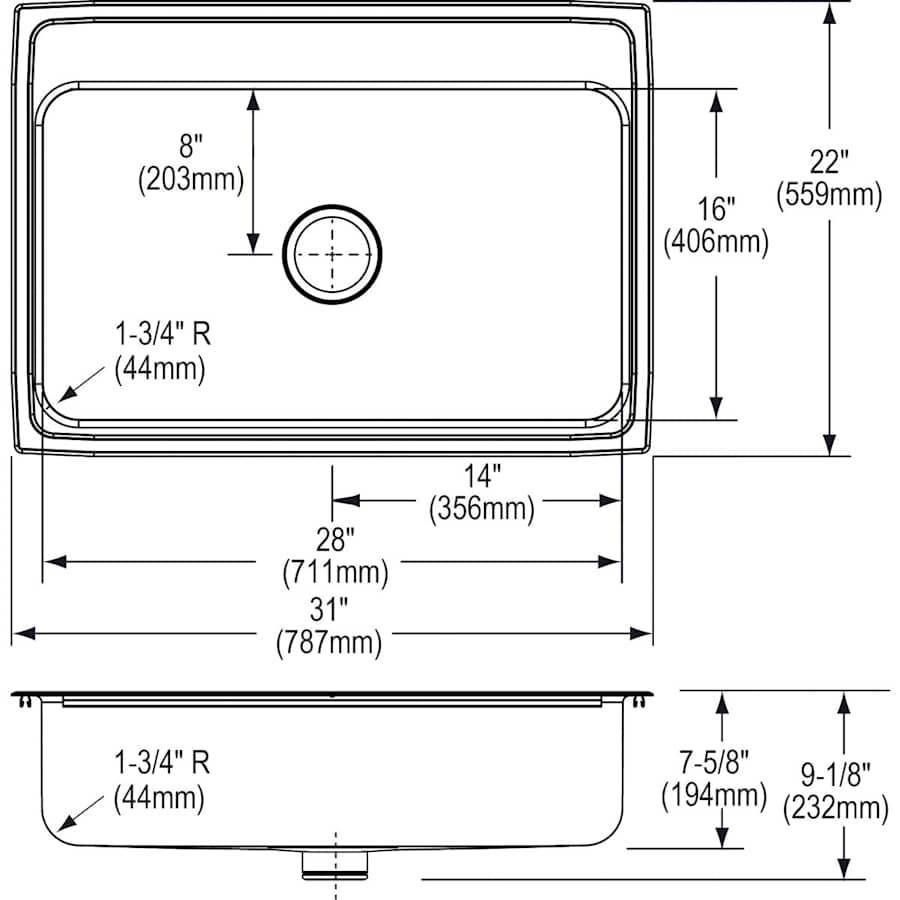

Elkay LR3122PD Specifications:
Height: 7-5/8″ (measured from bottom of sink to top of rim)
Length: 31″ (measured from left outer rim to right outer rim)
Width: 22″ (measured from back outer rim to front outer rim)
Installation Type: Drop In
Minimum Cabinet Size: 36″
Faucet Holes: 1 – 5 (holes required for faucet installation)
Drain Connection: 3-3/8″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Height | 7.625 in. |
| Width | 22 in. |
| Nominal Width | 22 in. |
| Product Weight | 24.01 lbs. |
| Length | 31 in. |
| Faucet Centers | 0, 4, 8 in. |
| Nominal Length | 31 in. |
| Backplate Depth | 7.5 in. |
| Bar Length | 28 in. |
| Base Width | 16 in. |
| Drain Connection | 3.375 in. |
| Faucet Hole Size | 1.5 in. |
| Sink Length | 31 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 36 in. |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Contemporary, Traditional |
| Faucet Holes | 1, 2, 3, 4, 5 |
| Overflow | No |
| Sink Shape | Rectangular |
| Drain Placement | Center |
| Number Of Bathers | 1 |
| Sound Dampening | Yes |
| Apron Front | No |
| Basin Split | Single Basin |
| Stainless Steel Grade | 304 |
| Undercoating | Yes |
| ADA | No |
| Collection | Gourmet |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Series | Perfect Drain, Sound Guard |
| Certifications | CSA, UPC, ASME |
| Installation Hardware Included | Yes |
| Faucet Included | No |
| Drain Assembly Included | Yes |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | Yes |
| Colander Included | No |
| Cutting Board Included | No |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes Middle Right, 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes |
| Color Tone | Whites |
