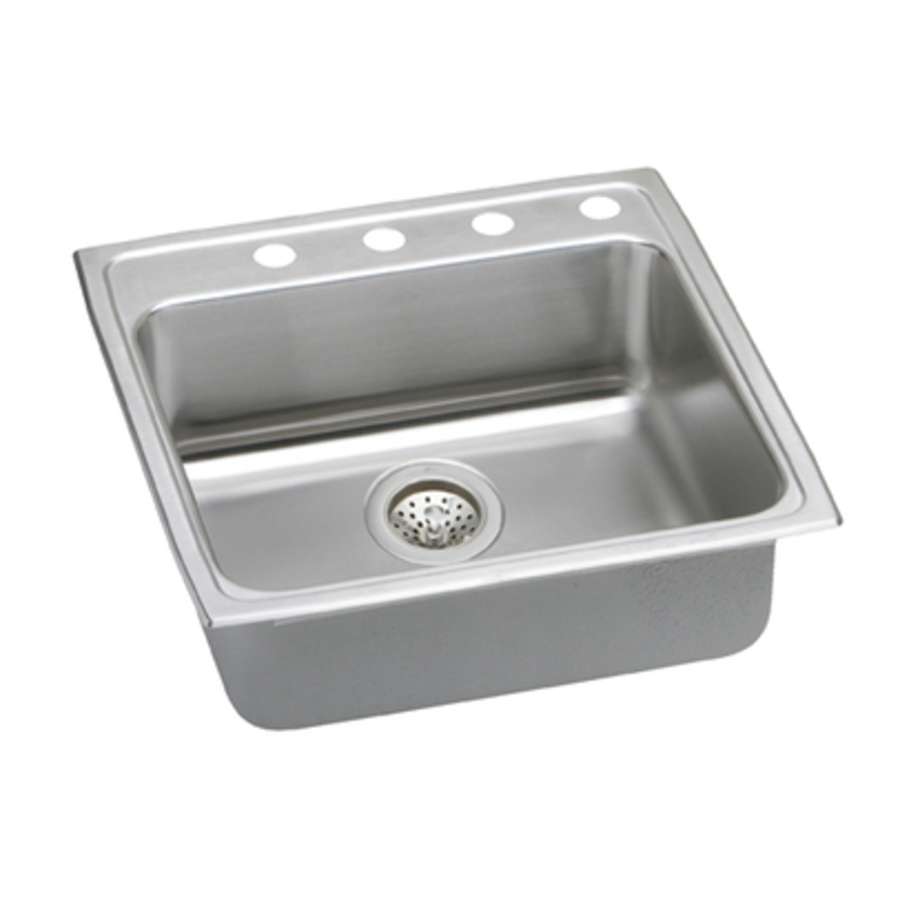

Product Features:
Single basin design provides maximum workspace
Covered under Elkay’s limited lifetime warranty for residential sinks and 5 year limited warranty for commercial sinks
Constructed of 18-gauge stainless steel that provides a durable and easy to clean surface
Drop In installation is a simple process to make your renovating needs as efficient as possible
Rear drain location increases workspace area in the sink as well as storage space underneath
All hardware needed for installation included
Product Technologies / Benefits:
Type 304 Stainless Steel: Elkay uses only the highest quality stainless steel that wont crack, chip, or peel. This stainless steel is non-porous, hygienic, durable and will resist rust and corrosion for a lifetime
Sound Guard®: Elkay uses a non-toxic latex based material to undercoat sink bottoms and sides over sound pads which help absorb sound, maintain water temperature, reduce vibration and prevent condensation. The quietest stainless steel sink in the industry

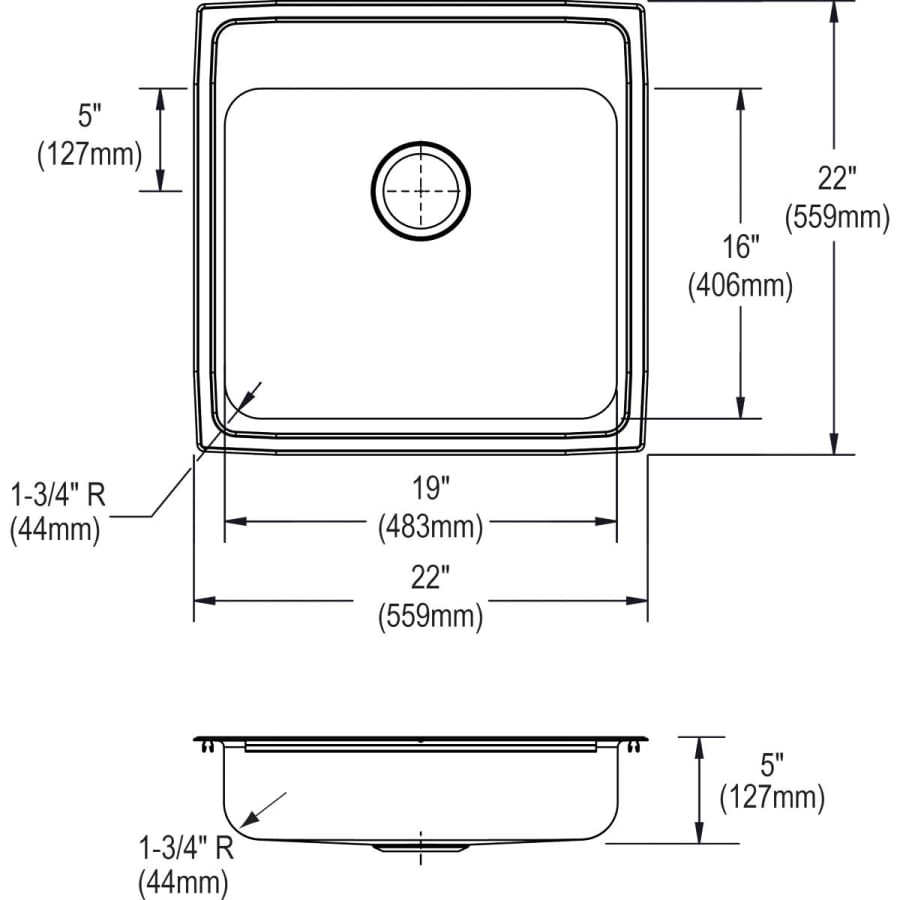

Specifications:
Height: 5″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 22″ (measured from the left outer rim to the right outer rim)
Basin Width: 16″ (measured from the back inner rim to the front inner rim)
Basin Length: 19″ (measured from the left inner rim to the right inner rim)
Basin Depth: 4-7/8″ (measured from the center of basin to the rim)
Installation Type: Drop In
Number of Faucet Holes: 1-5
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 27″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Gourmet, Gourmet Lustertone |
| ADA | Yes |
| Country Of Origin | USA |
| Made in America | Yes |
| Height | 5 in. |
| Width | 22 in. |
| Product Weight | 14 lbs. |
| Length | 22 in. |
| Faucet Centers | 0, 4, 8 in. |
| Nominal Length | 22 in. |
| Nominal Width | 22 in. |
| Backplate Depth | 5 in. |
| Bar Length | 19 in. |
| Base Width | 16 in. |
| Drain Connection | 3.5 in. |
| Faucet Hole Size | 1.5 in. |
| Sink Length | 22 in. |
| Gauge | 18 |
| Material | Stainless Steel |
| Thermostat | Contemporary |
| Insulation Type | Drop In |
| Faucet Holes | 1, 2, 3, 4, 5 |
| Sink Shape | Square |
| Drain Placement | Rear |
| Number Of Bathers | 1 |
| Basin Split | Single Basin |
| Farmhouse | No |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Faucet Included | No |
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Cutting Board Included | No |
| Color | Stainless Steel - 1 Faucet Hole, Stainless Steel - 2 Faucet Holes, Stainless Steel - 3 Faucet Holes, Stainless Steel - 4 Faucet Holes, Stainless Steel - 5 Faucet Holes |
| Color Tone | Stainless Steel |
