Product Features:
Double basin sink with a 50/50 split provides increased versatility for any task
Covered under limited lifetime residential
Constructed of 18 gauge premium grade stainless steel – guaranteed to never rust or corrode
Drop in installation is a quick and simple process
Offset drain locations increases workspace area in the sink as well as storage space underneath
Product Technologies / Benefits:
Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.

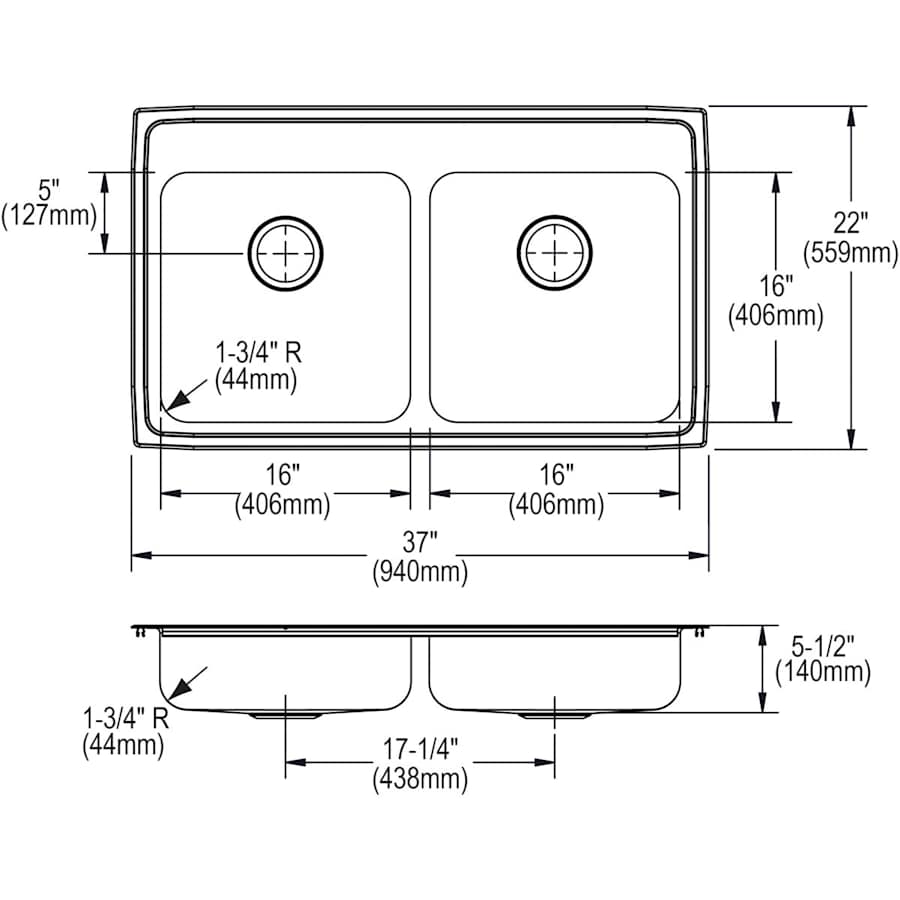

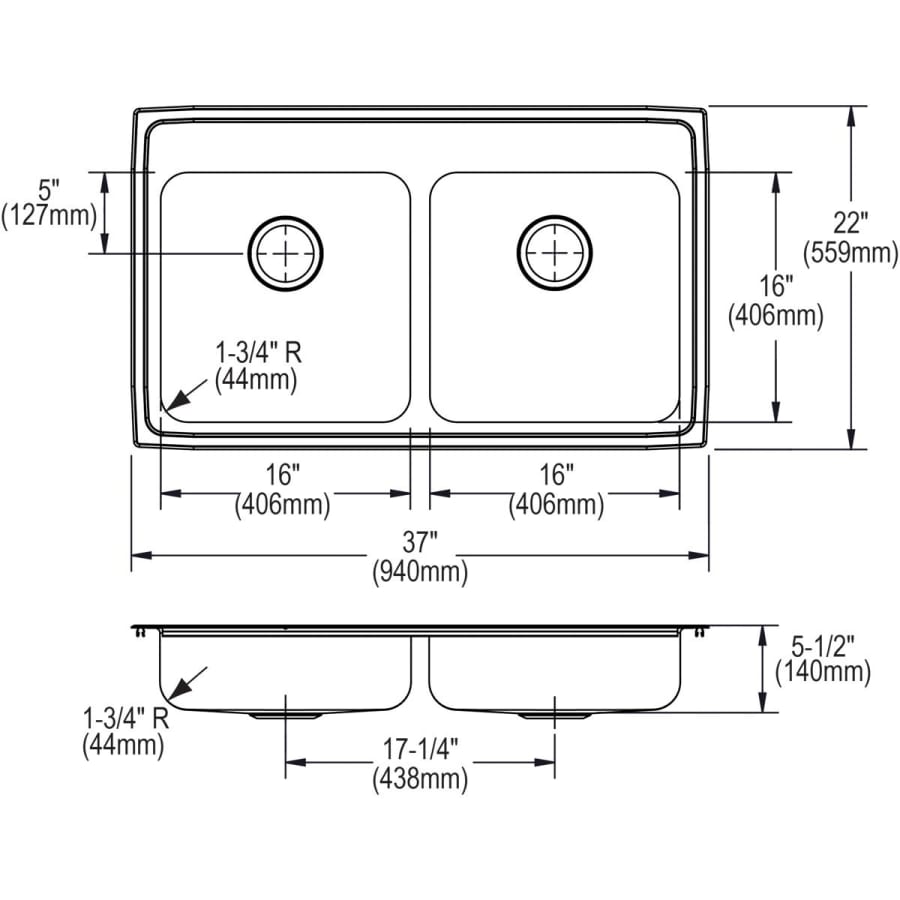

Specifications:
Height: 5-1/2″ (measured from the bottom of sink to the top of the rim)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 37″ (measured from the left outer rim to the right outer rim)
Basin Width: (measured from the back inner rim to the front inner rim)
Left: 16″
Right: 16″
Basin Length: (measured from the left inner rim to the right inner rim)
Left: 16″
Right: 16″
Basin Depth: (measured from the center of basin to the rim)
Left: 5-3/8″
Right: 4-3/8″
Installation Type: Drop In
Number of Faucet Holes: 1-5
Drain Outlet Connection: 3-1/2″
Minimum Base Cabinet Width: 42″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay Gourmet Collection
Specifications
| Width | 22 in. |
| Height | 5.5 in. |
| Length | 37 in. |
| Nominal Length | 37 in. |
| Backplate Depth | 5.375, 4.375 in. |
| Drain Connection | 3.5 in. |
| Faucet Centers | 0, 12, 16, 4, 8 in. |
| Nominal Width | 22 in. |
| Faucet Hole Size | 1.5 in. |
| Gauge | 18 |
| Sink Length | 37 in. |
| Minimum Cabinet Size | 42 in. |
| Basin Depth (Left) | 5.375 in. |
| Basin Depth (Right) | 4.375 in. |
| Basin Length (Left) | 16 in. |
| Basin Length (Right) | 16 in. |
| Basin Width (Left) | 16 in. |
| Basin Width (Right) | 16 in. |
| Thermostat | Traditional |
| Material | Stainless Steel |
| Insulation Type | Drop In |
| Drain Placement | Center, Rear |
| Faucet Holes | 1, 2, 3, 4, 5 |
| Overflow | No |
| Sink Shape | Rectangular |
| Number Of Bathers | 2 |
| Corner Sink | No |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | 50/50 |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Residential |
| Country Of Origin | USA |
| ADA | Yes |
| Made in America | Yes |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Color | 1 Faucet Hole, 2 Faucet Holes, 2 Faucet Holes (Middle Right), 3 Faucet Holes, 4 Faucet Holes, 5 Faucet Holes, No Faucet Holes |
| Color Tone | Whites |
