Product Features:
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components

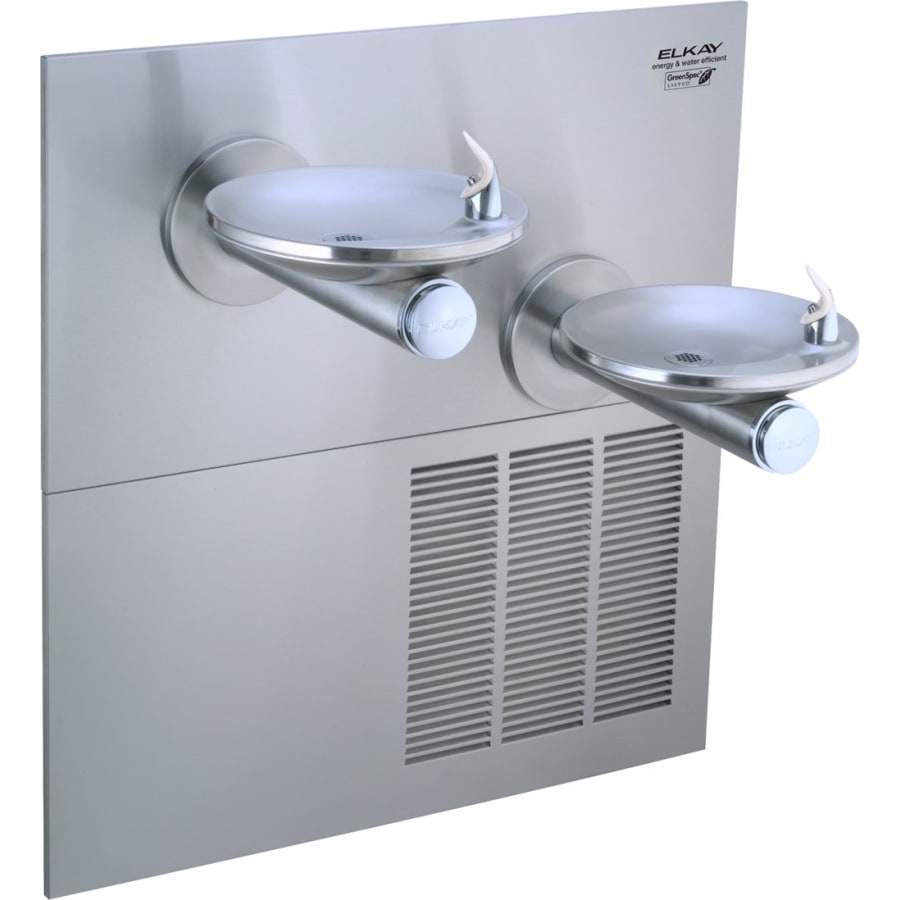

Bi-Level drinking fountain with self contained ADA cooler
Electric refrigeration is a combination tube-tank running single phase
Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient
Integrated Silver Ion Anti-microbial Protection in key areas
Vandal-resistant, easy to operate front push-button control
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Construction:
#18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Vandal-Resistant bubbler is a heavy-duty chrome plated construction
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Removable louvered ventilating encloses refrigeration unit and plumbinggrill encloses refrigeration unit and plumbing
Frame furnished to allow flush mounting to finished wall
Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
Base Cooling Capacity (GPH): 7.5
Rated Watts: 260
Full Load Amps: 2.8
Fountain Type: Refrigerated
Shipping Weight: 140
Voltage: 115
Height: 40-13/16″ (measured from lowest rim to top rim of fixture)
Length: 38-1/2″ (measured from most left to most right rim of fixture)
Depth: 19″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay SwirlFlo Collection
Specifications
| Height | 40.8125 in. |
| Product Weight | 140 lbs. |
| Width | 19 in. |
| Length | 38.5 in. |
| Flow Rate (GPM) | 0.13 |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 7.5 GPH |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Thermostat | Modern |
| Control Type | Push Button |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Bubbler Type | Vandal Resistant StreamSaver |
| Collection | SwirlFlo |
| Certifications | NSF, ANSI, ASME, UL |
| Location Rating | Dry Location |
| Manufacturer Warranty | 5 Year Limited |
| Outdoor Approved | No |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.19.3 |
| Wattage | 260 |
| Voltage | 115 |
| Amperage | 2.8 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Stainless Steel |
