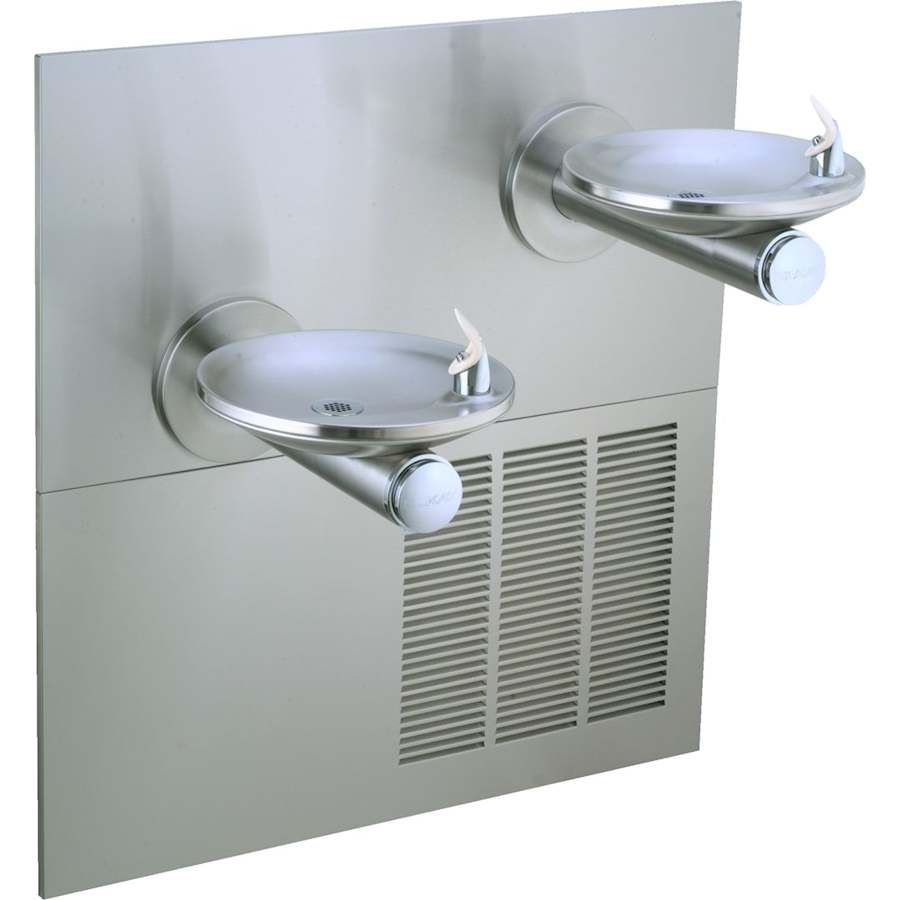

Elkay SwirlFlo 38-1/2″ Wall Mounted Bi-Level Drinking Station with Cooler

Product Features:

Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Bi-Level drinking fountain with self contained ADA cooler
Electric refrigeration is a combination tube-tank running single phase
Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient
A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler
Vandal-resistant, easy to operate front push-button control
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure

Construction:

#18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Frame furnished to allow flush mounting to finished wall
Removable louvered ventilating encloses refrigeration unit and plumbinggrill encloses refrigeration unit and plumbing

Cooling System:

Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements

Product Specifications:

Base Cooling Capacity (GPH): 7.5
Rated Watts: 370
Full Load Amps: 4
Fountain Type: Refrigerated
Shipping Weight: 141
Voltage: 115
Height: 40-13/16″ (measured from lowest rim to top rim of fixture)
Length: 38-1/2″ (measured from most left to most right rim of fixture)
Depth: 19″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: No
