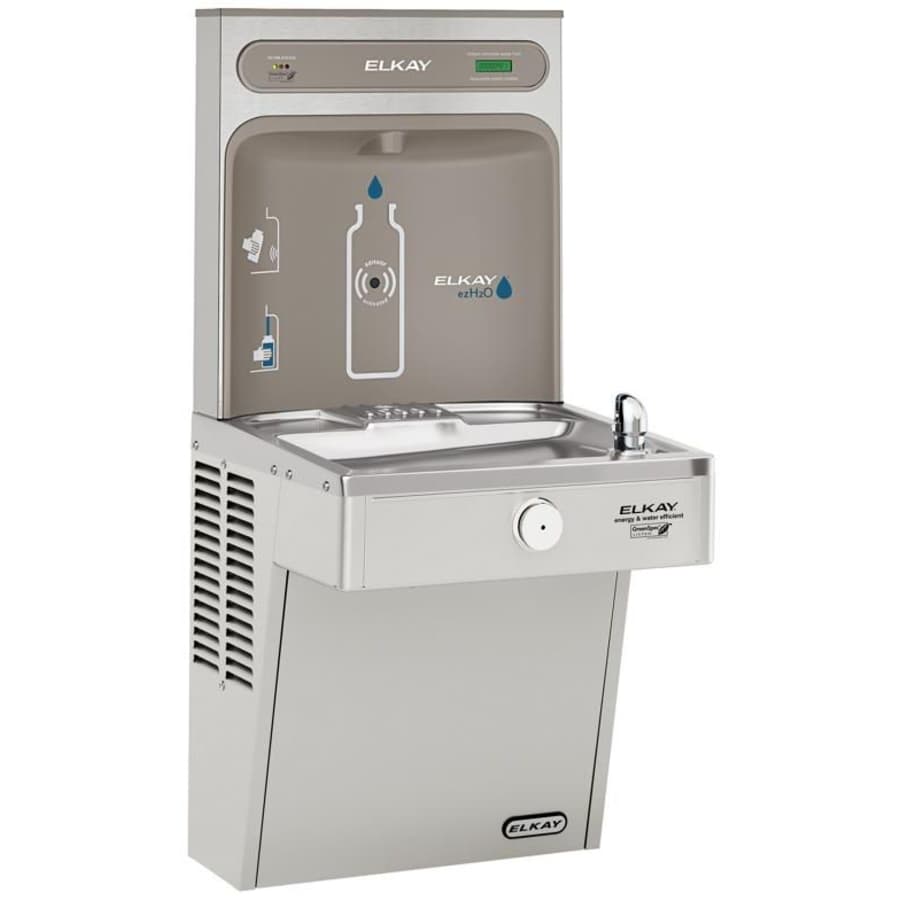

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Elkay LVRCGRN8WSK Features:
Touchless sensor activation (bottle filler) and vandal-resistant push-button activation for the water cooler designed for easy use
High-performance compressor and insulation greatly reduce energy consumption
Fill rate is 1.1 GPM
Visual filter monitor with LED filter status indicator for when filter change is necessary

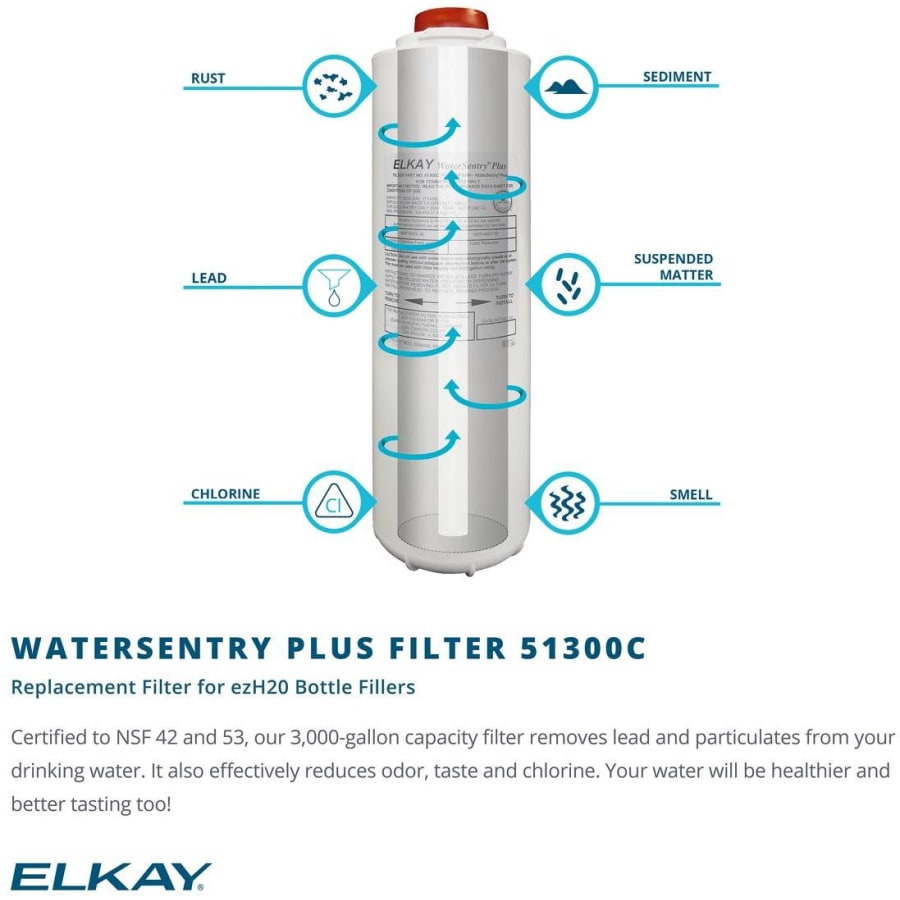

The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
Green Ticker informs user of number of 20 oz plastic water bottles saved from waste
Laminar flow provides clean fill with minimal splash
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Vandal-resistant, StreamSaver bubblers feature chrome-plated integral hood guard to prevent contamination, tampering and reduce water usage
Rated for indoor use
Elkay LVRCGRN8WSK Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Filters: With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Elkay LVRCGRN8WSK Specifications:
Height: 39-3/4″ (measured from lowest rim to top rim of fixture)
Length: 18-1/16″ (measured from most left to most right rim of fixture)
Width: 18-5/8″ (measured from back to front of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): 0.13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 1
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | CSA, NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| Height | 39.75 in. |
| Width | 18.625 in. |
| Length | 18.0625 in. |
| Product Weight | 89 lbs. |
| Flow Rate (GPM) | 0.13 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Insulation Type | Wall Mounted |
| Material | ABS, Stainless Steel |
| Energy Efficient | Yes |
| Vandal Resistant | Yes |
| Control Type | Push Button |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Voltage | 115 |
| Wattage | 260 |
| Amperage | 3.8 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
