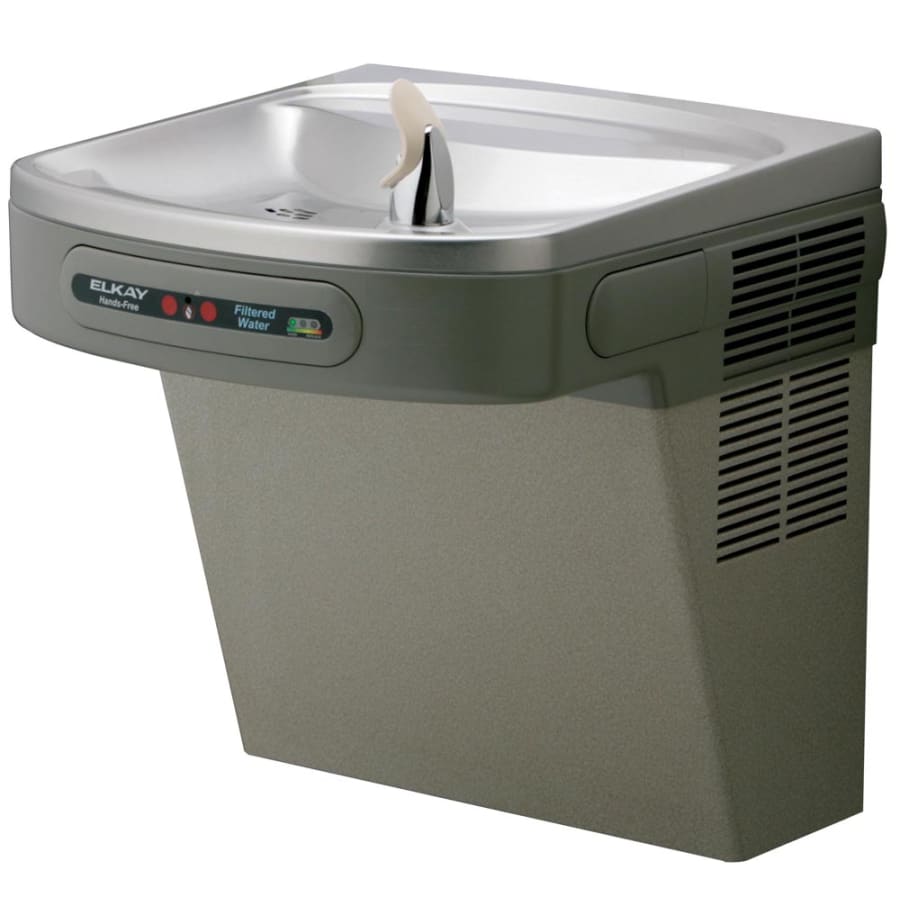

Elkay 8 GPH ADA Wall Mount Single Level Hands Free Filtered Water Cooler with Front Controls
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Self-contained wall hung water cooler
Electric refrigerated
Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Non-pressurized tank system is standard
Non-pressurized water tank is located after solenoid valve (so that tank is subject to line pressure only when sensor is activated)
No lead design
Watersentry filter system provides taste and odor improvement
Sensor-operated cooler has unique Hands-Free operation
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
ADA compliant
Construction
Electronic Sensor Hands-Free Operation – On-off solenoid valve is actuated by an infrared light beam sensor. No physical contact required. Built in time delay
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall. Provides increased structural integrity and rigidity to cooler
Stainless Steel Basin – One piece. No exposed fasteners
Exclusive Flexi-Guard Safety Bubbler – Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position
Upper Shroud – Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
Lower Shroud – One piece easy to remove and replace. Allows access to internal components from three sides
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space required
Cooling System
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free operation
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible
Product Specifications:
Base Flow Rated: 8.0
Rated Watts: 370
Full Load Amps: 5.0
Fountain Type: Cooler
Shipping Weight: 56 lbs
Installation Type: Wall
Hands Free Operation: Yes
Voltage: 115V/60Hz
Height: 18-13/16″
Width: 18-3/8″
Depth: 19″
Glass Filler: No
Vandal Resistant Bubbler: No
Filter: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 19.8125 in. |
| Width | 19 in. |
| Product Weight | 54 lbs. |
| Flow Rate (GPM) | .13 |
| Length | 18.375 in. |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 9.7 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Bubbler Type | FlexiGuard Safety |
| Control Type | Bar |
| Filtered | Yes |
| Number of Stations | 1 |
| Pet Friendly | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Vandal Resistant | No |
| Bi-Level | No |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | NSF, ANSI, ASME, UL |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 370 |
| Frequency | 60 Hertz |
| Amperage | 4 |
| Electrical Phases | 1 |
| Bottle Filler Included | No |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
