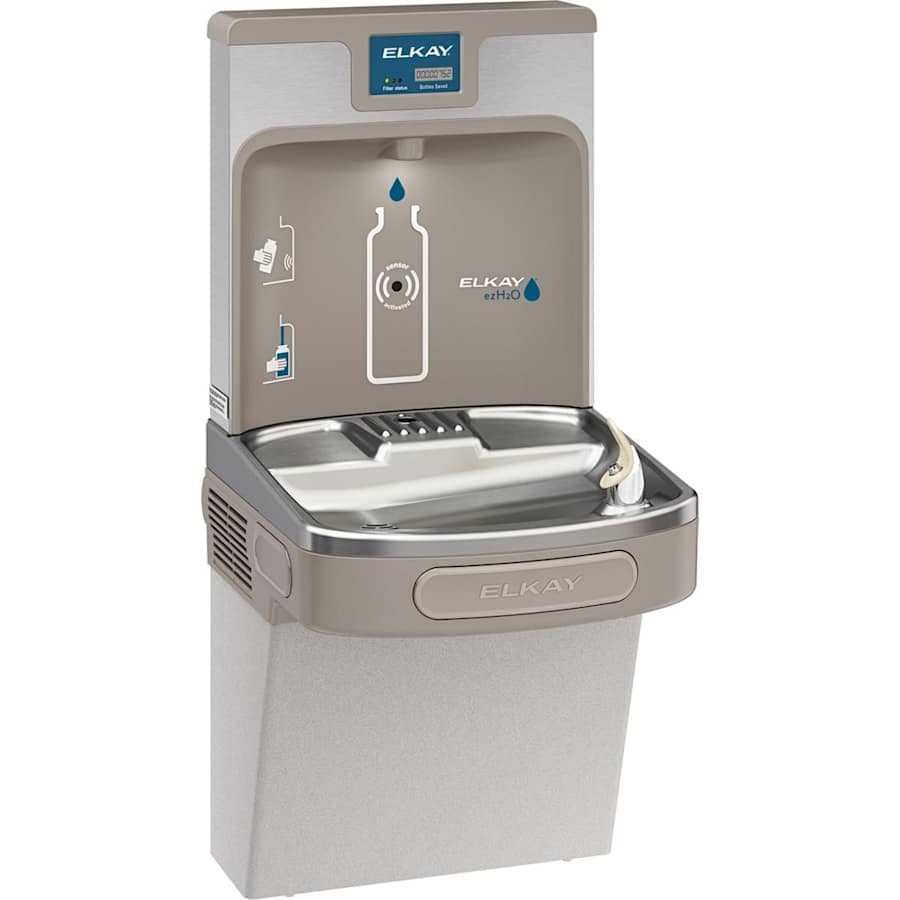

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Integrated look combines the Green Ticker™ and filter status lights.
Elkay LZS8WSP Features:
Touchless, sensor activation (bottle filler) and push-bar activation (bubbler) designed for easy use
Fill rate is 1.1 GPM
Visual filter monitor with LED filter status indicator Fill safe recognition automatically recognizes new filter and updates LED light back to green

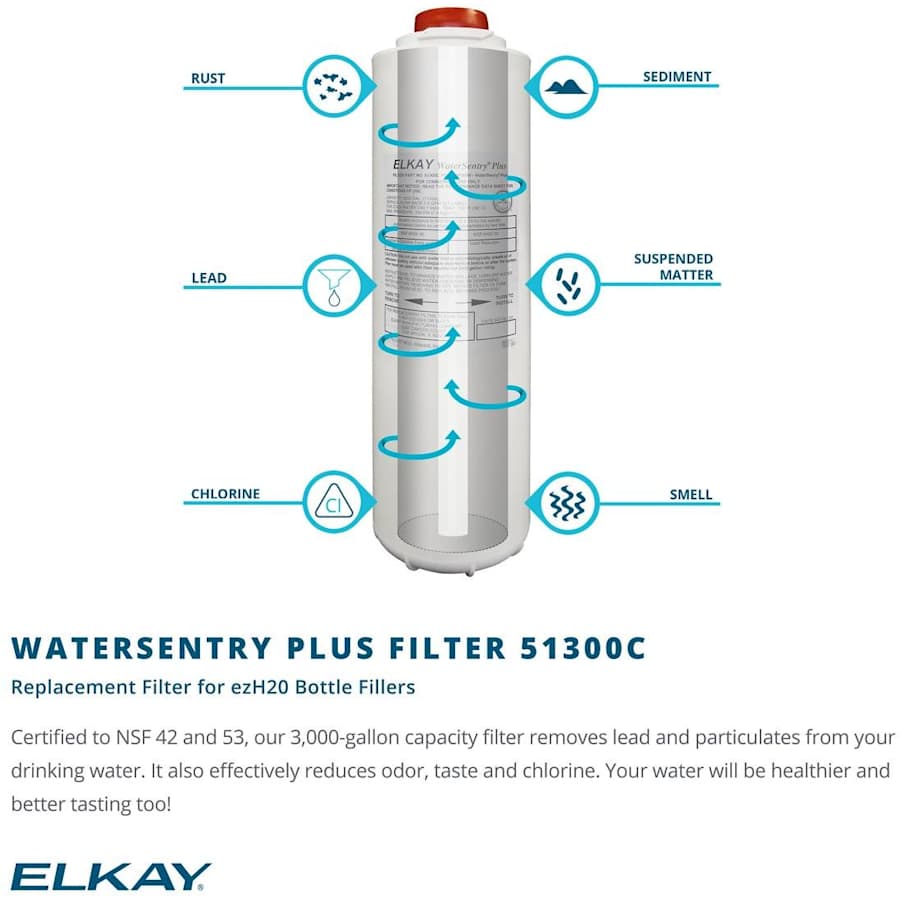

The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
Green Ticker informs user of number of 20 oz plastic water bottles saved from waste
Energy-saving feature, allowing for the refrigeration to be powered off when not in use
Laminar flow provides clean fill with minimal splash Real drain system eliminates standing water
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways
One-box packaging so the cooler and bottle filler ship together
Elkay LZS8WSP Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Filters: With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Elkay LZS8WSP Specifications:
Height: 39-7/16″ (measured from lowest rim to top rim of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Fountain Type: Cooler
Control Type: Push Bar
Bottle Filler: Yes
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.1
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ASSE Code | A112.19.3 |
| Certifications | CSA, NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Made in America | Yes |
| Height | 39.875 in. |
| Width | 19 in. |
| Length | 18 in. |
| Product Weight | 59 lbs. |
| Flow Rate (GPM) | 0.13 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 9.6 GPH |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Energy Efficient | Yes |
| Vandal Resistant | No |
| Control Type | Bar |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Voltage | 115 |
| Wattage | 325 |
| Amperage | 3.7 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Light Gray |
| Color Tone | Greys |
