About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

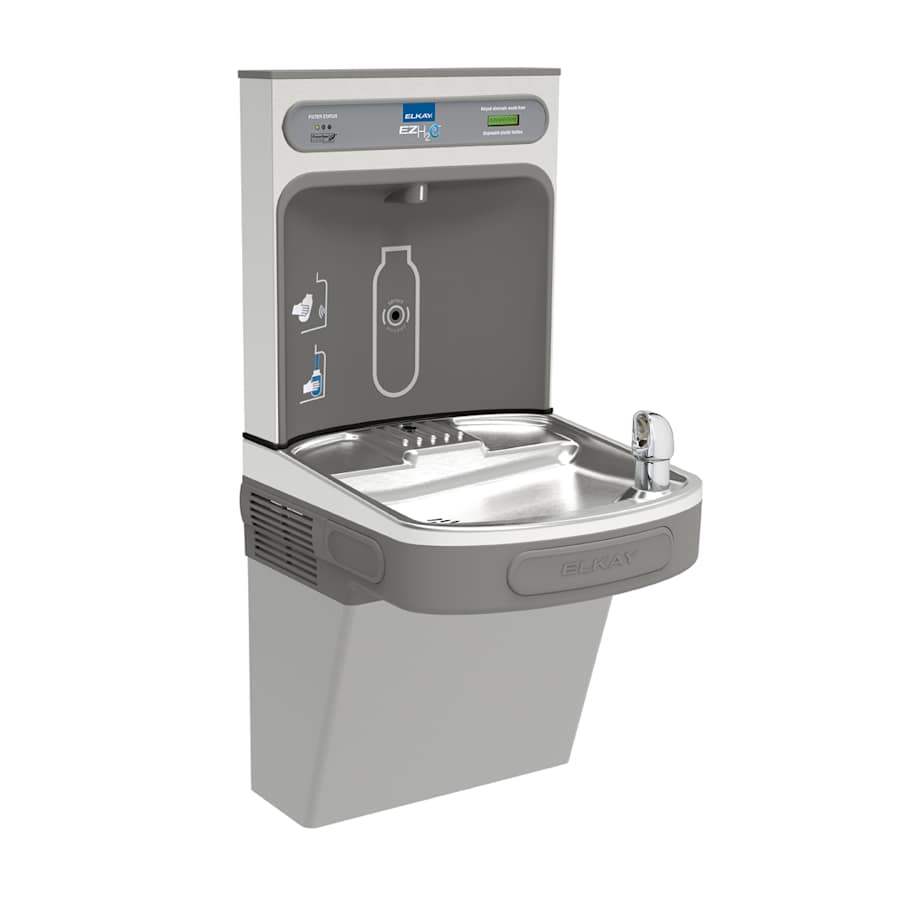

Elkay LZS8WSVRLK Features:
Integral bottle filling station and water fountain in an ADA compliant design
Covered under Elkays 5 year limited warranty for unit’s refrigeration system and 1 year limited warranty for electrical components
High quality finish – will resist rust and corrosion through everyday use
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Silver Ion anti-microbial protection
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
LED light built-in illuminates bottle filler area
Stainless Steel bottle filler wrapper with ABS plastic alcove
Secure mounting frame assembly included
Elkay LZS8WSVRLK Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to getoperational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZS8WSVRLK Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Elkay LZS8WSVRLK Specifications:
Height: 39-1/16″ (measured from lowest rim to top rim of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Fountain Type: Cooler
Control Type: Push Bar
Bottle Filler: Yes
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 1
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.4375 in. |
| Width | 19 in. |
| Product Weight | 71 lbs. |
| Length | 18.375 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Material | ABS, Stainless Steel |
| Insulation Type | Wall Mounted |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Control Type | Bar |
| Energy Efficient | Yes |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 370 |
| Amperage | 5 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
