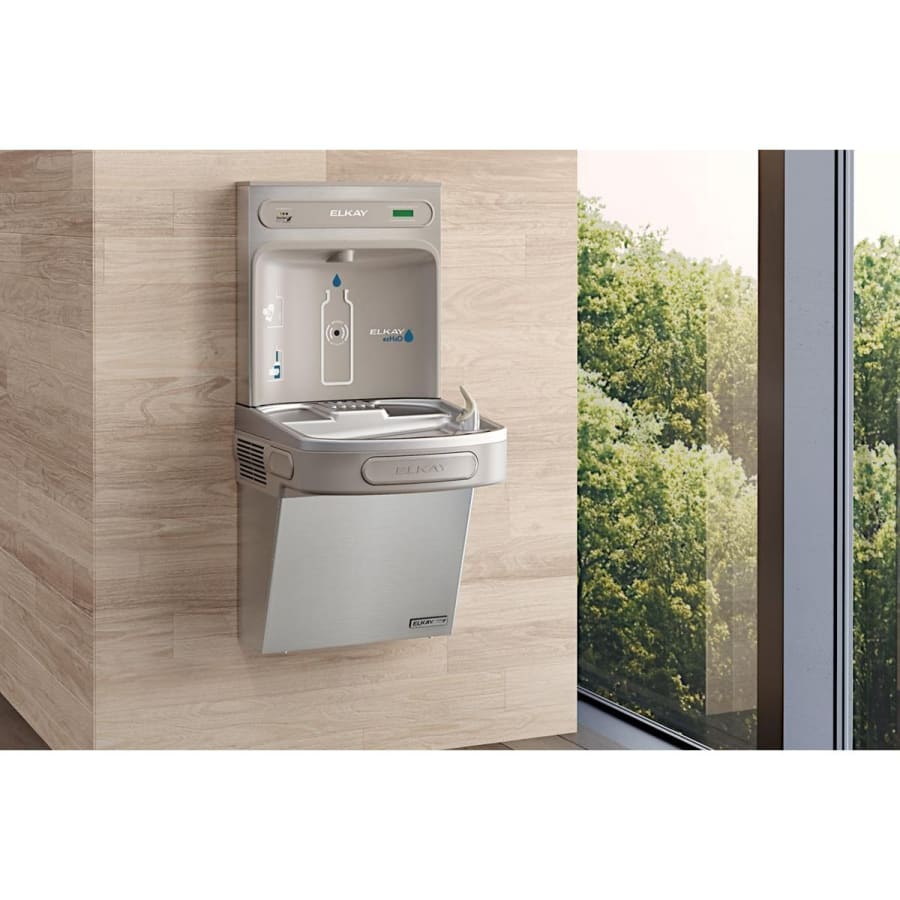

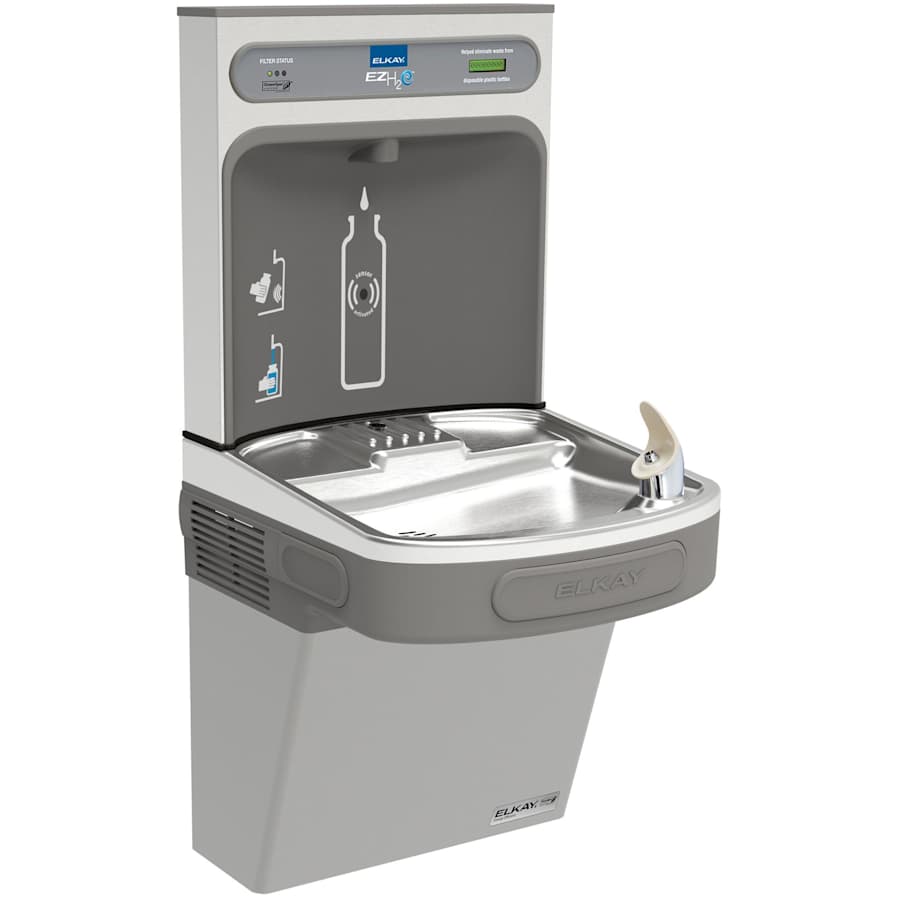

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Elkay LZSG8WSK Features:
Touchless, sensor activation (bottle filler) and push-bar activation (bubbler) designed for easy use
Fill rate is 1.1 GPM
High-performance compressor and insulation reduce energy consumption GreenSpec listed and badged to demonstrate a commitment to sustainability
Visual filter monitor with LED filter status indicator for when filter change is necessary

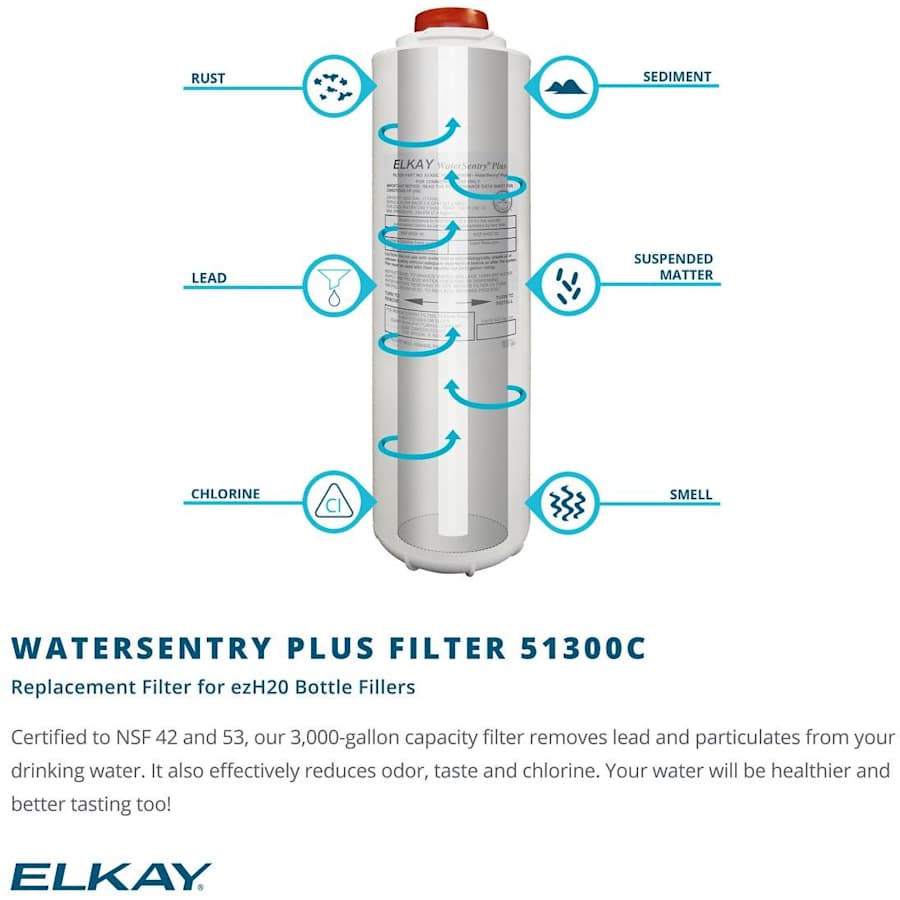

The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
Green Ticker informs user of number of 20 oz plastic water bottles saved from waste
Laminar flow provides clean fill with minimal splash Real drain system eliminates standing water
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Flexi-Guard StreamSaver bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms and reduce water waste
Rated for indoor use
Elkay LZSG8WSK Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Filters: With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Elkay LZSG8WSK Specifications:
Height: 39-1/16″ (measured from lowest rim to top rim of fixture)
Length: 36-3/4″ (measured from most left to most right rim of fixture)
Depth: 19″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Fountain Type: Cooler
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): 0.13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 2
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 39.0625 in. |
| Width | 19 in. |
| Length | 17.875 in. |
| Product Weight | 71 lbs. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Water Pressure (Max) | 105 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Collection | EZH2O |
| Location Rating | Dry Location |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Certifications | CSA, NSF, ANSI, ASME, UL |
| Manufacturer Warranty | 5 Year Limited |
| Outdoor Approved | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Thermostat | Modern |
| Material | ABS, Stainless Steel |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Bar |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Filtered | Yes |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 1 |
| Pet Friendly | No |
| Wattage | 360 |
| Voltage | 115 |
| Amperage | 4.2 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Light Gray Granite |
| Color Tone | Greys |
