Product Features:
Covered under Elkay’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components

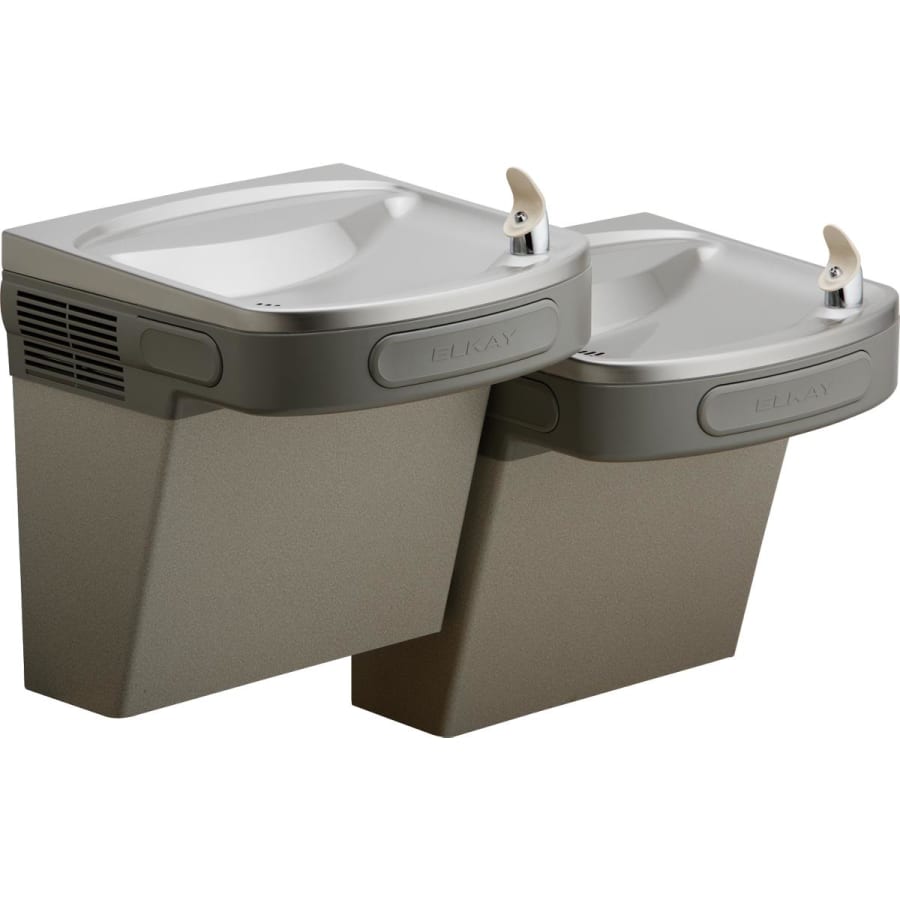

Bi-Level drinking fountain with self contained ADA cooler
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Construction:
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall
Contoured basin offers large area to minimize splashing when in use

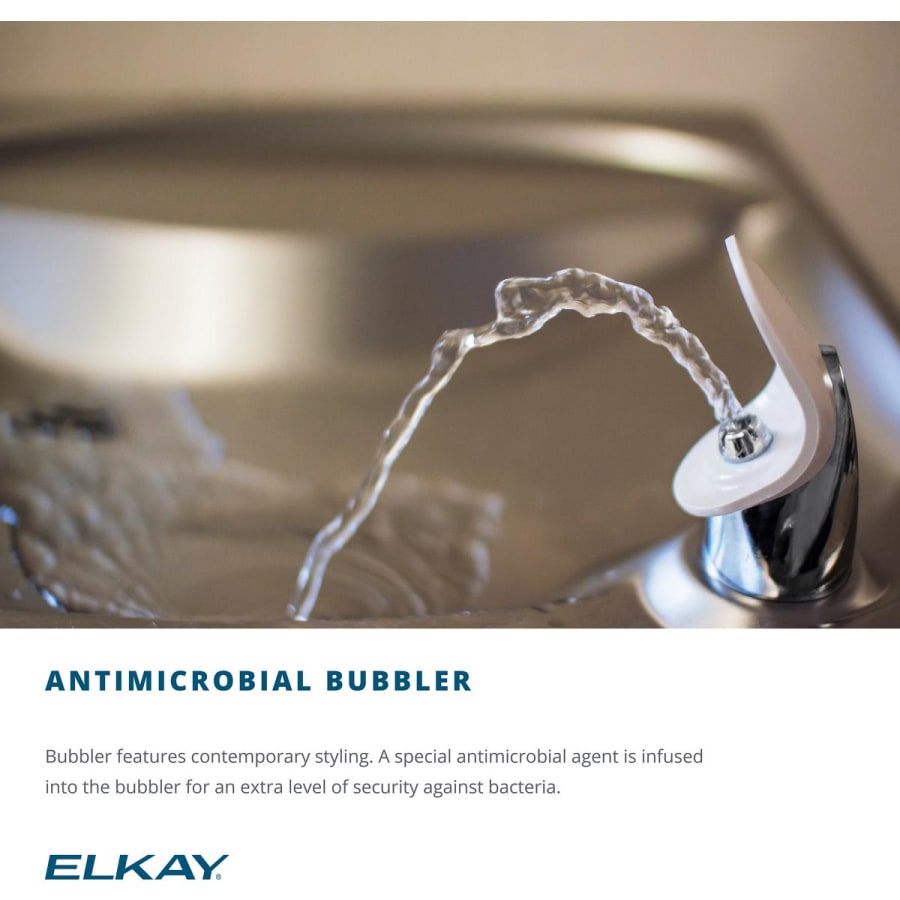

Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Upper Shroud – Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
Lower Shroud – One piece easy to remove and replace. Allows access to internal components from three sides
Product Specifications:
Base Flow Capacity (GPH): 8
Fountain Type: Non-Refrigerated
Shipping Weight: 49
Height: 25-5/16″ (measured from lowest rim to top rim of fixture)
Length: 36-3/4″ (measured from most left to most right rim of fixture)
Depth: 19″ (measured from back to front of fixture)
Glass Filler: No
Vandal Resistant Bubbler: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 25.3125 in. |
| Width | 19 in. |
| Length | 36.75 in. |
| Product Weight | 49 lbs. |
| Flow Rate (GPM) | 0.13 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Bar |
| Filtered | Yes |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | No |
| Freeze Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Bottle Filler Included | No |
| Cooling Unit | No |
| Color | Light Gray Granite |
| Color Tone | Greys |
