About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

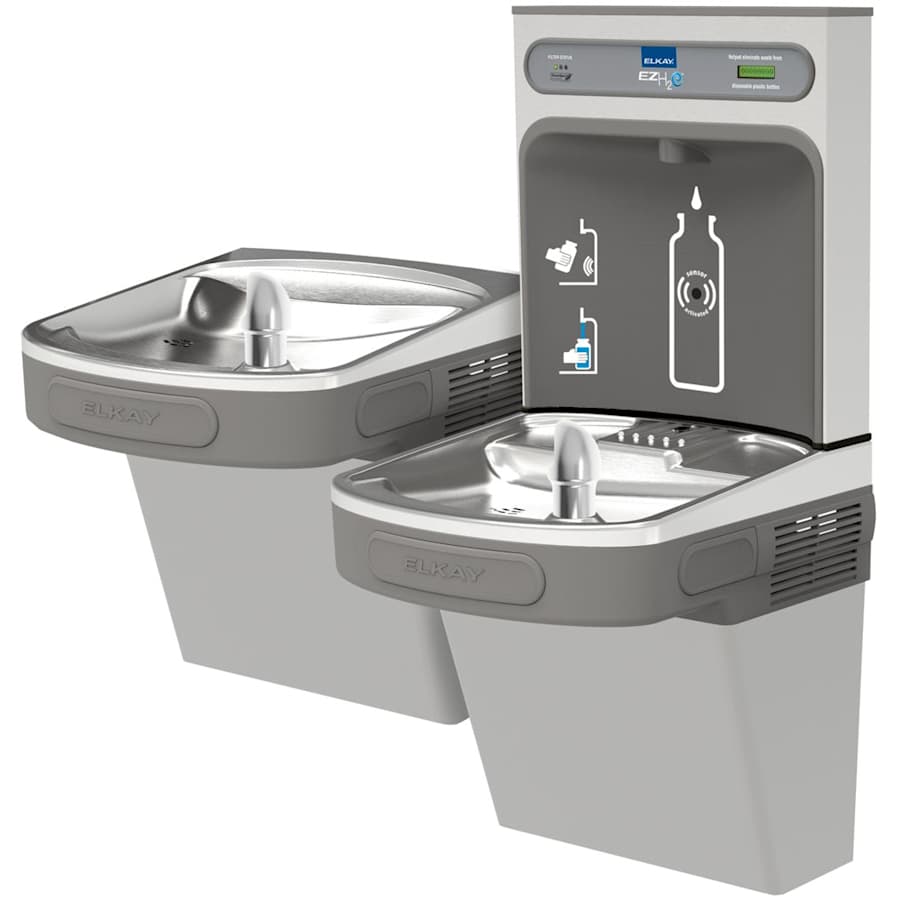

Elkay LZSTLDDWSVRK Features:
Integral bottle filling station and bi-level water fountain in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Elkay’s Versatile engineering allows custom configuration to meet every need. Flexible design allows reversible low-high or high-low installation
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Secure mounting frame assembly included
Elkay LZSTLDDWSVRK Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to replace. Upon replacement, the filter monitor is automatically reset.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZSTLDDWSVRK Specifications:
Height: 39-1/16″ (measured from lowest rim to top rim of fixture)
Length: 36-3//4″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 2
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Product Weight | 66 lbs. |
| Height | 39.0625 in. |
| Width | 19 in. |
| Flow Rate (GPM) | 0.13, 1.5 |
| Length | 36.75 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Cooling Capacity | 0 GPH |
| Insulation Type | Wall Mounted |
| Material | ABS, Stainless Steel |
| Thermostat | Modern |
| Energy Efficient | Yes |
| Control Type | Bar |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Filtered | Yes |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 2 |
| Pet Friendly | No |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Limited |
| Collection | EZH2O |
| Made in America | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| Location Rating | Dry Location |
| ADA | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Outdoor Approved | No |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 15 |
| Frequency | 60 Hertz |
| Amperage | 1 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
| Color | Light Gray Granite |
| Color Tone | Greys |
