About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

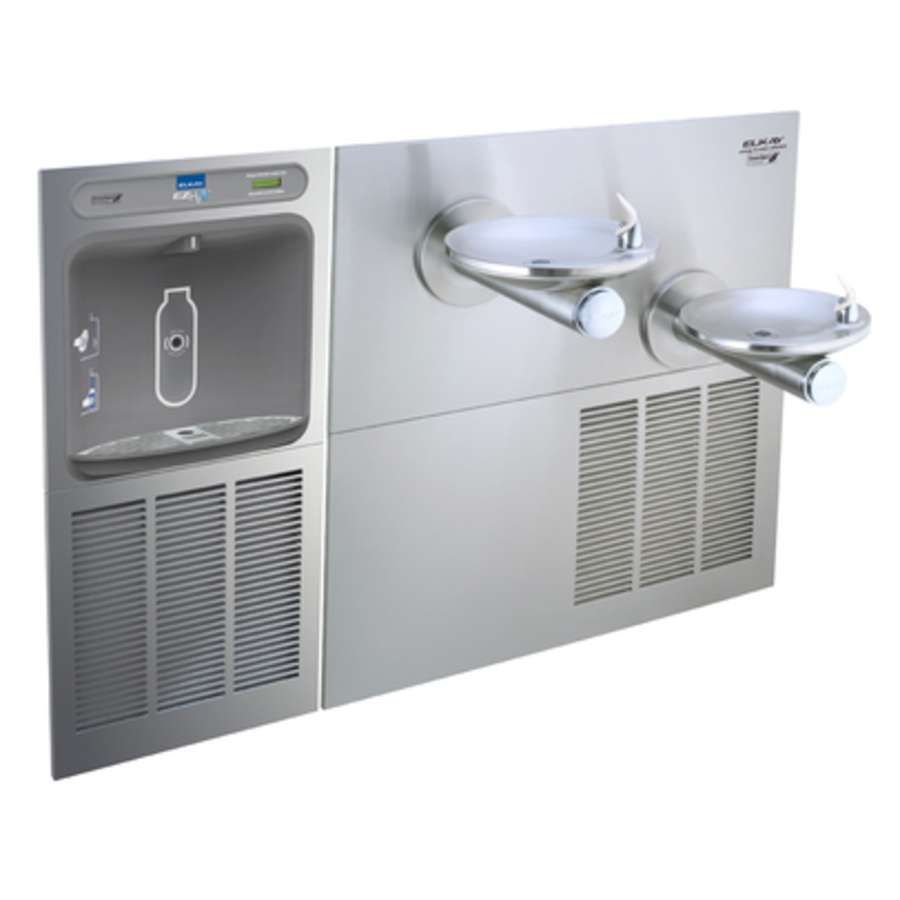

Elkay LZWS-SFGRN28K Features:
Integral bottle filling station and bi-level water fountains in an ADA compliant design
Silver ion anti-microbial protection
Quick fill rate of 1.1 gpm
Visual user interface display includes green ticker counts the quantity of plastic bottles saved from waste
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Covered under Elkays 5 year limited warranty for unit’s refrigeration system and 1 year limited warranty for electrical components
Includes lower hinged panel for easy access and servicing
Secure mounting frame assembly included
Hinged door for easy servicing
Elkay LZWS-SFGRN28K Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to getoperational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZWS-SFGRN28K Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Elkay LZWS-SFGRN28K Specifications:
Height: 40-3/4″ (measured from lowest rim to top rim of fixture)
Length: 58-1/4″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 3
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 40.8125 in. |
| Product Weight | 164 lbs. |
| Width | 19 in. |
| Length | 58.25 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Location Rating | Dry Location |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.19.3 |
| Certifications | NSF, ANSI, ASME, UL |
| Outdoor Approved | No |
| Material | ABS, Stainless Steel |
| Insulation Type | Recessed, Wall Mounted |
| Bubbler Type | FlexiGuard StreamSaver |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 3 |
| Pet Friendly | No |
| Control Type | Bar |
| Vandal Resistant | No |
| Energy Efficient | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Wattage | 370 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
