About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

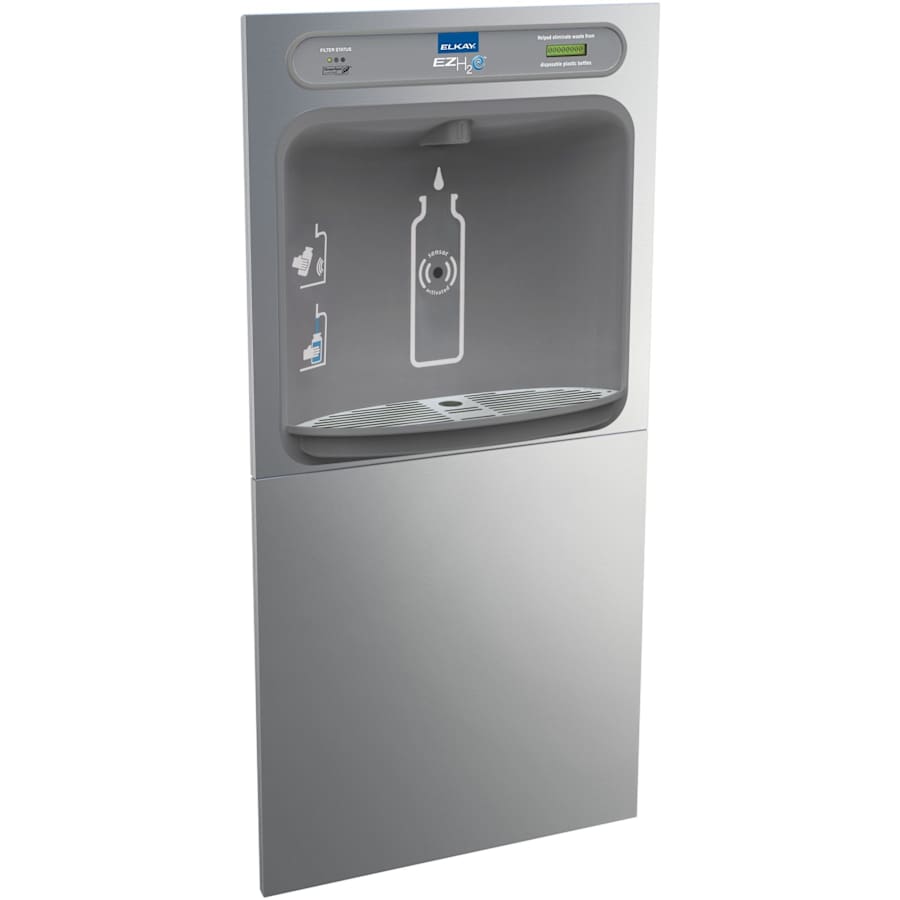

Elkay LZWSDK Features:
Single station bottle filling unit in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Stainless steel bottle filler wrapper with ABS plastic alcove
Secure mounting frame sold separately
Elkay LZWSDK Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to replace. Upon replacement, the filter monitor is automatically reset.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZWSDK Specifications:
Height: 40-13/16″ (lowest rim to top rim of fixture)
Length: 19-3/4″ (most left to most right rim of fixture)
Width: 3-1/2″ (back to front of fixture)
Installation Type: Recessed
Fountain Type: Cooler
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 1
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 40.8125 in. |
| Width | 3.5 in. |
| Length | 19.75 in. |
| Product Weight | 80 lbs. |
| Flow Rate (GPM) | 1.5 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Thermostat | Modern |
| Control Type | Electronic |
| Insulation Type | Recessed |
| Material | ABS, Stainless Steel |
| Energy Efficient | Yes |
| Antimicrobial | Yes |
| Filtered | Yes |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 1 |
| Pet Friendly | No |
| Collection | EZH2O |
| Certifications | NSF, ANSI, ASME, UL |
| Location Rating | Dry Location |
| Manufacturer Warranty | 5 Year Limited |
| Outdoor Approved | No |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Made in America | Yes |
| ASSE Code | A112.19.3 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Wattage | 370 |
| Voltage | 115 |
| Amperage | 1 |
| Frequency | 60 Hertz |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
| Color | Stainless Steel |
