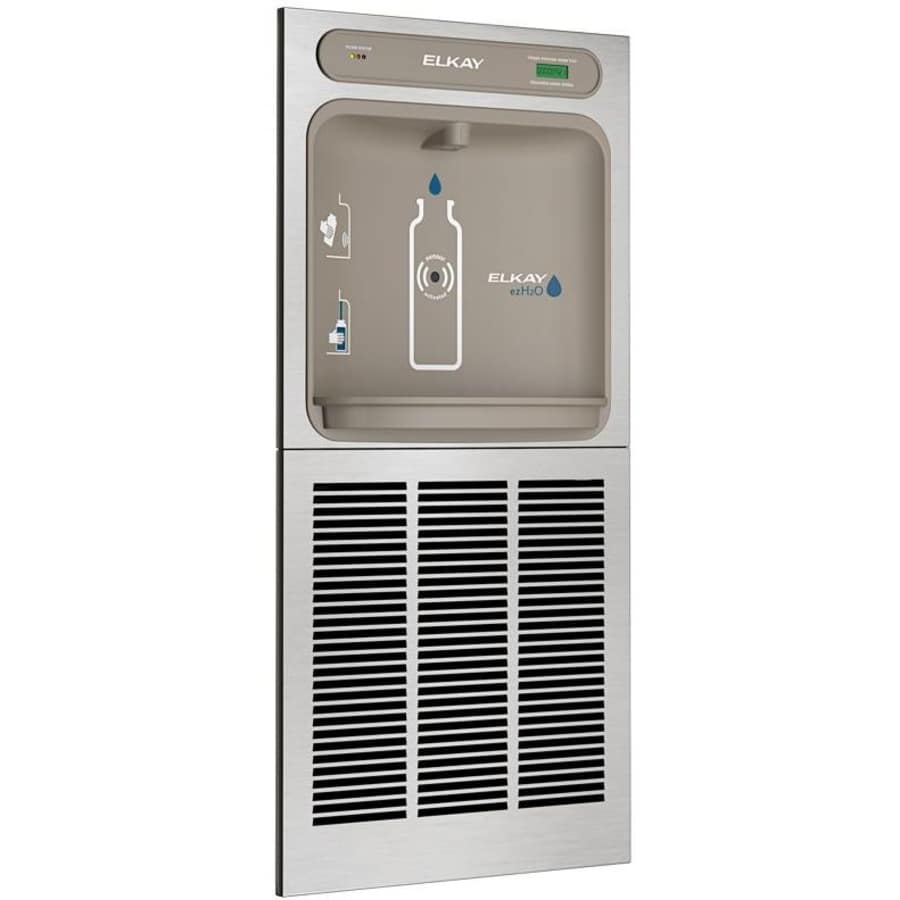

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Elkay LZWSM8K Features:
Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains
Touchless, sensor activation (bottle filler) designed for easy use
Fill rate is 1.1 GPM
Visual filter monitor with LED filter status indicator for when filter change is necessary

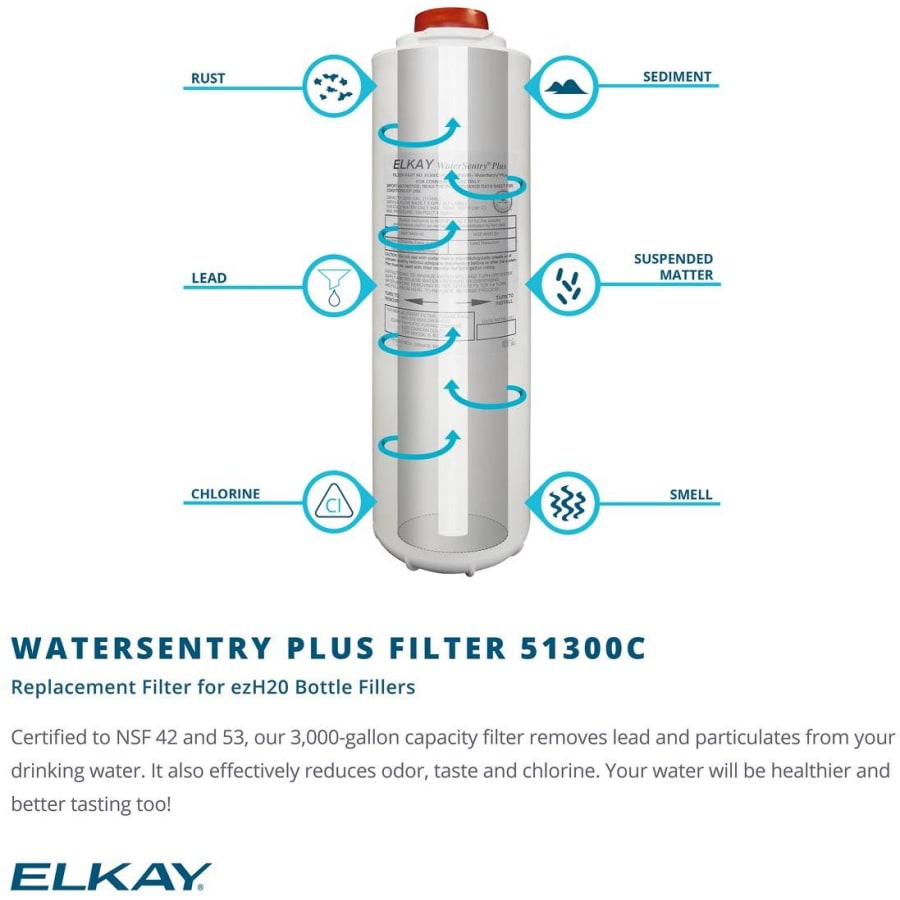

The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste
Laminar flow provides clean fill with minimal splash
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Real drain system eliminates standing water
Rated for indoor use
Elkay LZWSM8K Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Filters: With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.
Elkay LZWSM8K Specifications:
Height: 40-13/16″ (top to bottom of fixture)
Width: 3-1/2″ (front to back of fixture)
Depth: 3-1/2″ (from front to back)
Installation Type: Recessed
Fountain Type: Refrigerated
Hands Free Bottle Operation: Yes
Filtered: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Depth | 3.5 in. |
| Width | 3.5 in. |
| Height | 40.8125 in. |
| Product Weight | 80 lbs. |
| Gauge | 18 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Flow Rate (GPM) | 8 |
| Insulation Type | Recessed |
| Material | ABS, Stainless Steel |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Energy Efficient | Yes |
| Control Type | Electronic |
| Barrier Free | Yes |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Hermetically Sealed Electronics | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| ASSE Code | A112.19.3 |
| Certifications | GreenSpec, NSF, ANSI, ASME, UL |
| Made in America | Yes |
| Location Rating | Dry Location |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Voltage | 115 |
| Wattage | 370 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Electrical Phases | 1 |
| Cooling Unit | Yes |
| Temperature Control | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
